5
Figure 1
Figure 2
• Installation other than as instructed
by M&G DuraVent or the appliance
manufacturer.
Consult your local building codes
before beginning the installation.
OPTIONS
The M&G DuraVent DirectVent Pro
offers a complete line of component
parts for both horizontal and vertical
installations. Many items are offered in
decorative black as well as galvanized
finish. The galvanized pipe and
fittings may be used for concealed
locations such as attics, or spaces
where corrosion is a factor, such as
above the roofline. Decorative black
painted sections are recommended
for use on visible interior runs.
Snorkel Terminations are available for
applications which may require vertical
rise on the building exterior.
PLANNING YOUR
INSTALLATION
There are two basic types of
DirectVent Pro installations. Check the
appliance manufacturer’s installation
instructions to confirm what types
of installations are permitted and
check for any venting restrictions
such as maximum horizontal run, and
minimum or maximum vertical rise.
The two types of installations are:

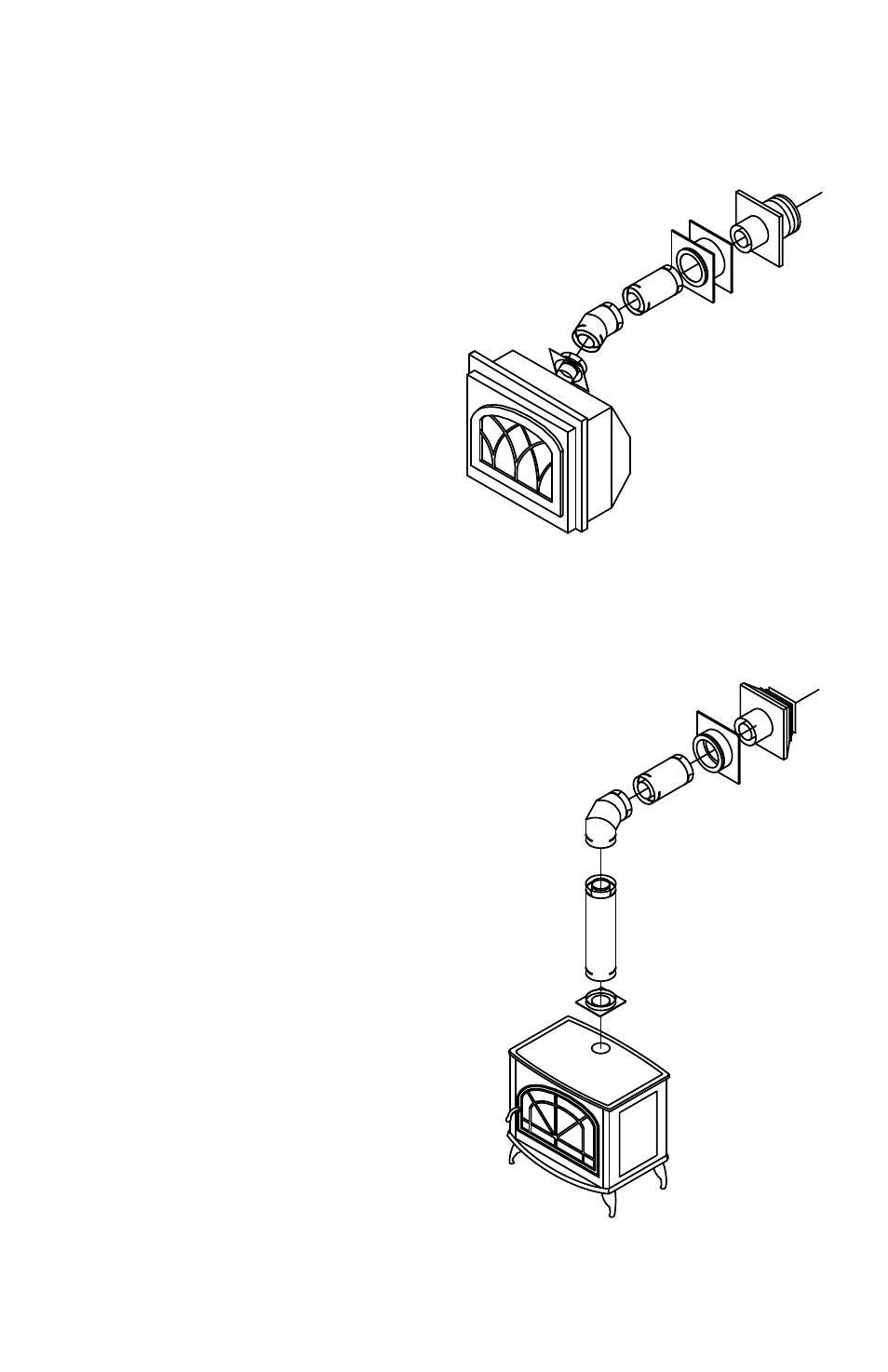

• Horizontal Termination (Figs. 1 and 2)
• Vertical Termination (Fig. 3)
When planning your installation,
it will be necessary to select the
proper length of vent pipe for
your particular requirements. For
horizontal installations, check the
APPLIANCE
ADAPTOR
HORIZONTAL
TERMINATION
ELBOW
ROUND
CAP SHOWN
WALL
THIMBLE
PIPE
SECTION
PIPE
SECTION
PIPE
SECTION
ROUND CEILING
SUPPORT/WALL
THIMBLE COVER
90°
ELBOW
APPLIANCE
ADAPTOR
HORIZONTAL
TERMINATION
SQUARE
CAP SHOWN
