Your TP-125 / TP-126
7
4.2 Your TP-126 UXGA / Audio / Data Line Receiver
The
TP-126 is a high-performance receiver obtaining the computer graphics
signal/audio/control data from the Kramer
TP-125 via UTP cabling at its
CAT 5 line input. The
TP-126 outputs a computer graphics signal, an
unbalanced stereo analog audio signal, a converted digital audio (S/PDIF)
signal, and bi-directional RS-232 control commands and data, to and from the
receiver. The RS-232 interface makes it possible to control virtually any
device over a transmission range of more than 300 feet (more than 100
meters) over UTP cabling. In addition, the
TP-126 features:
Level and EQ. control for the UXGA signals
The capability to change the polarity of decoding H and V Sync
24 bit 48kHz S/PDIF digital audio that supplies the highest quality audio
12V DC power
Figure 3 and Table 3 define the
TP-126 UXGA / Audio / Data Line Receiver:

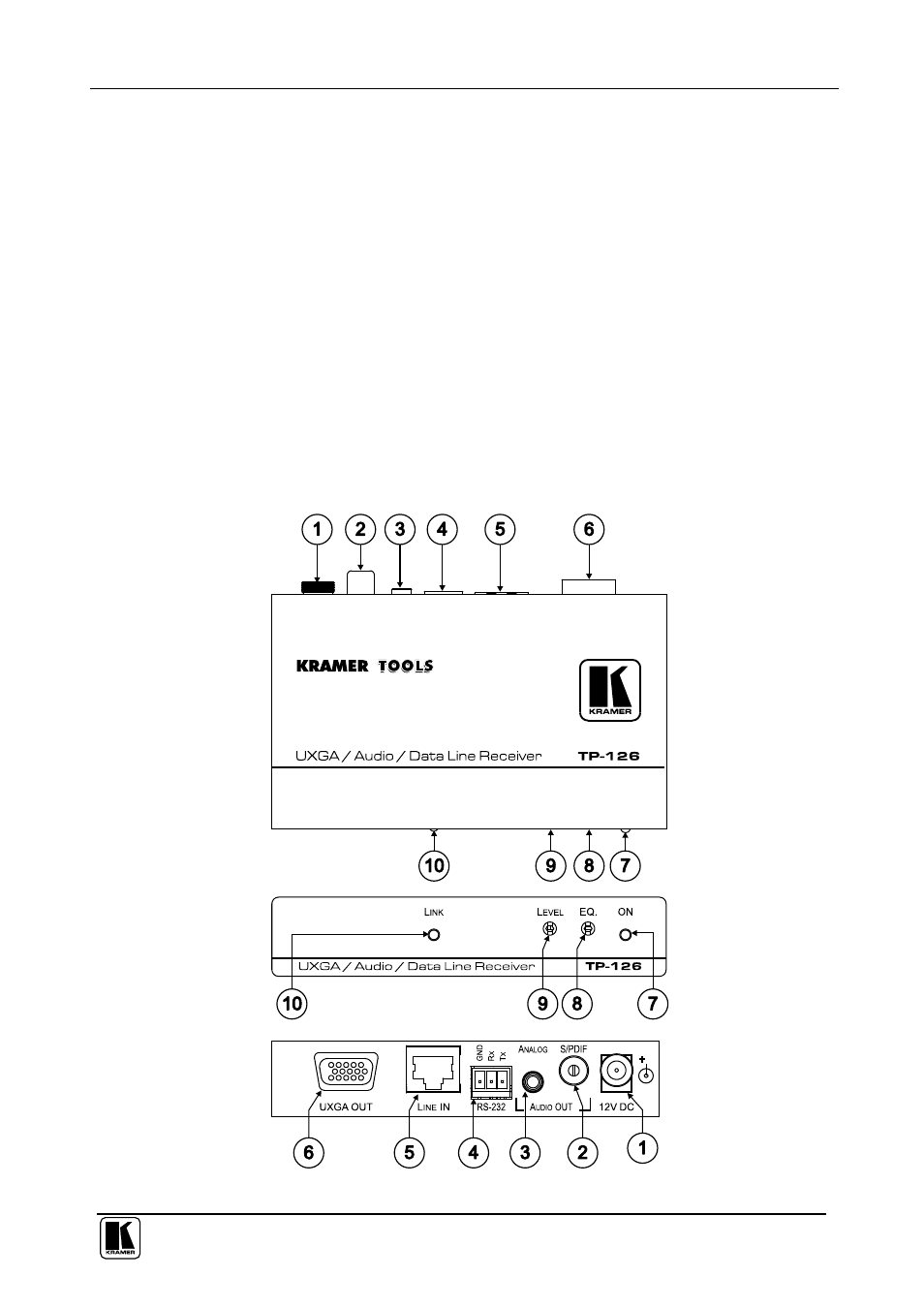

Figure 3: TP-126 UXGA / Audio / Data Line Receiver (Top, Front, and Rear)
