6 PT-571HDCP/PT-572HDCP+ - Defining the PT-571HDCP DVI Line Transmitter
4 Defining the PT-571HDCP DVI Line
Transmitter
The Kramer Pico TOOLS PT-571HDCP DVI Line Transmitter receives a DVI
signal, encodes it, and transmits it over a CAT 5 cable to the PT-572HDCP+. The
PT-571HDCP has:

A DVI input connector

An RJ-45 CAT 5 output connector

One power status LED

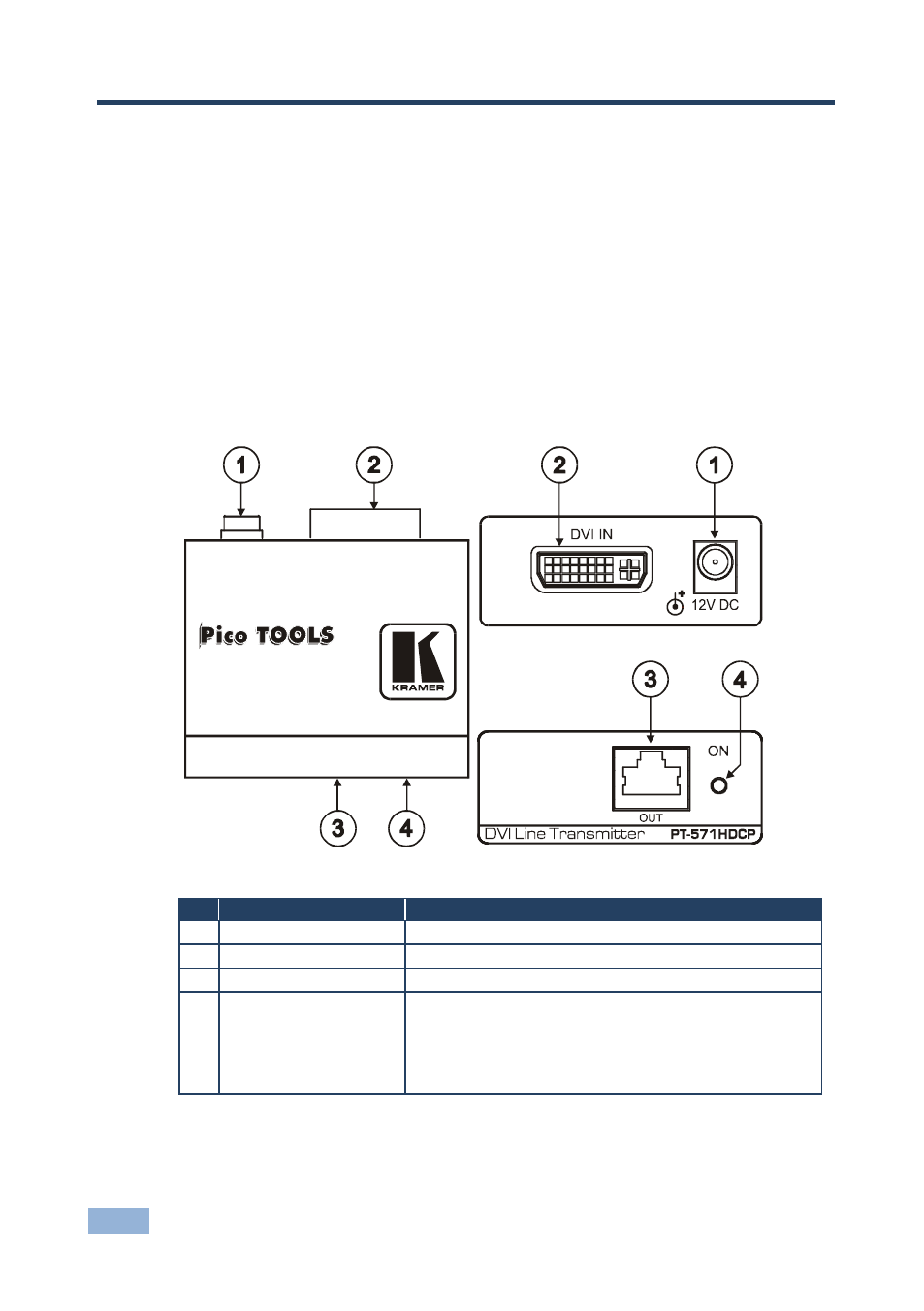

Figure 1: PT-571HDCP DVI Line Transmitter
# Feature Function
1 12V DC +12V DC connector for powering the unit
2 DVI IN Connector Connect to the DVI source
3 OUT RJ-45 Connector Connect to the IN RJ-45 connector on the PT-572HDCP+
4 ON LED Lights only when the machine is powered (whether directly
from the power adapter or via the PT-572HDCP+) and an
input is connected
If no input is connected the unit invokes the power save
mode automatically turning off the power
