Kramer Electronics PT-2H User Manual
The kramer pt-2h hdmi extender, Specifications

The Kramer PT-2H HDMI Extender
Thanks for purchasing your Kramer PT-2H, an HDMI
EXTENDER, which is ideal for multi-media and home
cinema applications. It is a user-friendly, easy to
install, small matchbox-sized box that extends the
HDMI transmission length by regenerating the HDMI
signal before it sends the output to the HDMI display
or projector. It lets you extend the HDMI cable
distance between the HDMI player and HDMI TV set.
By placing your PT-2H near the display, it removes the digital noise (sparkles) in your picture
that may result from using a long HDMI cable. In addition, the PT-2H:
•
Provides a longer HDMI extension. The PT-2H can extend the maximum cable length to
up to 30 meters (98 feet)
•
Maintains an HDMI single link video resolution of 1080p
•
Supports the DDWG standard for HDMI compliant displays
•
Is HDCP Compliant
If a DVI device does not seem to function, verify that the device is HDCP compliant. A
non-HDCP compliant DVI device will not work with a signal that is HDCP encoded.
SET UP

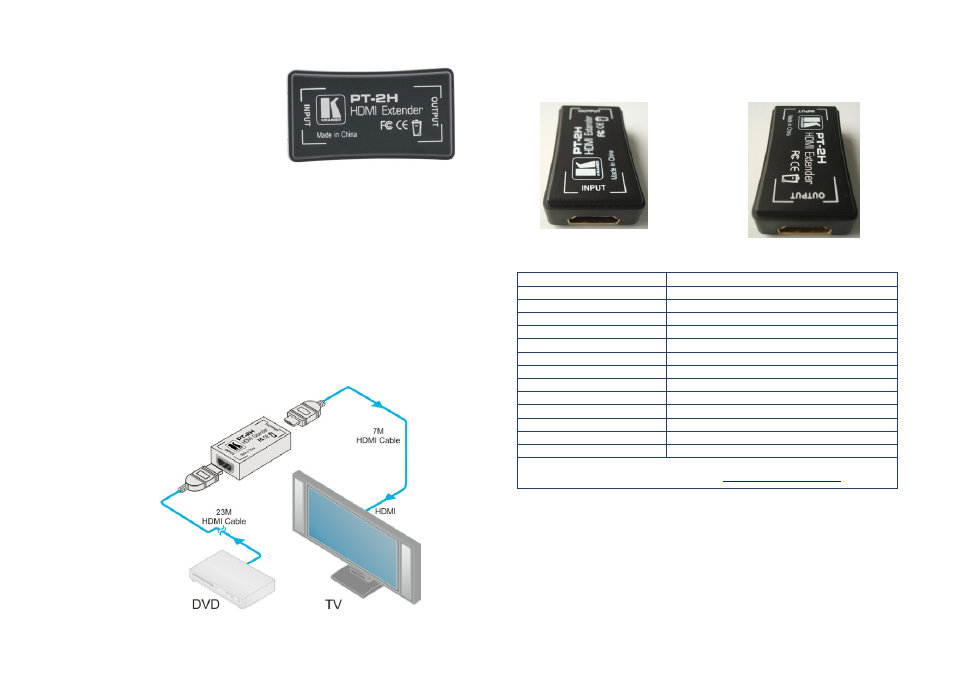

ILLUSTRATION
The PT-2H input is connected via a long
male-to-male HDMI cable (not provided) to
an HDMI source, such as a DVD player or a
satellite set top box.
The PT-2H output is connected via a second
male-to-male HDMI cable (not provided) to an HDMI
acceptor, such as a projector or plasma.
PT-2H INPUT CONNECTOR:
PT-2H OUTPUT CONNECTOR:
1B
SPECIFICATIONS
INPUT VIDEO SIGNAL:
HDMI/DVI-TMDS
MAXIMUM SINGLE LINK RANGE:
1920x1200, 1080p
OUTPUT VIDEO:
HDMI, HDCP1.0/1.1
HDMI INPUT/OUTPUT CONNECTOR:
Type A 19-pin
PC VIDEO FORMAT:
All resolutions from VGA up to UXGA
DTV/HDTV VIDEO FORMAT:
480i, 576i, 480p, 576p, 720p, 1080i, and 1080p
HDMI COMPLIANCE:
HDMI
VIDEO AMPLIFIER BANDWIDTH:
1.65Gbps
OPERATING TEMPERATURE:
0ºC to +70ºC (32ºF to 158ºF)
OPERATING HUMIDITY:
10% to 85% RH (no condensation)
STORAGE TEMPERATURE:
-10ºC to +80ºC (14ºF to 176ºF)
STORAGE HUMIDITY:
5% to 90% RH (no condensation)
WEIGHT:
0.017kg (0.16lbs) approx.
DIMENSIONS:
2.7cm x 4.9cm x 1.5cm (1.1” x 2.0” x 0.6”) W, D, H
Specifications are subject to change without notice
For the most updated resolution list, go to our Web sit
