Using Your RGBHV to Component Transcoder
KRAMER ELECTRONICS, LTD.
4
5.1 Converting an RGB Source
You can convert an RGB signal to Y, B-Y, R-Y, via a FC-14 RGBHV to
Component Transcoder, as the example in Figure 2 illustrates, as follows:
1. Connect the RGB video camera to the R, G and B BNC inputs.
2. Connect the Y, B-Y, and R-Y outputs to the BETACAM VCR.
3. Connect the 12V DC power adapter to the power socket and connect the
adapter to the mains electricity.
4. Press the RGsB input format selector.
The camera’s RGB signal converts and outputs to the BETACAM VCR.
5. Switch on the power.
The Power switch illuminates.

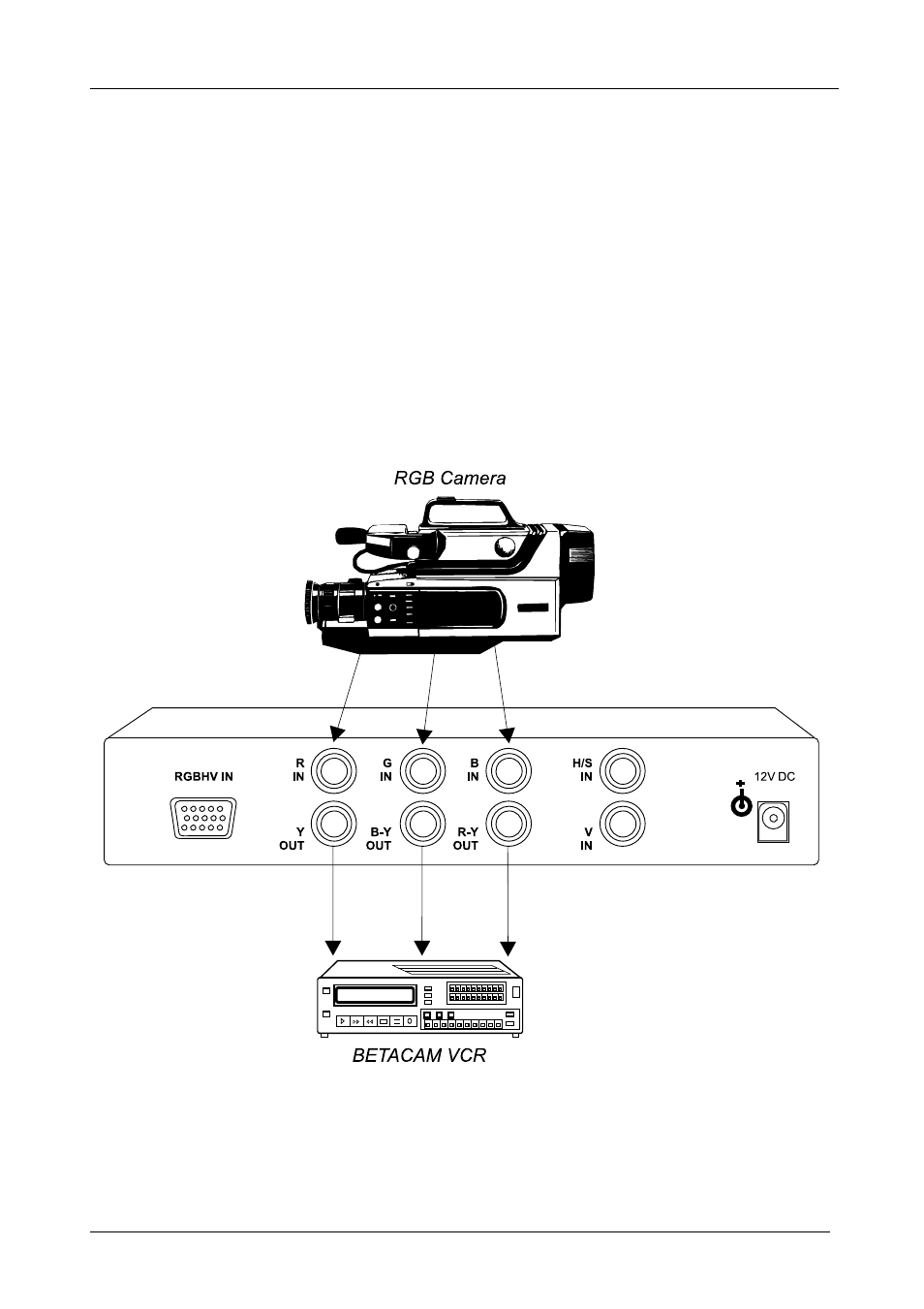

Figure 2: Converting from an RGB Camera to a BETACAM VCR
