Your Audio Converters
7
4.1.1 The 6410N Underside
Figure 3 and Table 3 define the 6410N underside:

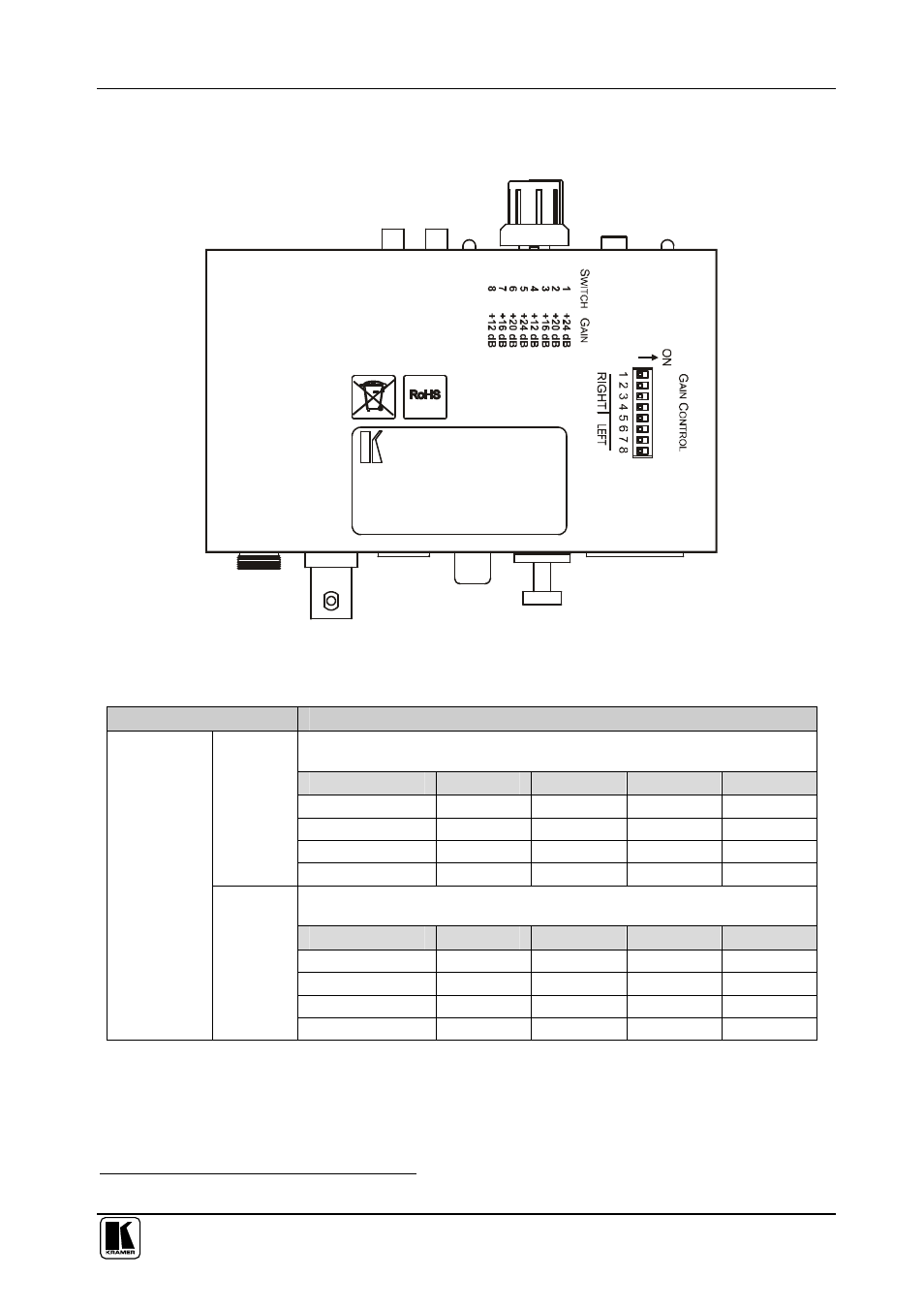

Figure 3: 6410N Digital to Analog Audio Converter Underside
Table 3: 6410N Digital to Analog Audio Converter Underside Features
Feature Function
Set the dipswitches as follows to determine the RIGHT channel
conversion ratio 1 (GAIN CONTROL):
Gain Control: DIP 1 DIP 2 DIP 3 DIP 4
+24dB ON OFF OFF OFF
+20dB OFF ON OFF OFF
+16dB OFF OFF ON OFF
RIGHT
+12dB OFF OFF OFF ON
Set the dipswitches as follows to determine the LEFT channel conversion
ratio 1 (GAIN CONTROL):
Gain Control: DIP 5 DIP 6 DIP 7 DIP 8
+24dB ON OFF OFF OFF
+20dB OFF ON OFF OFF
+16dB OFF OFF ON OFF
GAIN
CONTROL
Dipswitches
LEFT
+12dB OFF OFF OFF ON
1 From digital to analog
