Defining the RC-74DL Master Room Controller
4
4 Defining the RC-74DL Master Room Controller
Figure 1 and Table 1 define the front panel of the RC-74DL.

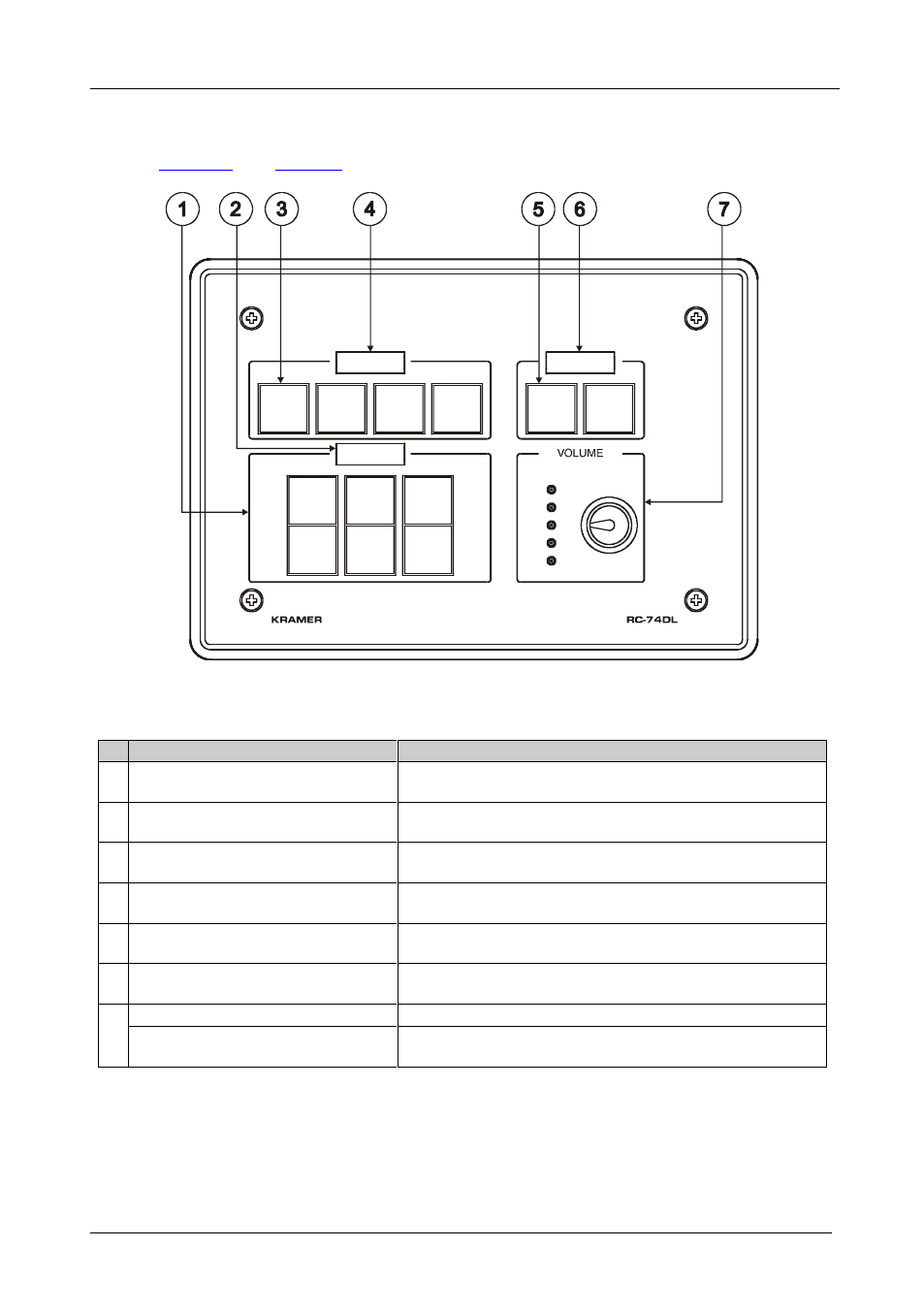

Figure 1: RC-74DL Master Room Controller Front Panel
Table 1: RC-74DL Master Room Controller Front Panel Features
# Feature Function
1 6 Configurable Button Switches Function is programmed by the K-Config Configuration
software
2 LCD Label Displays up to 8 characters at once (set by the K-Config
configuration software)
3 4 Configurable Button Switches Function is programmed by the K-Config Configuration
software
4 LCD Label Displays up to 8 characters at once (set by the K-Config
configuration software)
5 2 Configurable Button Switches Function is programmed by the K-Config Configuration
software
6 LCD Label Displays up to 8 characters at once (set by the K-Config
configuration software)
7 Rotary switch up/down LED indicator Indicates the direction of travel of the rotary switch
VOLUME Rotary Switch Function is programmed by the K-Config Configuration
software
