8 RC-54DL - Operating the RC-54DL
6 Operating the RC-54DL
Since the auxiliary panel is used as a remote controller for Master Room Controllers
via the proprietary communication channel K-NET (as illustrated in
Figure 5 ):
• It requires a K-NET connection to a Master Room controller (for example, the
Kramer
RC-74DL Master Room Controller)
• The auxiliary panel can be programmed only via the Master Room controller
For instructions on using the software, see the K-Config Software Guide available
from our Web site. Once configured, use the front panel buttons as a remote
controller for the connected master room controllers.

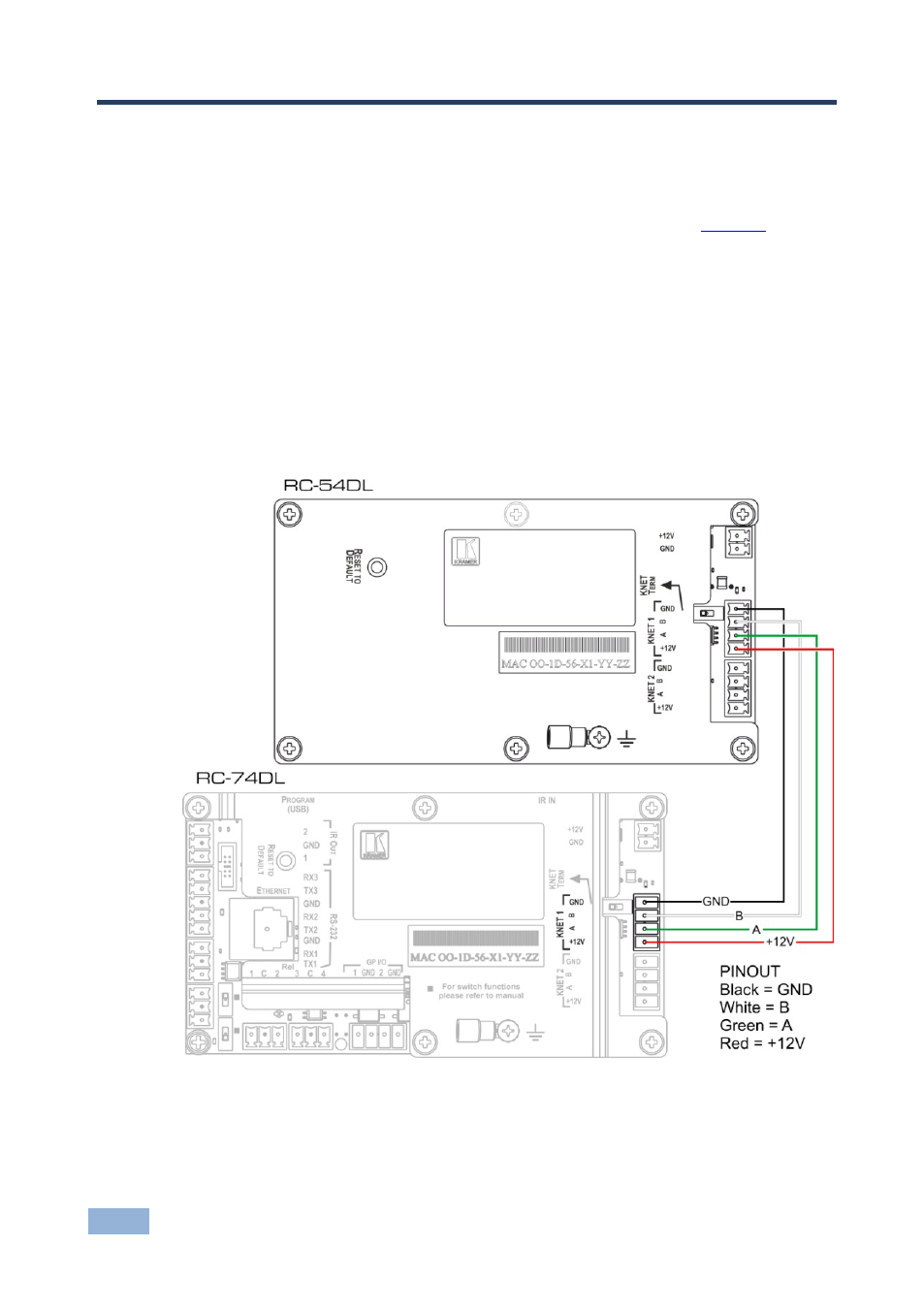

Figure 5: RC-54DL to RC-74DL Pinout Connection
