Using the FC-29 IR Learner
7
5.2 Testing the IR Commands
To test the learned IR commands 1 , as illustrated in the example in Figure 7, do
the following:
1. Connect the PC to the
FC-29 via the USB connector.
2. Connect the IR OUT 3.5mm mini jack to the tested machine 2 via the IR emitter
cable (see Figure 6).
IR Emitter
Figure 6: Connecting the IR Emitter
3. In the Command Area, click the Connect to IR Capture Device button (see
Figure 4), select the port and click OK.
4. Click the IR-Out Testing button (see Figure 4).
The SIGNAL LED lights.

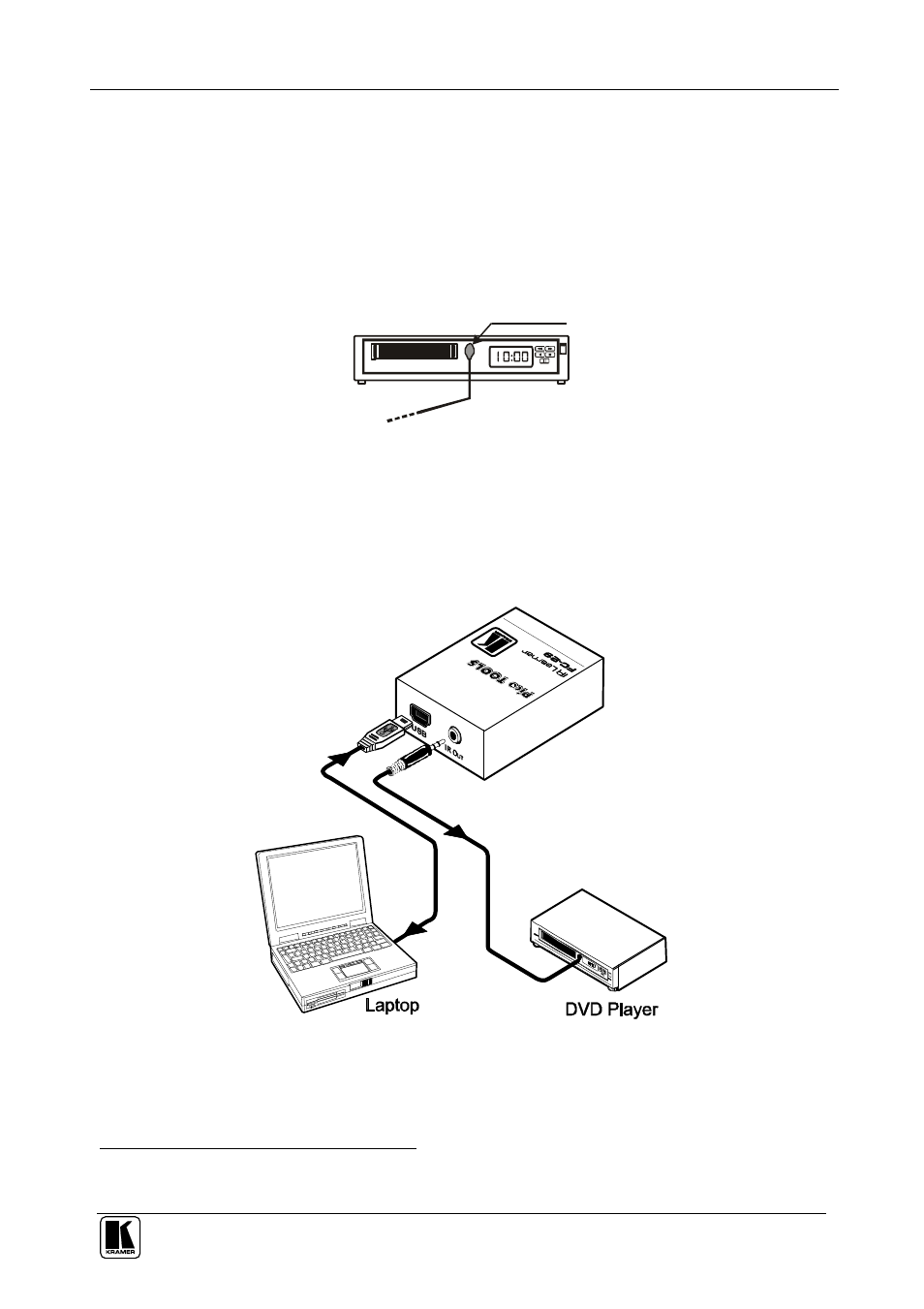

Figure 7: Testing the IR Commands on the PC via the FC-29
1 For example, from a Kramer machine or a peripheral machine (like a DVD player)
2 Stick the IR emitter to the IR receiver window (usually located on the front panel of the device)
