Kramer Electronics FC-29 User Manual
Page 8
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Using the FC-29 IR Learner
6

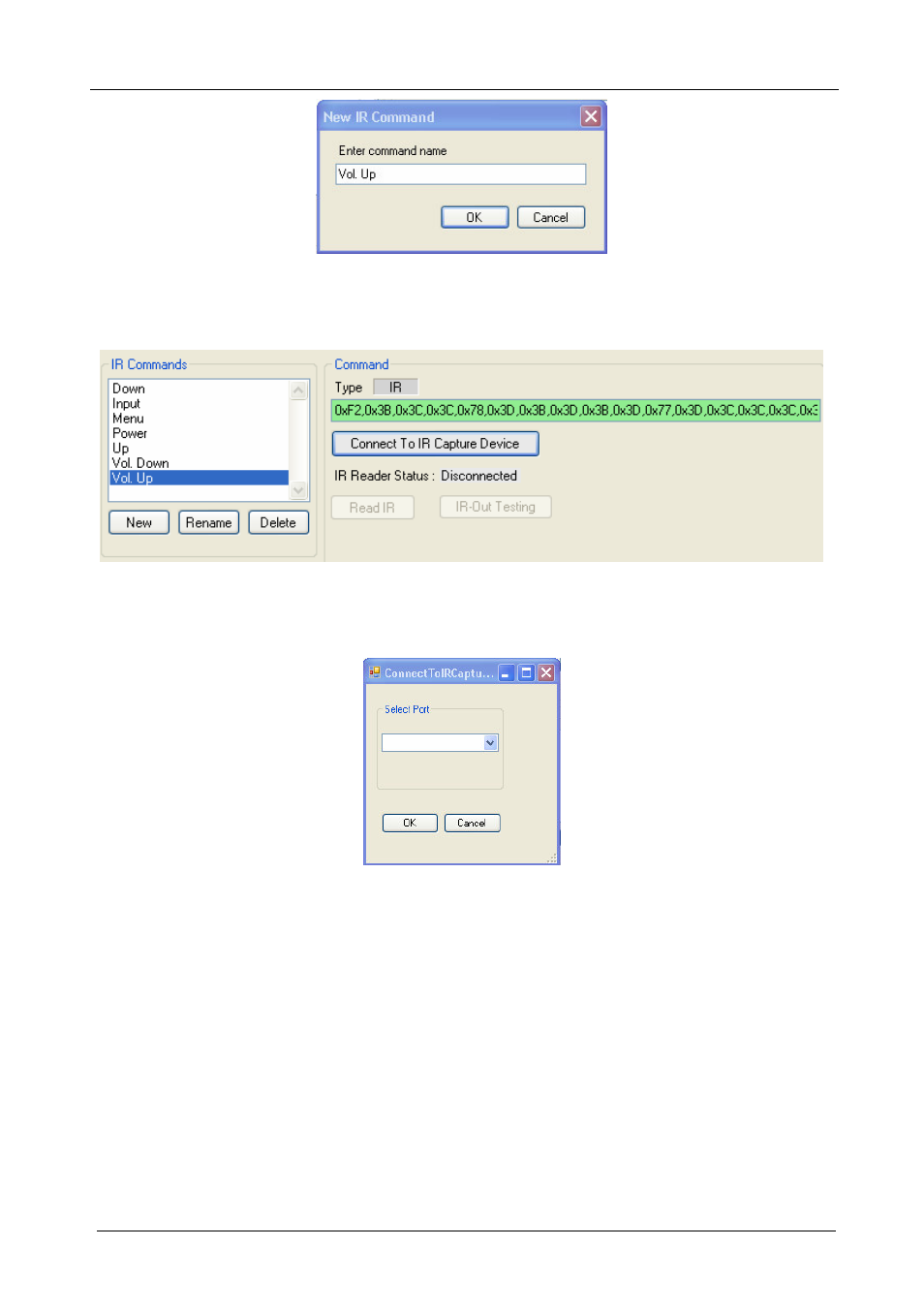

Figure 3: New IR Command Window
7. In the Command area, click the Connect to IR Capture Device button:
Figure 4: IR Command Area Window
8. Select the port and click OK:
Figure 5: Connect to IR Capture Device Window
9. Click the Read IR button (see Figure 4) to read the command.
Wait for about 2 seconds for the following message to appear in the command
area:
“Ready for reading IR command. Please send IR command to the device”.
10. Press the appropriate key on the remote control transmitter.
The command area displays the following message:
“IR command reading”.
The IR command appears, as illustrated in Figure 4.
