4.3 Your VP-400NK 1:4 High Resolution XGA DA

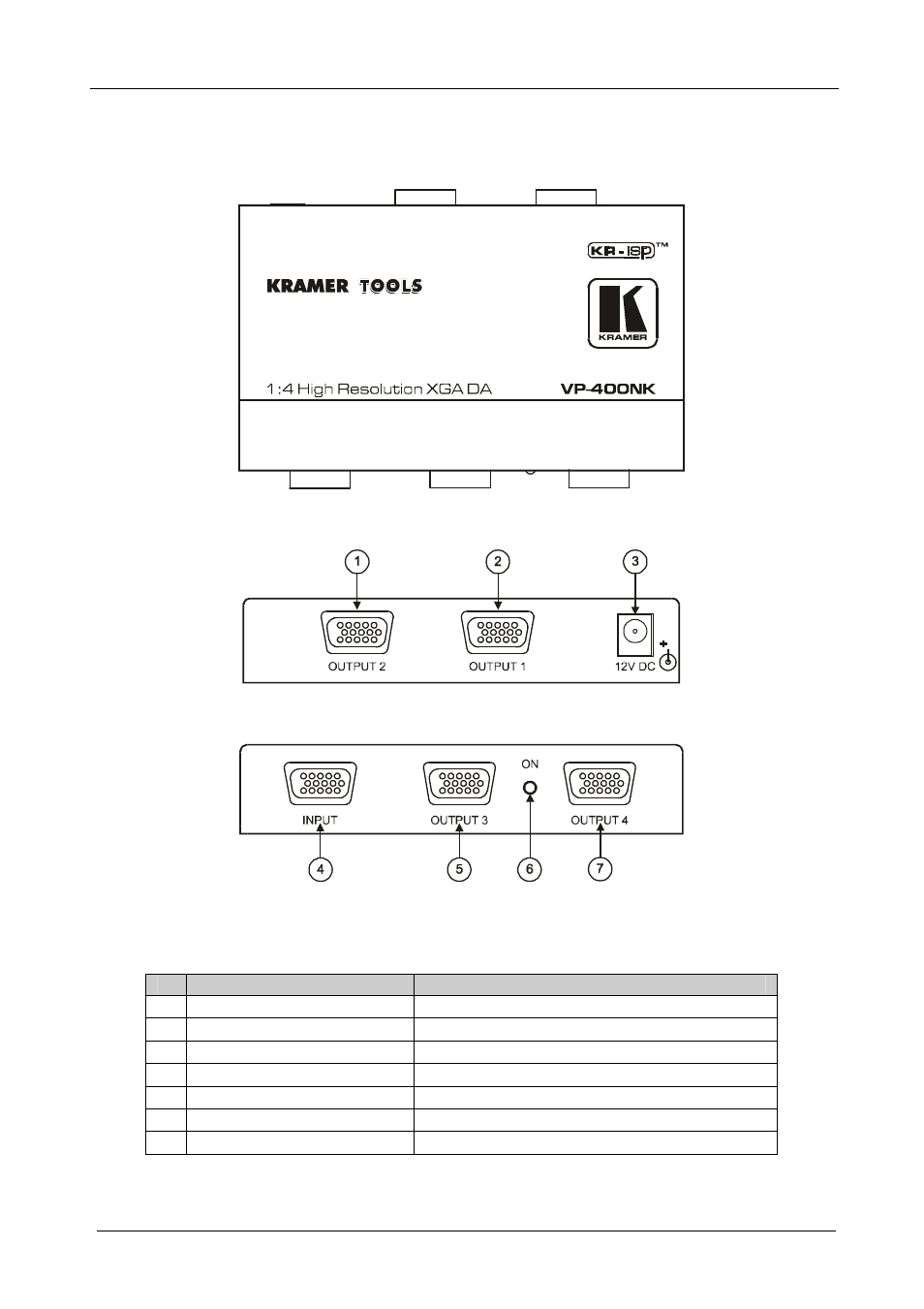

Figure 7, Figure 8, Figure 9 and Table 3 define the VP-400NK:
Figure 7: VP-400NK 1:4 High Resolution XGA DA
Figure 8: VP-400NK (Top Side Panel)
Figure 9: VP-400NK (Lower Side Panel)
Table 3: VP-400NK 1:4 High Resolution XGA DA Features
# Feature Function
1 OUTPUT 2 HD15F Connector Connect to the computer graphics acceptor 2
2 OUTPUT 1 HD15F Connector Connect to the computer graphics acceptor 1
3 12V DC +12V DC connector for powering the unit
4 INPUT HD15F Connector Connect to the computer graphics source
5 OUTPUT 3 HD15F Connector Connect to the computer graphics acceptor 3
6 ON LED Illuminates when receiving power
7 OUTPUT 4 HD15F Connector Connect to the computer graphics acceptor 4
