Your High Resolution XGA DA
5
4.2 Your VP-300NK 1:3 High Resolution XGA DA

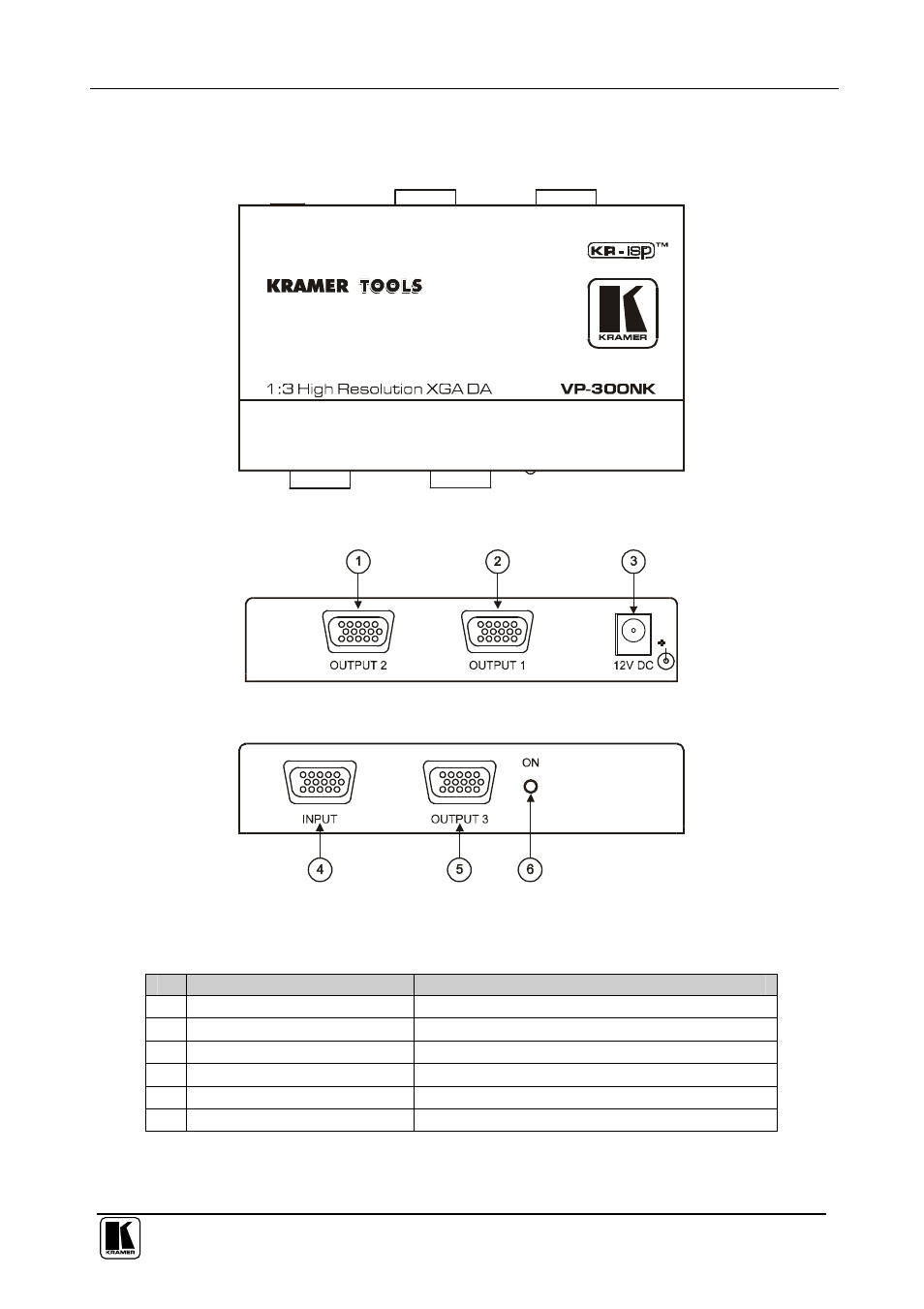

Figure 4, Figure 5, Figure 6 and Table 2 define the VP-300NK:
Figure 4: VP-300NK 1:3 High Resolution XGA DA
Figure 5: VP-300NK (Top Side Panel)
Figure 6: VP-300NK (Lower Side Panel)
Table 2: VP-300NK 1:3 High Resolution XGA DA Features
# Feature Function
1 OUTPUT 2 HD15F Connector Connect to the computer graphics acceptor 2
2 OUTPUT 1 HD15F Connector Connect to the computer graphics acceptor 1
3 12V DC +12V DC connector for powering the unit
4 INPUT HD15F Connector Connect to the computer graphics source
5 OUTPUT 3 HD15F Connector Connect to the computer graphics acceptor 3
6 ON LED Illuminates when receiving power
