Technical Specifications
KRAMER ELECTRONICS, LTD.
4

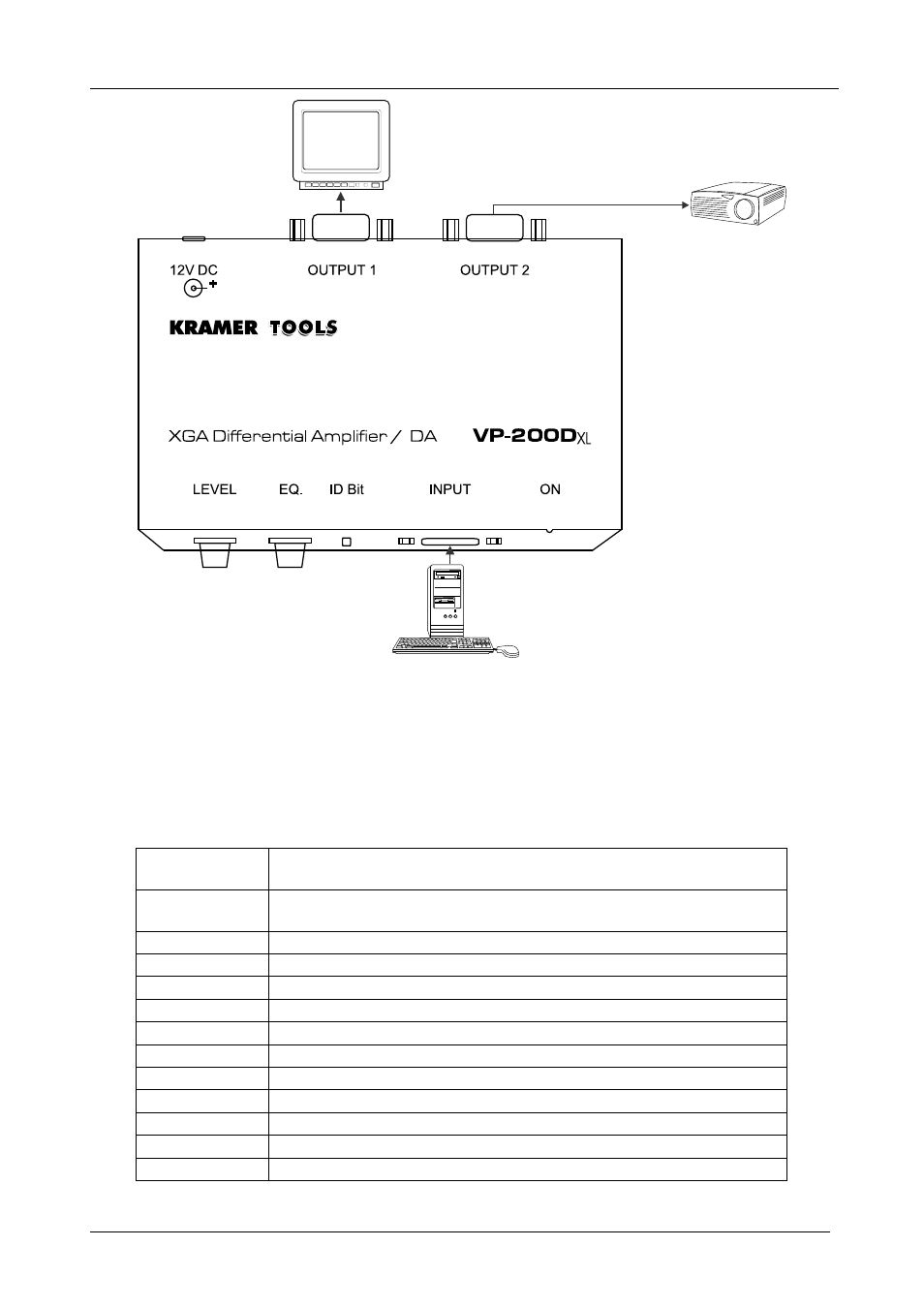

Figure 2: Connecting the VP-200Dxl XGA Differential Amplifier / DA
5 Technical Specifications
Table 2 includes the technical specifications:
Table 2: Technical Specifications of the VP-200Dxl XGA Differential Amplifier / DA
Input: Analog red, green, blue signals - 0.7 Vpp / 75 , H & V sync, TTL level, on
HD15F connector
Outputs: 2 analog red, green, blue signals - 0.7 Vpp / 75 , H & V syncs, TTL level,
on HD15F connectors
Video Bandwidth: 400 MHz -3dB
Diff. Gain:
0.17%
Diff. Phase: 0.1 Deg.
Coupling: DC
K-Factor: <0.05%
S/N Ratio: 71.5 dB
Controls: Level: -1.1 to +6dB, EQ.: 0 to +14.5dB
Power Source: 12 VDC, 150 mA
Dimensions: 12cm x 7.5cm x 2.5cm (4.7" x 2.95" x 0.98"), W, D, H
Weight: 0.3 kg. (0.66 lbs.) approx.
Accessories: Power supply, mounting bracket
