Your XGA Differential Amplifier / DA
KRAMER ELECTRONICS, LTD.
2
differential line amplifier / distributor for VGA/XGA signals that accepts one
input, provides correct buffering and isolation, and then distributes the signal
to 2 identical outputs.
In particular, the
VP-200Dxl XGA Differential Amplifier / DA includes:
High-density 15 pin D connectors
Video bandwidth of 400 MHz, ensuring that it remains transparent even
at highest resolution UXGA modes (1600x1200)
An output level rotary control and a cable equalization rotary control
Special differential amplifying circuitry, which eliminates noise and hum
problems commonly found in long VGA/XGA lines
ID Bit control
Achieving the best performance means:
Connecting only good quality connection cables, thus avoiding
interference, deterioration in signal quality due to poor matching, and elevated
noise levels (often associated with low quality cables)
Avoiding interference from neighboring electrical appliances that may
adversely influence signal quality and positioning your VP-200Dxl unit in a
location free from moisture and away from excessive sunlight and dust
4 Your XGA Differential Amplifier / DA
Figure 1 and Table 1 define the VP-200Dxl XGA Differential Amplifier / DA:

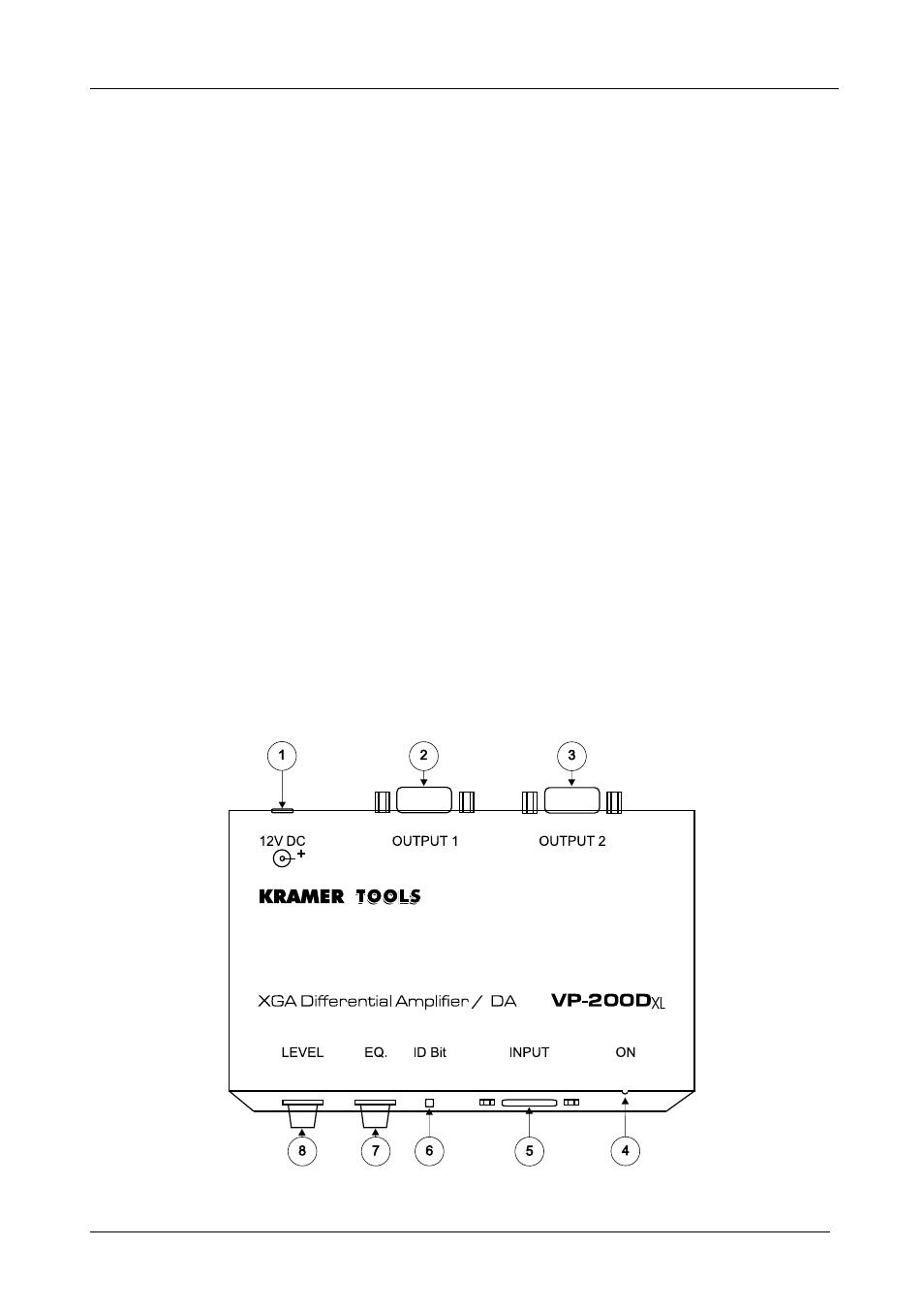

Figure 1: VP-200Dxl XGA Differential Amplifier / DA
