Your VP-103 XGA Line Amp/Converter
3
4 Your VP-103 XGA Line Amp/Converter
Figure 1and Table 1 define the VP-103 XGA Line Amp/Converter:

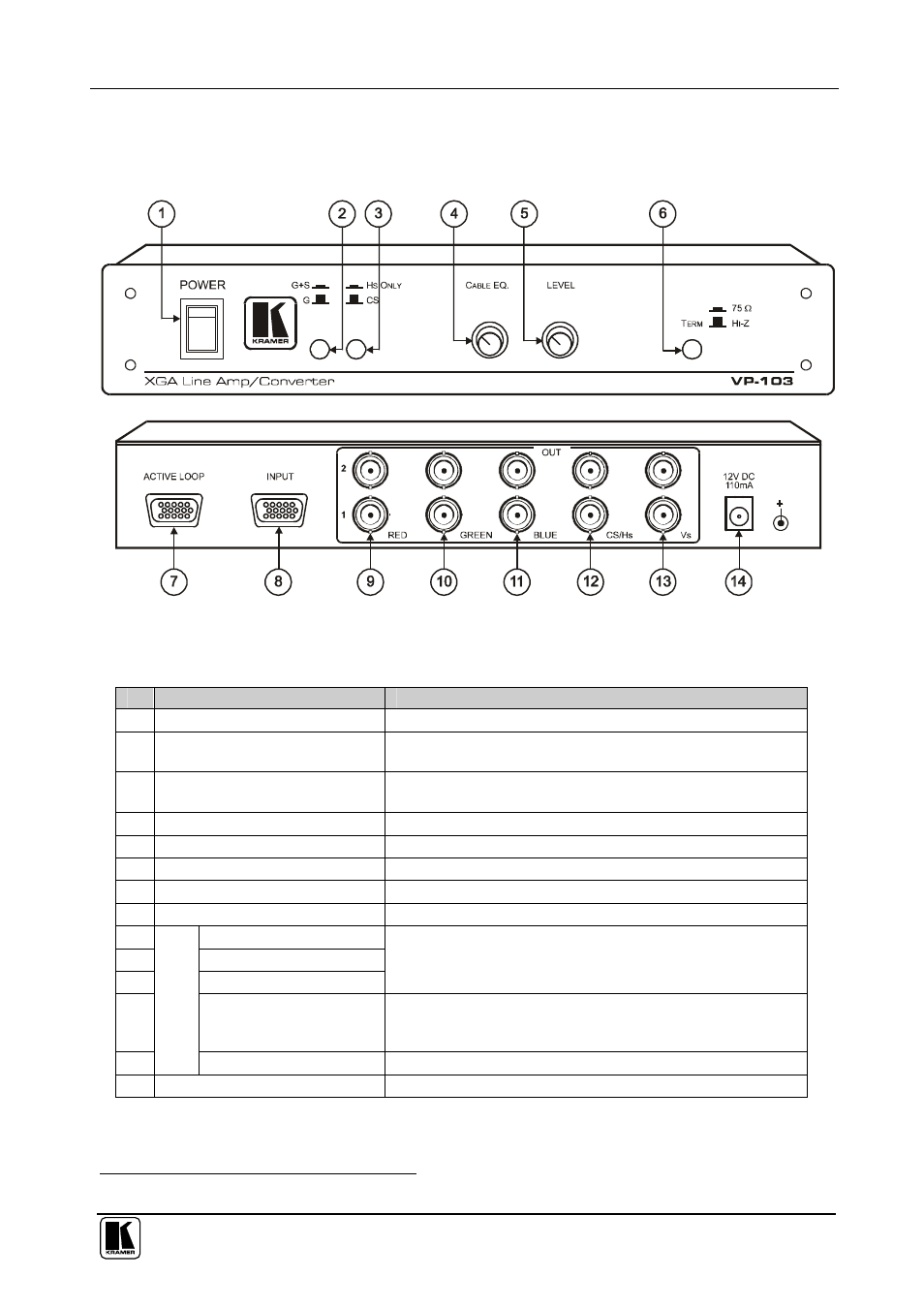

Figure 1: VP-103 XGA Line Amp/Converter – Front and Rear View
Table 1: Features and Functions of the VP-103 XGA Line Amp/Converter
# Feature Function
1 POWER Switch Illuminated switch for turning the unit ON or OFF
2 G+S/G Pushbutton Press to select green + sync; release to select green at the
GREEN OUT BNC connectors
3 Hs ONLY/CS Pushbutton Press to select horizontal sync; release to select composite sync
at the CS/Hs OUT BNC connectors
4 CABLE EQ. knob Adjust the cable equalization level
5 LEVEL knob Adjust the video picture intensity level to correct the input signal
6 TERM Pushbutton Press when looping is not used; release to allow looping
7 ACTIVE LOOP HD15F connector Connects to a local display
8 INPUT HD15F connector Connects to a computers graphics source
9 RED BNC Connector
10 GREEN BNC Connector Connect to the RGB video acceptors
11 BLUE BNC Connector
12 CS/Hs BNC Connector Amplified and buffered horizontal sync (when the Hs/Cs
pushbutton is pressed) or composite sync (when the Hs/Cs
pushbutton is released)
13
O
U
T
1
Vs BNC Connector Amplified and buffered vertical sync output
14 12V DC +12V DC connector for powering the unit
1 For OUT 1 and OUT 2
