Configuring the VM-92 9x 1:2 Video Distributor
6
5 Configuring the VM-92 9x 1:2 Video Distributor
You can configure the VM-92 in several different ways, including as a:
9 x 1:2 or 1:18 composite video distributor, see section 5.1
4 x 1:2 s-Video (Y/C) distributor, see section 5.2
3 x 1:2 component (YUV) distributor, see section 5.3
3 x 1:2 RGB distributor, see section 5.4
2 x 1:2 RGBS distributor, see section 5.5
5.1 Configuring a 9 x 1:2 Composite Video Distributor
You can configure the VM-92 as a 9 x 1:2 composite video distributor (see
Figure 3) or as a 1:18 composite video distributor 1 (see Figure 4).

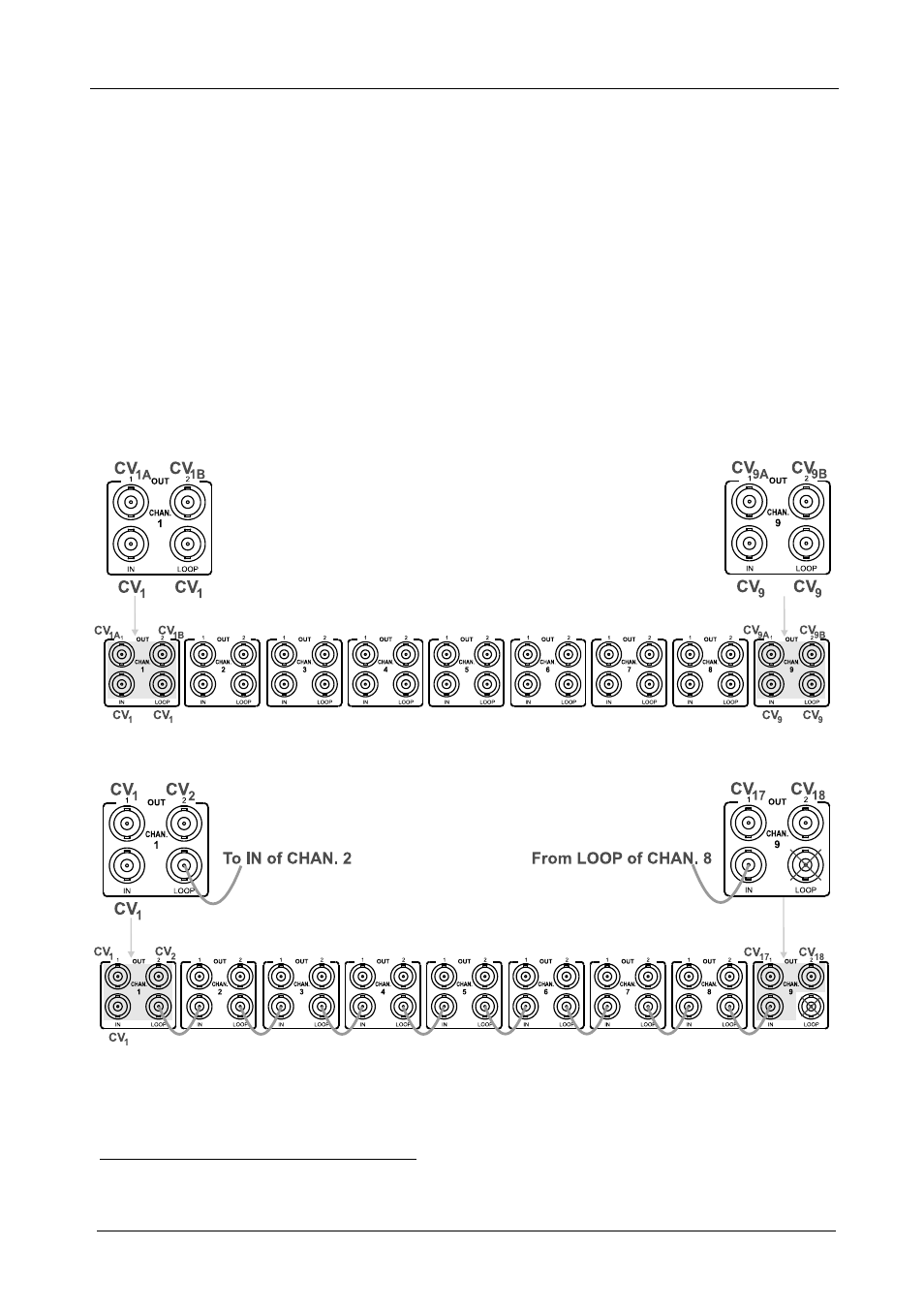

Figure 3: Configuring as a 9 x 1:2 Composite Video Distributor
Figure 4: Configuring as a 1:18 Composite Video Distributor
1 The INPUT TERM buttons are set to Hi-Z (for looping) on channels 1 to 8. On channel 9, the button is set to 75 .
