Your VM-92 9x 1:2 Video Distributor
4

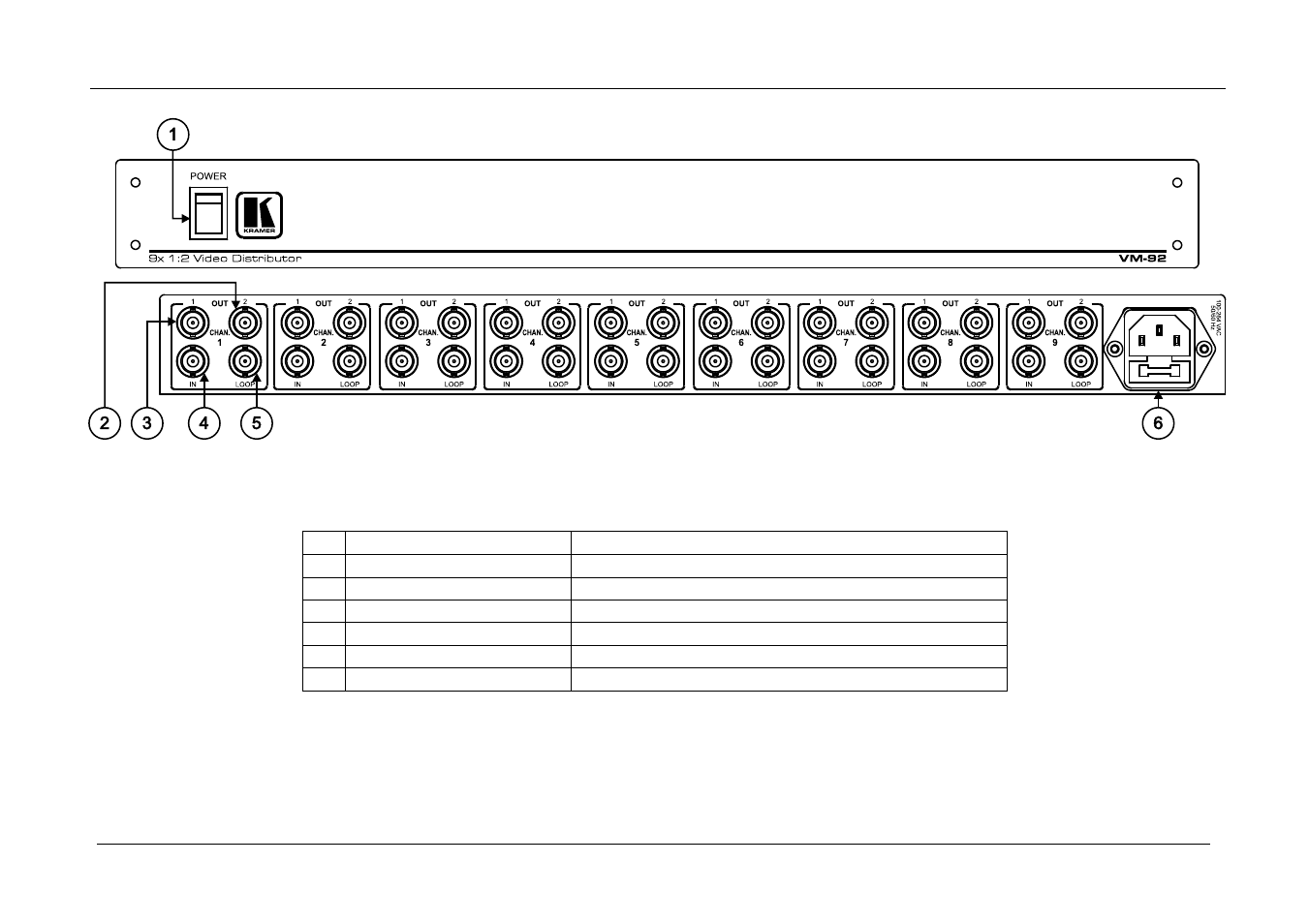

Figure 1: VM-92 9x 1:2 Video Distributor
Table 1: Front and Rear Panel Features of the VM-92 9x 1:2 Video Distributor
# Feature Function
1 POWER Switch Illuminated switch for turning the unit ON or OFF
2 OUT 2 BNC Connector Connect to the video acceptors (from channel 1 to channel 9)
3 OUT 1 BNC Connector Connect to the video acceptors (from channel 1 to channel 9)
4 IN BNC Connector Connect to the video source (from channel 1 to channel 9)
5 LOOP BNC Connector Connect to an additional unit / local display
6 Power Connector with FUSE AC connector enabling power supply to the unit
