VM-4Hxl - Overview 5
VM
-4
H
xl
–
O
ver
v
iew
5

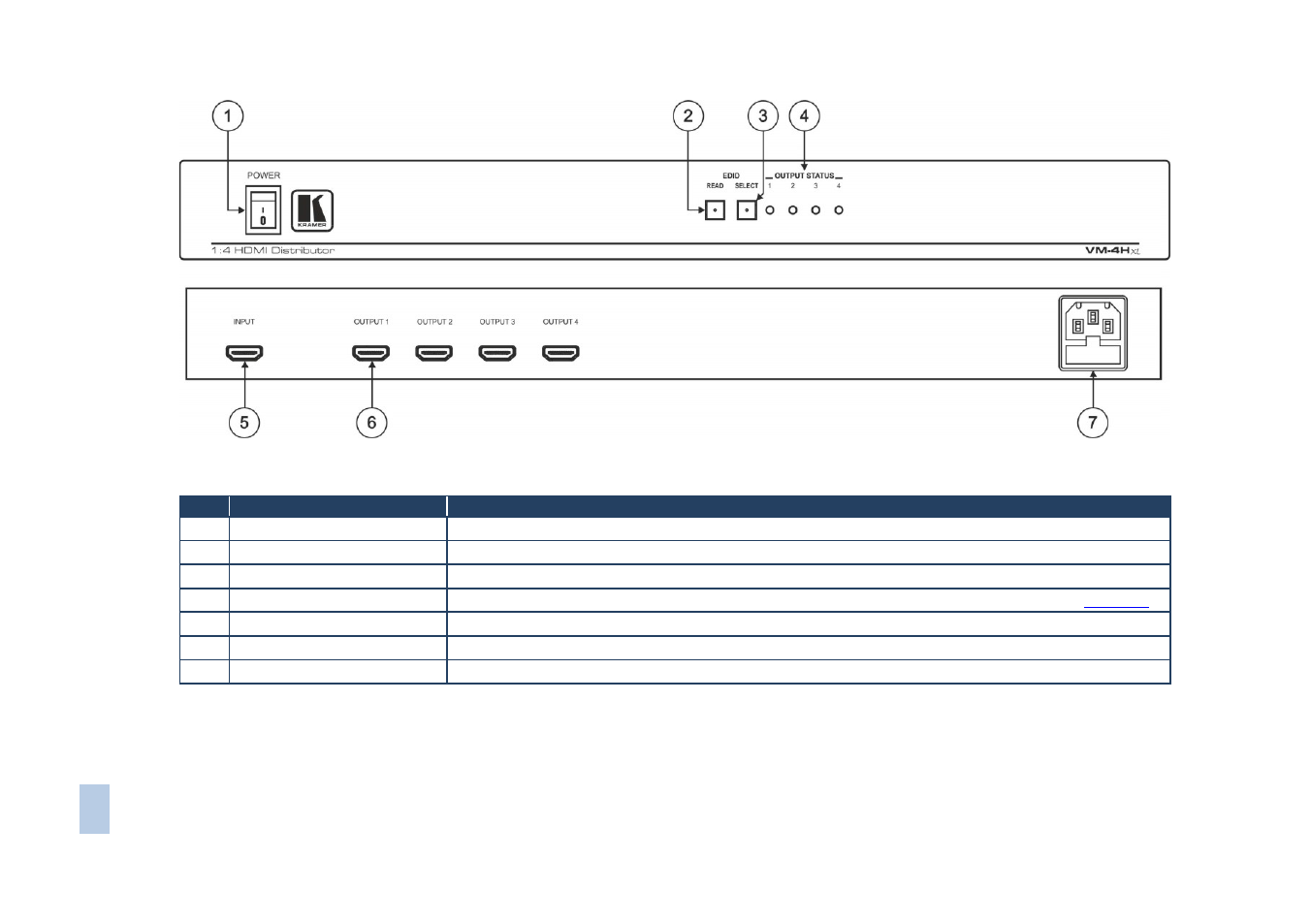

Figure 1: VM-4Hxl 1:4 HDMI Distributor Front Panel
# Feature Function
1 POWER Switch Illuminated switch for turning the unit ON or OFF
2 EDID READ Button Press to read the EDID of the selected display
3 EDID SELECT Button Select the desired display for EDID information
4 OUTPUTS LEDs LEDs light when an output(s) is connected and active; LEDs flash when selecting EDID (see Section 6 )
5 INPUT HDMI Connector Connects to the HDMI source
6 OUTPUT HDMI Connectors Connect to the HDMI acceptors (from 1 to 4)
7 Power Connector with Fuse AC connector enabling power supply to the unit
