Technical Specifications
10
3. Carefully move the jumper to the PROGRAMMING position (to the left
when the front panel of the machine is facing towards you) 1
4. Connect the RS-232 9-pin D-sub port on the unit via a crossed cable (pin 2
to pin 3, pin 3 to pin 2, and pin 5 to pin 5) to the RS-232 9-pin D-sub port on
the PC. If a shielded cable is used, connect the shield to pin 5.
Note: There is no need to connect any other pins.
2
3
4
5
7
6
8
9
1
2
3
4
5
7
6
8
9
1
PC

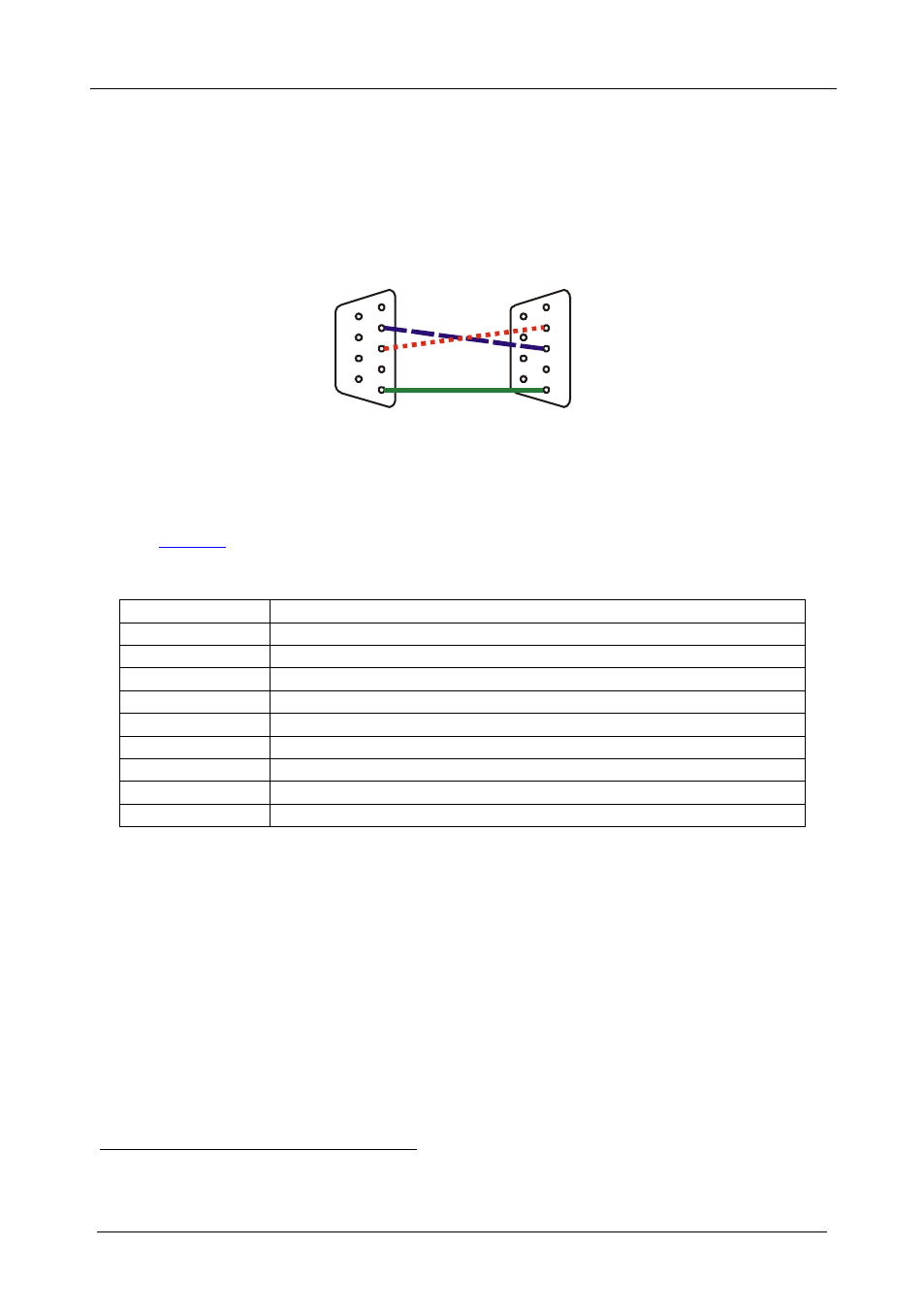

Figure 4: RS-232 Crossed Cable Connection
8 Technical Specifications
Table 2 includes the technical specifications 2
Table 2: VM-4HDCPxl Technical Specifications
of the VM-4HDCPxl:
INPUT: 1 DVI, 1.2Vpp on a DVI Molex 24-pin (F) connector; DDC signal 5Vpp (TTL)
OUTPUTS: 4 DVI, 1.2Vpp on DVI Molex 24-pin (F) connectors; DDC signal 5Vpp (TTL)
BANDWIDTH: Supports up to 2.25Gbps bandwidth per graphic channel
CONTROLS: EDID SELECT, EDID READ
INDICATOR LEDs: OUTPUT STATUS LEDs
POWER SOURCE: 100-240V AC, 50/60Hz 17VA
DIMENSIONS:
19" x 7" x 1U W, D, H, rack mountable
WEIGHT: 2.5kg (5.5lbs) approx.
ACCESSORIES: Power cord, rack ears
OPTIONS: DVI/DVI male-to-male cables, Fiber Optic DVI Cable (C-FODM/FODM)
1 Upon completion of firmware upgrade, move the jumper to the right side (to the NORMAL position)
2 Specifications are subject to change without notice
