6 VM-2HD - Connecting the VM-2HD
4 Connecting the VM-2HD
Always switch off the power to each device before connecting it to your
VM-2HD. After connecting your VM-2HD, connect its power and then
switch on the power to each device.
To connect the VM-2HD as illustrated in the example in Figure 2 :
1. Connect an HD-SDI/SD-SDI video source (for example, a camera) to the
INPUT BNC connector.
2. Connect up to two video OUT BNC connectors to the appropriate
HD-SDI/SD-SDI video acceptors (for example, displays).
You do not have to connect both outputs.
3. Connect the 12V DC power adapter to the power socket and connect the
adapter to the mains electricity (not shown in Figure 2 ).

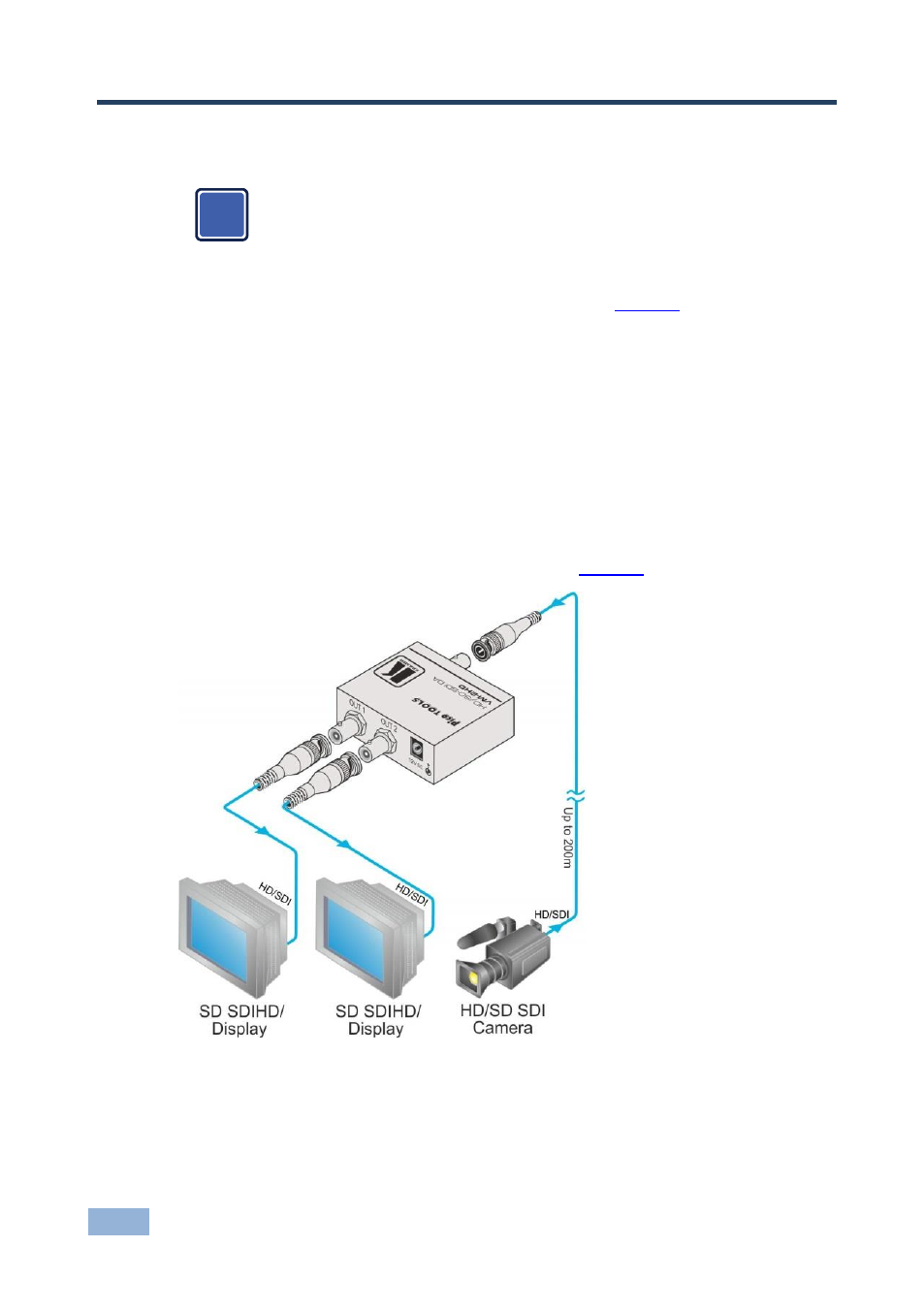

Figure 2: Connecting the VM-2HD HD/SD-SDI DA
