VM-2HD - Overview 5
3.1 Defining the VM-2HD HD/SD-SDI DA
This section defines the VM-2HD.

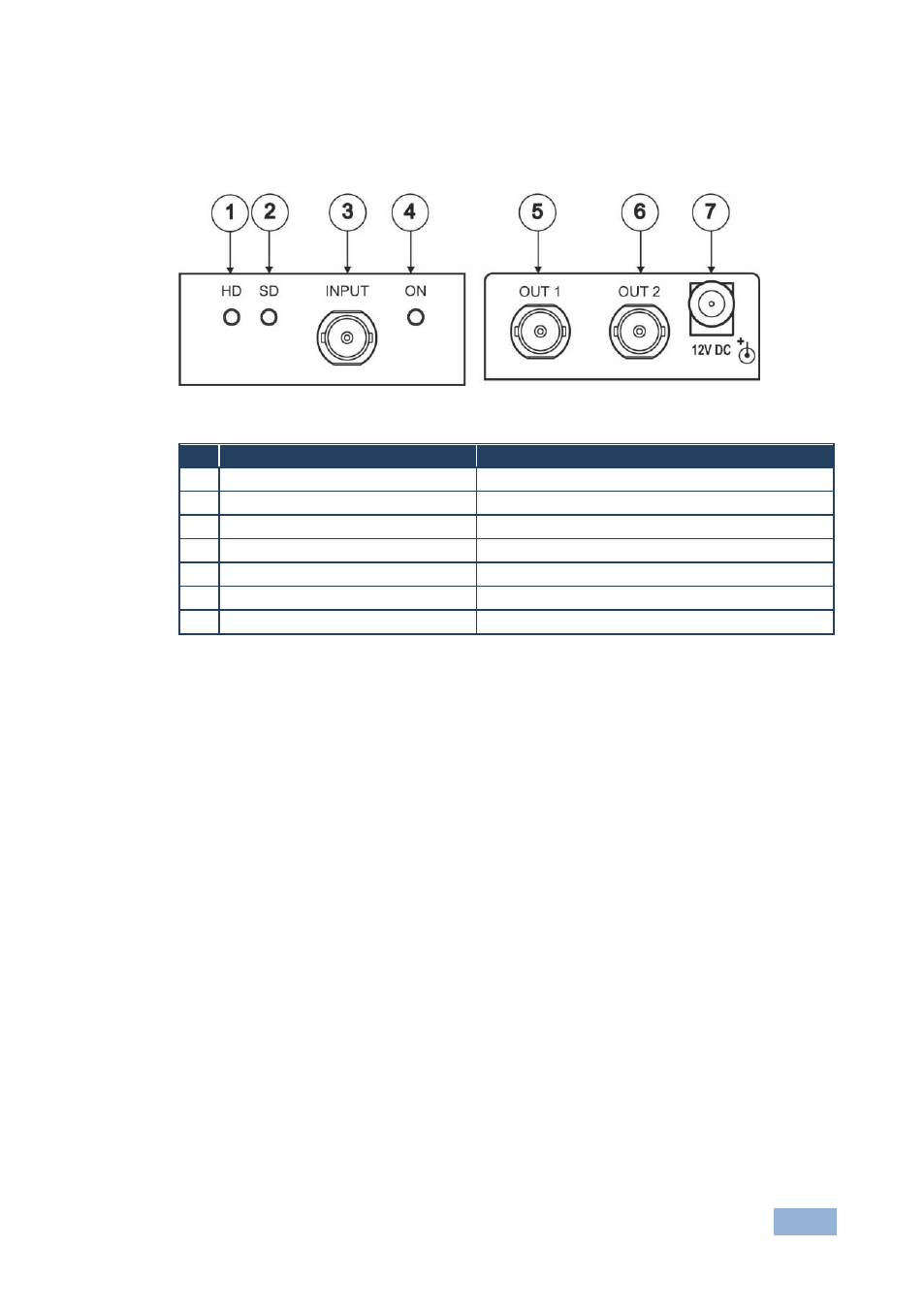

Figure 1: VM-2HD HD/SD-SDI DA
# Feature Function
1 HD LED Lights when the SDI signal is HD
2 SD LED Lights when the SDI signal is SD
3 INPUT BNC connector Connects to the SDI source
4 ON LED Lights when receiving power
5 OUT 1 BNC connector Connects to the SDI acceptor 1
6 OUT 2 BNC connector Connects to the SDI acceptor 2
7 12V DC +12V DC connector for powering the unit
