KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your VM-22HD 2 x 1:2 HD/SD-SDI DA
4
4
Your VM-22HD 2 x 1:2 HD/SD-SDI DA
and
define the unit.

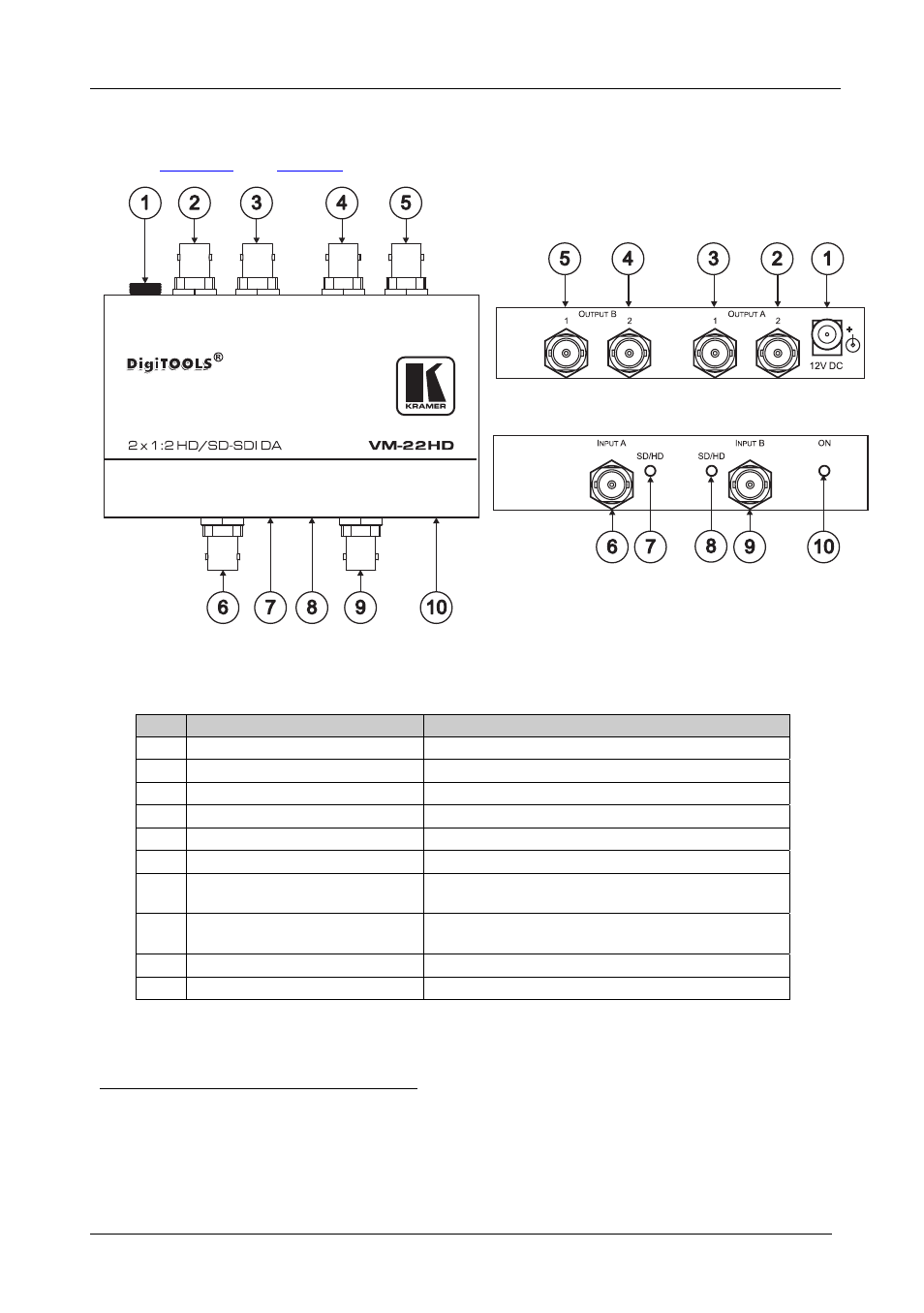

Figure 1: VM-22HD 2 x 1:2 HD/SD-SDI DA
Table 1: VM-22HD 2 x 1:2 HD/SD-SDI DA Functions
#
Feature
Function
1
12V DC Connector
+12V DC for powering the unit
2
OUTPUT A 2 BNC connector
Connects to the SDI A acceptor 2
3
OUTPUT A 1 BNC connector
Connects to the SDI A acceptor 1
4
OUTPUT B 2 BNC connector
Connects to the SDI B acceptor 2
5
OUTPUT B 1 BNC connector
Connects to the SDI B acceptor 1
6
INPUT A BNC connector
Connects to the SDI A source
7
SD
/HD
INPUT A LED
Illuminates blue for the HD-SDI signal, green for the
SD-SDI signal on input A
8
SD/HD INPUT B LED
Illuminates blue for the HD-SDI signal, green for the
SD-SDI signal on input B
9
INPUT B BNC connector
Connects to the SDI B source
10
ON LED
Illuminates green when receiving power
1 Standard Definition (SD) means an NTSC or PAL compatible video format, consisting of 480 (for NTSC) or 576 (for PAL)
lines of interlaced video; as well as 480 and 576 line progressive scan video format
2 High Definition (HD) means a video format, consisting of either 720 active lines of progressive video or 1080 lines of either
progressive or interlaced video
