8 VM-5ARII, VM-20ARII - Defining the VM-5ARII and VM-20ARII

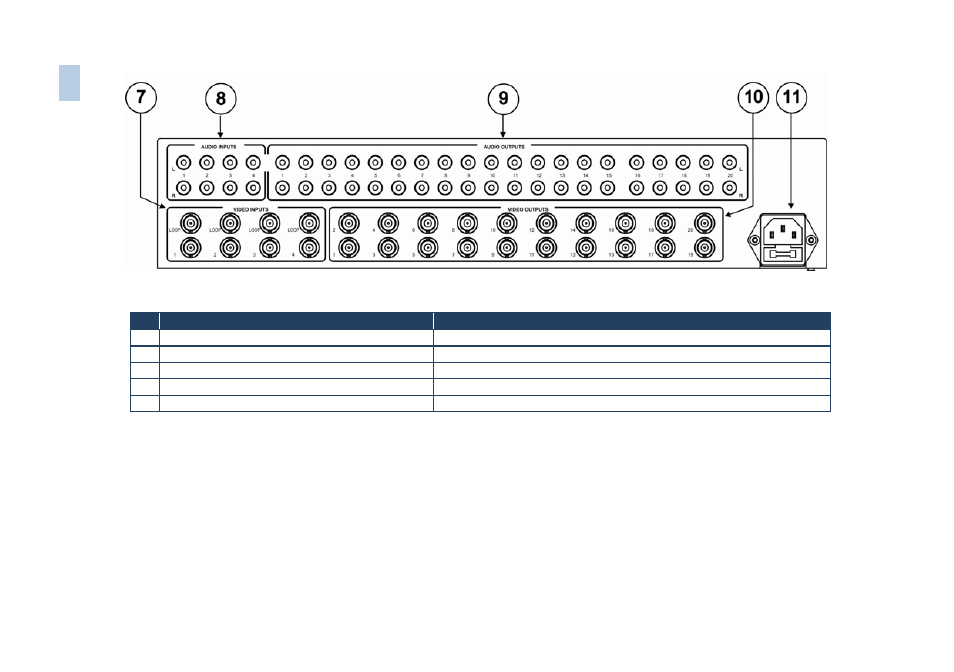

Figure 3: VM-20ARII 1:20 Programmable Video Audio Distributor – Rear Panel
# Feature Function
7 VIDEO INPUTS (1-4) and LOOP (1-4) BNC Connectors Connect to the video sources and input loops
8 AUDIO IN (L and R) (1-4) RCA Connectors Connect to the L and R channels of the audio source
9 AUDIO OUT (L and R) (1-20) RCA Connectors Connect to the audio acceptors (from 1 to 20)
10 VIDEO OUTPUTS (1-20) BNC Connectors Connect to the video acceptors (from 1 to 20)
11 Power Connector with Fuse AC connector for supplying power to the unit
