VM-10xl - Connecting the VM-10xl 9

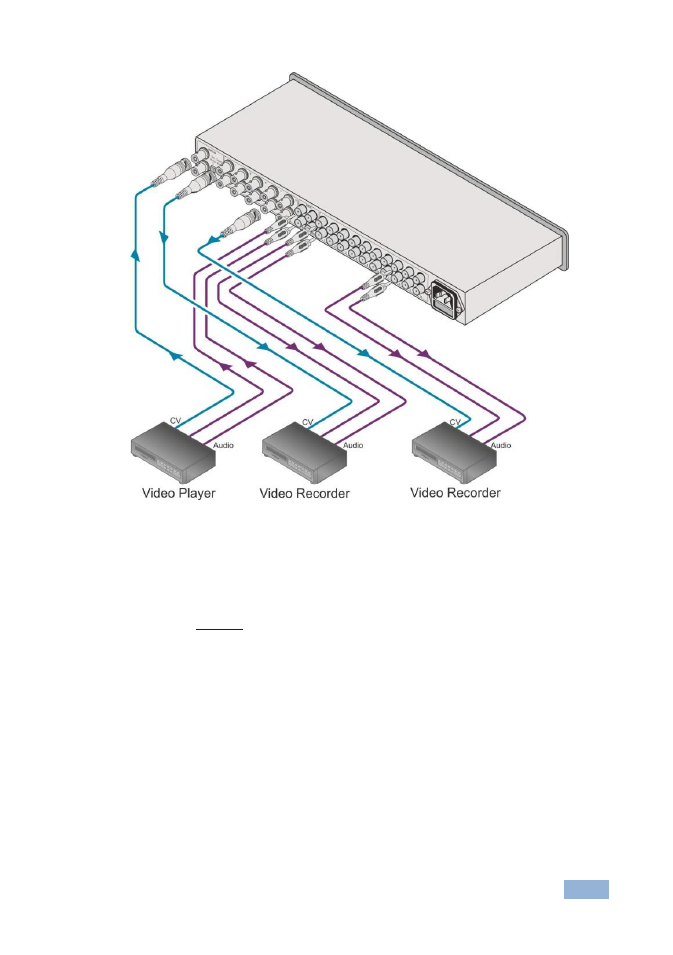

Figure 3: Connecting the VM-10xl Video Audio Distribution Amplifier
5.1 Increasing the Outputs
You can increase the number of outputs by interconnecting VM-10xl units. The
example in Figure 4 illustrates how to connect 3 units to increase the number of
outputs from 10 to 30.
To form a 1:30 video and unbalanced stereo audio DA, do the following:
1. Connect a video audio source (for example, a composite VCR) to the VIDEO
IN BNC connector and to the left and right AUDIO IN RCA connectors of the first
VM-10xl unit.
