KRAMER: SIMPLE CREATIVE TECHNOLOGY

Using the PT-102VN 1:2 Video DA

6

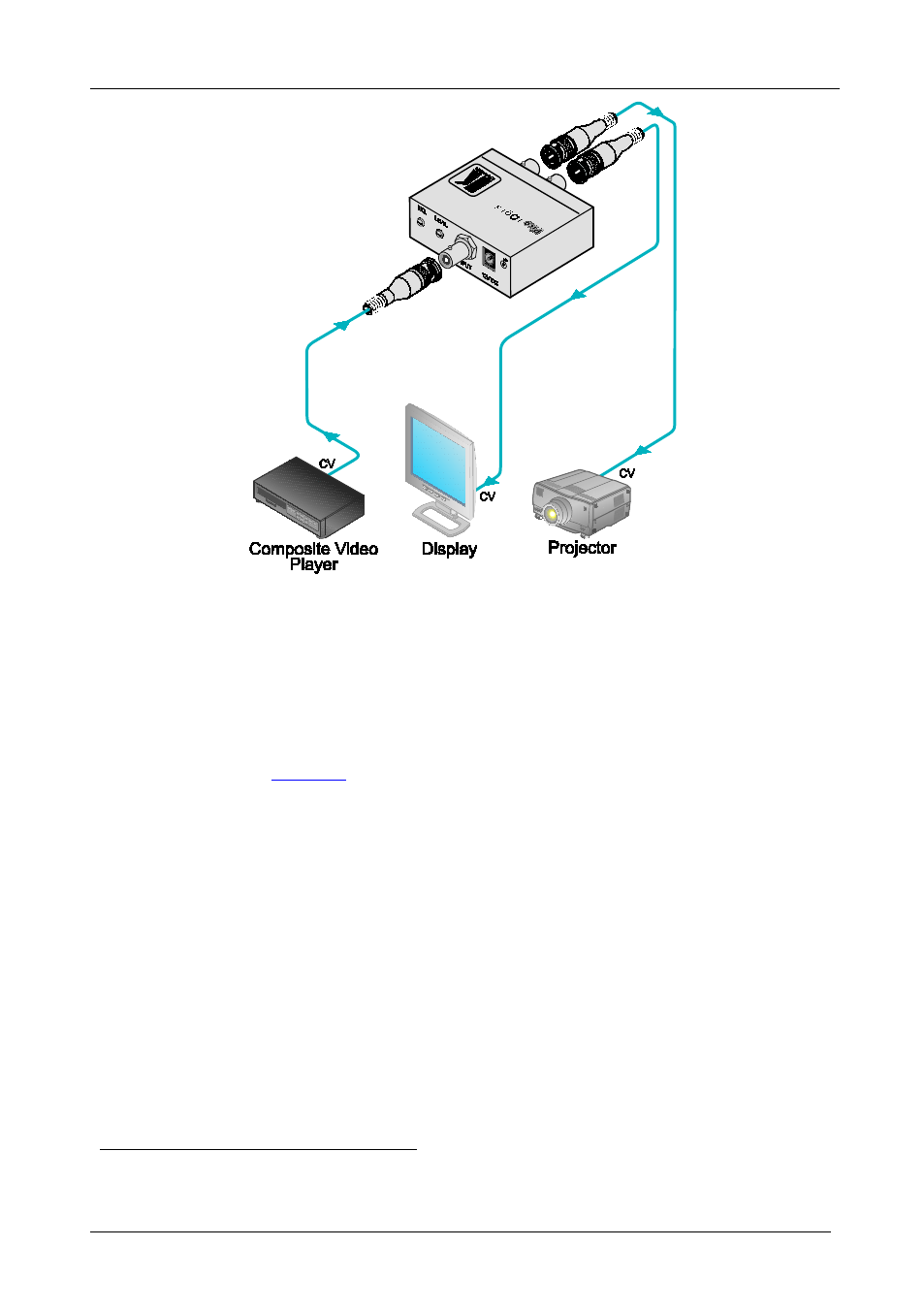

Figure 2: Connecting the PT-102VN 1:2 Video DA

5.2 Increasing the Inputs

When it is necessary to handle more than one input, you can increase the number
of inputs for example, from one to four, by connecting the Kramer 4x1VB 4x1
High Resolution Video Switcher

1

in addition to the PT-102VN 1:2 Video DA, as

the example in

Figure 3

illustrates:

1. Connect up to four sources to the four IN connectors of the 4x1VB.

2. Connect the OUTPUT connector of the 4x1VB to the INPUT connector

of the PT-102VN.

3. Connect the OUT connectors of the PT-102VN to up to two acceptors.

4. Select the desired input via the INPUT SELECTOR switch of the 4x1VB.

5. Connect the 12V DC power adapter to the power socket of the

PT-102VN and connect the adapter to the mains electricity.

6. Adjust the output signal level and/or cable compensation equalization

level of the PT-102VN, if required.

1 A mechanical switcher that lets you select any input to route to one output via its INPUT SELECTOR buttons.

Alternatively, you could connect the PT-102VN to a video switcher with more than four inputs
