Your PT-102VN 1:2 Video DA
4
4 Your PT-102VN 1:2 Video DA

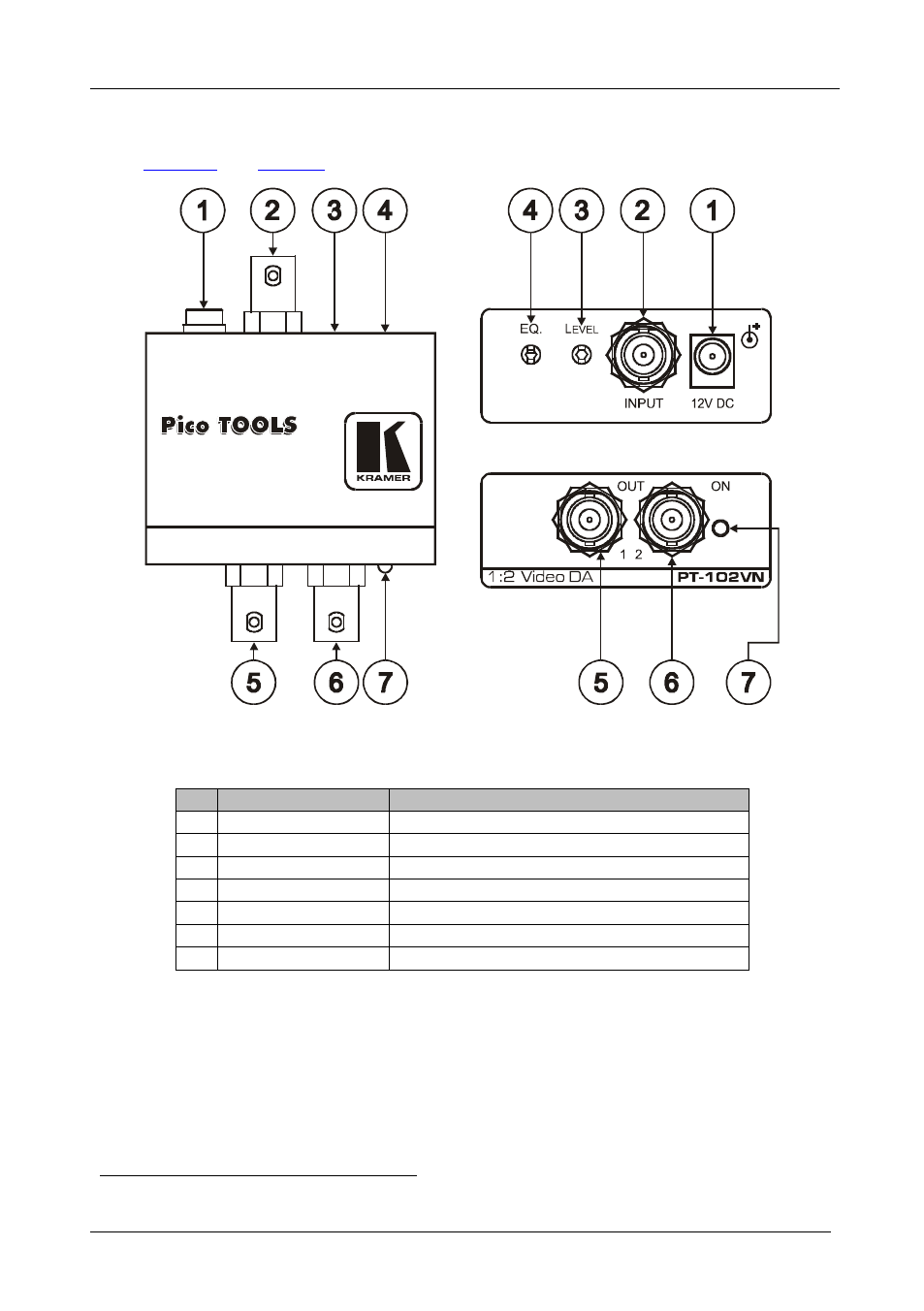

Figure 1 and Table 1 define the PT-102VN 1:2 Video DA:
Figure 1: PT-102VN 1:2 Video DA
Table 1: Features and Functions of the PT-102VN 1:2 Video DA
# Feature Function
1 12V DC +12V DC connector for powering the unit
2 INPUT BNC Connector Connects to the composite video source
3 LEVEL Trimmer Adjusts
1
4
the video signal level for outputs 1 and 2
EQ. Trimmer Adjusts
1
the cable compensation equalization level
5 OUT 1 BNC Connector Connects to composite video acceptor 1
6 OUT 2 BNC Connector Connects to the composite video acceptor 2
7 ON LED Illuminates when receiving power
1 Insert a screwdriver into the hole and carefully rotate it, to trim the level
