6 106 - Connecting the 106
4 Connecting the 106
Always switch off the power to each device before connecting it to your
106. After connecting your 106, connect its power and then switch on
the power to each device.
To connect the 106 as illustrated in the example in Figure 2 :
1. Connect a mono balanced microphone to the MIC IN terminal block
connector.
2. Connect the LINE OUT 1 terminal block connector to a power amplifier
and/or the LINE OUT 2 terminal block connector to a power amplifier.
3. Connect each power amplifier to a loudspeaker.
4. Connect the 12V DC power adapter to the power socket, and connect the
adapter to the mains electricity.
5. Adjust the audio level via LEVEL Trimmers, if required.
Use the LINE OUT 1 trimmer to adjust the line 1 output, use the LINE OUT 2 trimmer to
adjust the line 2 output, and use the MASTER trimmer to adjust both line outputs.

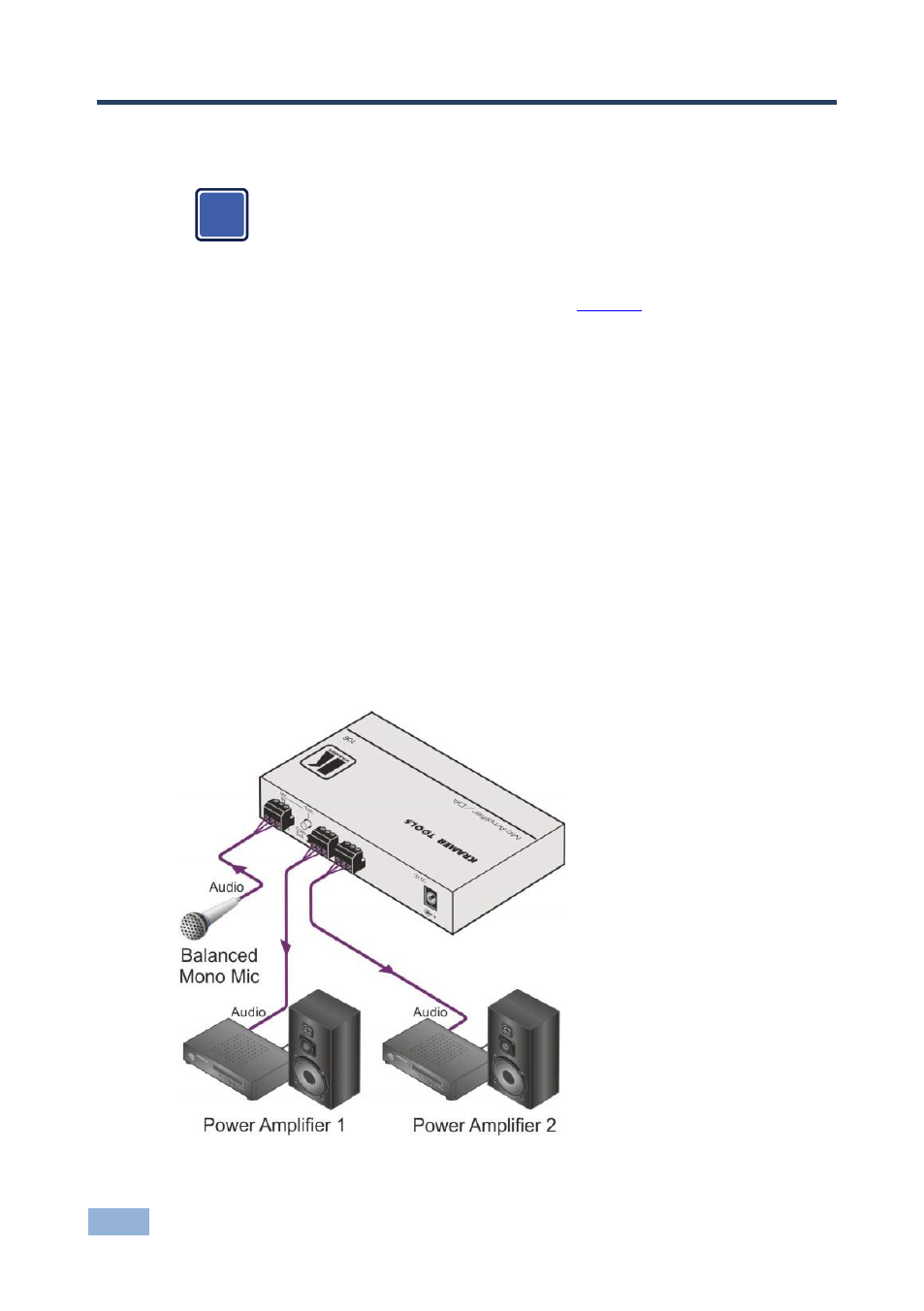

Figure 2: Connecting the 106 Mic Amplifier/DA
