3.1 Defining the 106 Mic Amplifier/DA
This section defines the 106.

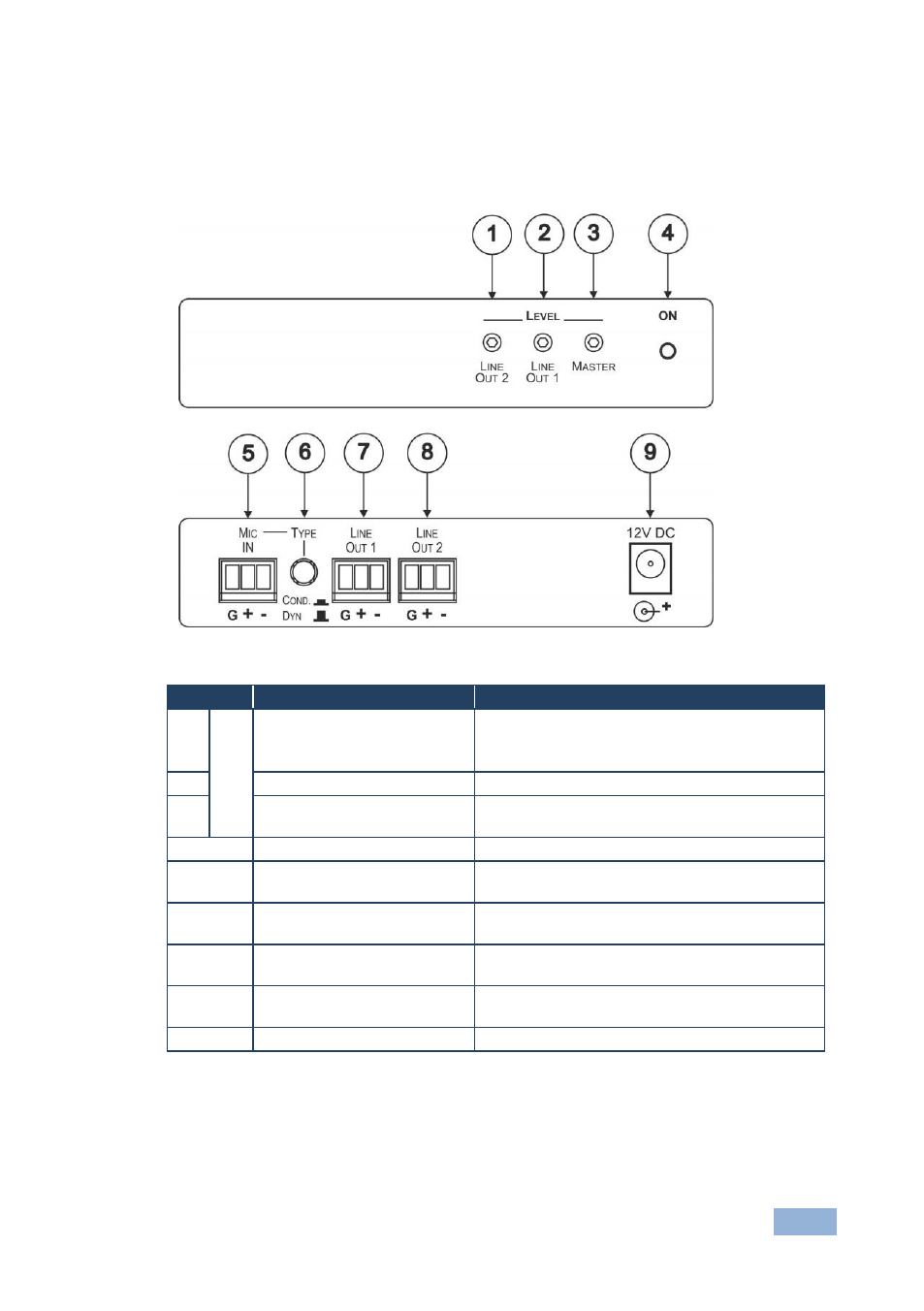

Figure 1: 106 Mic Amplifier/DA
# Feature Function
1
L
E
V
E
L
LINE OUT 2 Trimmer Adjusts the LINE OUT 2 audio level
Insert a screwdriver into the small hole and
carefully rotate it to adjust the audio level
2 LINE OUT 1 Trimmer Adjusts the LINE OUT 1 audio level
3 MASTER Trimmer Adjusts both the LINE OUT 1 and LINE OUT 2
audio levels
4 ON LED Illuminates when receiving power
5 MIC IN Terminal Block
Connector Connects to the microphone
6 TYPE COND./DYN Selector
Switch Push to select the condenser microphone,
release to select the dynamic microphone
7 LINE OUT 1 Terminal Block
Connector Connects to acceptor 1
8 LINE OUT 2 Terminal Block
Connector Connects to acceptor 2
9 12V DC +12V DC connector for powering the unit
