4 104R - Overview
3 Overview
The 104R is a high−performance distribution amplifier for RF signals. It takes one
RF (CATV/MATV) signal and distributes it to four identical outputs.
In addition, the 104R features:

A single RF input such as a typical CATV/MATV signal and distributes it to
four identical outputs

Extra wide bandwidth of up to 800 MHz, ensuring that the unit remains
transparent in the most critical applications
 Matches the inputs and outputs to 75Ω impedance

Comes with convenient screw-
on “F” type connectors
3.1 Defining the 104R RF Distribution Amplifier
This section defines the 104R.

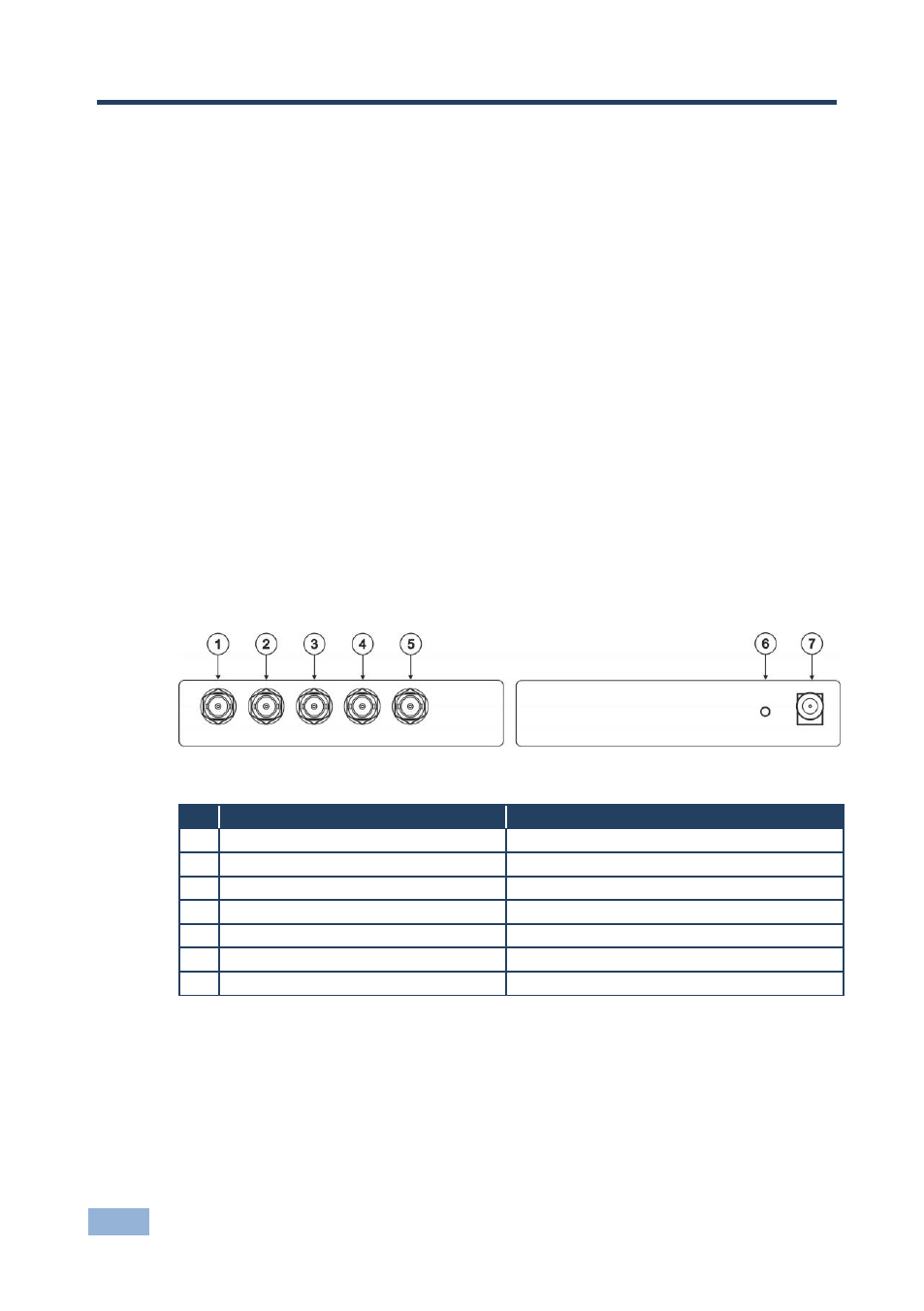

Figure 1: 104R RF Distribution Amplifier
# Feature Function
1 OUT 1 “F” type connector Connects to the RF source 1
2 OUT 2 “F” type connector Connects to the RF source 2
3 INPUT “F” type connector Connects to the RF acceptor
4 OUT 3 “F” type connector Connects to the RF source 3
5 OUT 4 “F” type connector Connects to the RF source 4
6 ON LED Illuminates when receiving power
7 12V DC +12V DC connector for powering the unit
