Using the 104B 1:4 Microphone DA
5
5 Using the 104B 1:4 Microphone DA
To connect your 104B 1:4 Microphone DA, as the example in Figure 2
illustrates, do the following:
1. Connect a microphone to the INPUT XLR connector.
2. Connect up to
1 4 OUTPUT XLR connectors to the audio acceptors (for
example, mixers).
3. Connect the 12V DC power adapter to the power socket and connect the
adapter to the mains electricity (not shown in Figure 2).
4. If required, adjust the audio signal level.

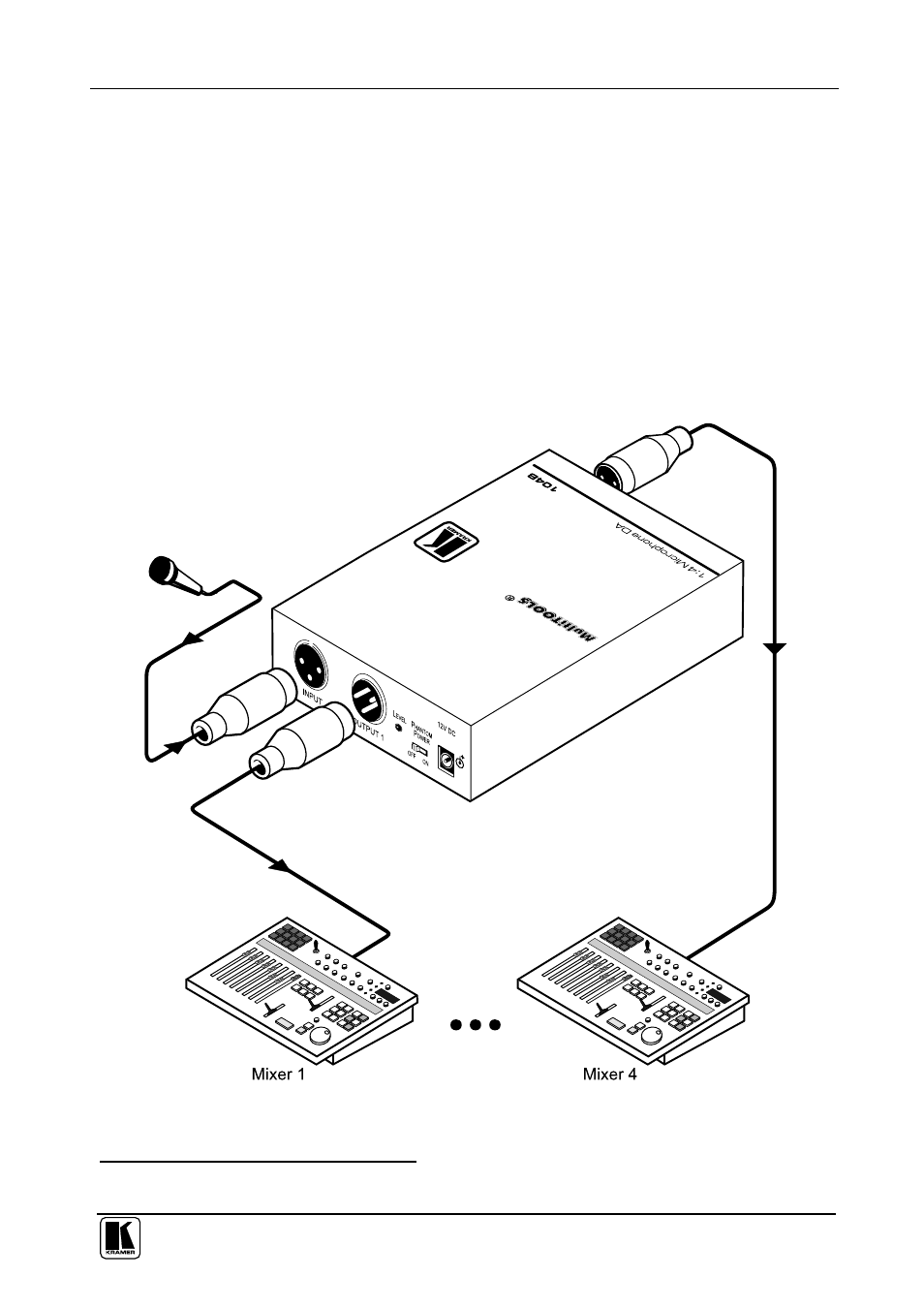

Figure 2: Connecting the 104B 1:4 Microphone DA
1 You do not have to connect all the outputs
