Your 104B 1:4 Microphone DA
4
4 Your 104B 1:4 Microphone DA

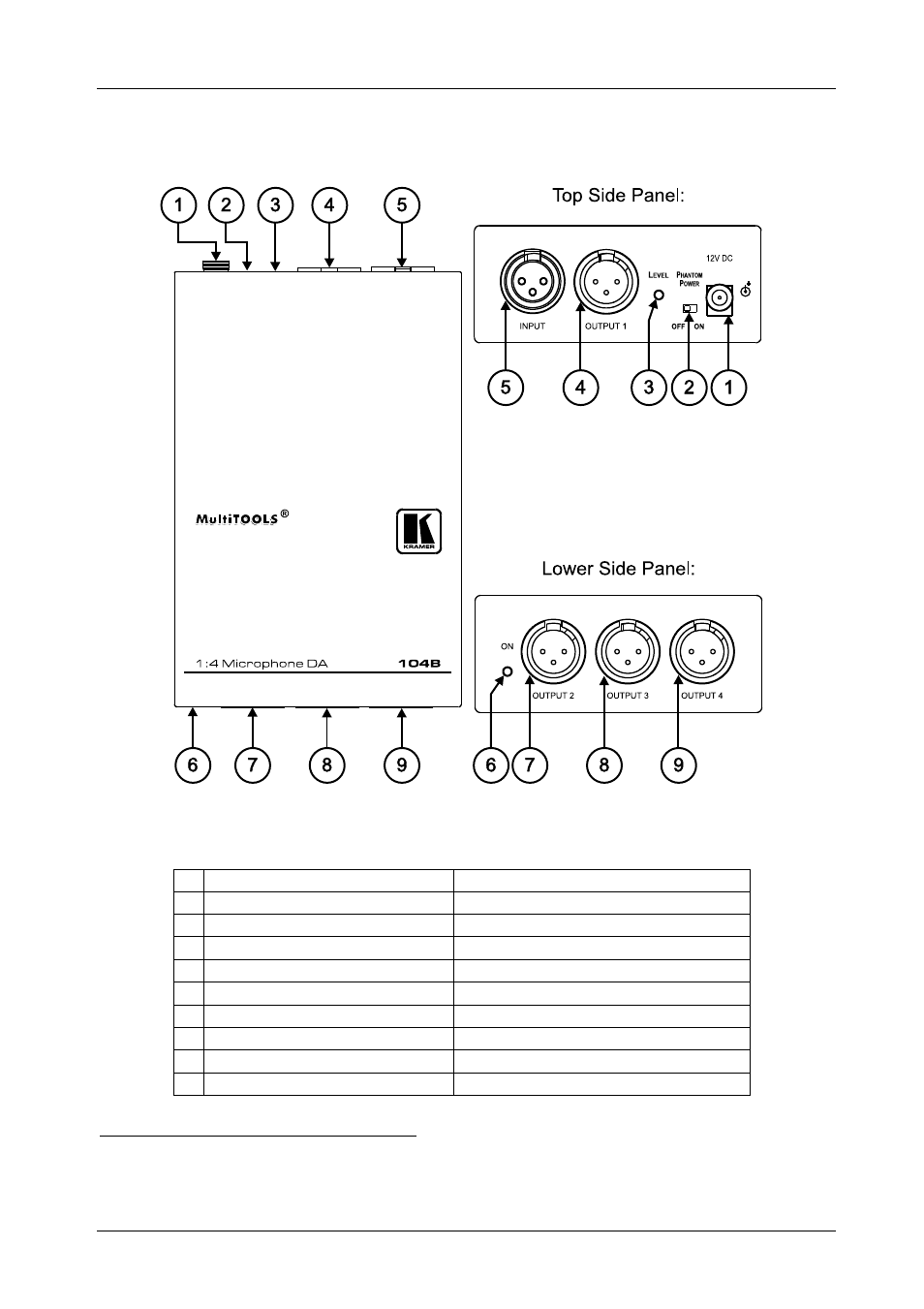

Figure 1 and Table 1 define the 104B 1:4 Microphone DA:
Figure 1: 104B 1:4 Microphone DA
Table 1: Features and Functions of the 104B 1:4 Microphone DA
# Feature Function
1 12V DC +12V DC connector for powering the unit
2 PHANTOM POWER Switch Move to the right to apply phantom power
3 LEVEL Trimmer Adjusts 1 the audio output level
4 OUTPUT 1 XLR Male Connector Connects to audio acceptor 2 1
5 INPUT XLR Female Connector Connects to the microphone
6 ON LED Illuminates when receiving power
7 OUTPUT 2 XLR Male Connector Connects to audio acceptor 2 2
8 OUTPUT 3 XLR Male Connector Connects to audio acceptor 2 3
9 OUTPUT 4 XLR Male Connector Connects to audio acceptor 2 4
1 Insert a screwdriver into the small hole and carefully rotate it to adjust the audio level
2 A mixer
