HES 8500 - Manual (Page 4)

8500 Options
851M
Compatible with mortise locksets:
Sargent (8100, 8200, 9200)
852K
Compatible with mortise lockset:
Corbin Russwin (ML 2000)
852L
Compatible with mortise lockset:
Schlage
852M
Compatible with mortise locksets:
Yale (8700* & 8800), Accurate,
Falcon, Kaba Ilco/Unican
4

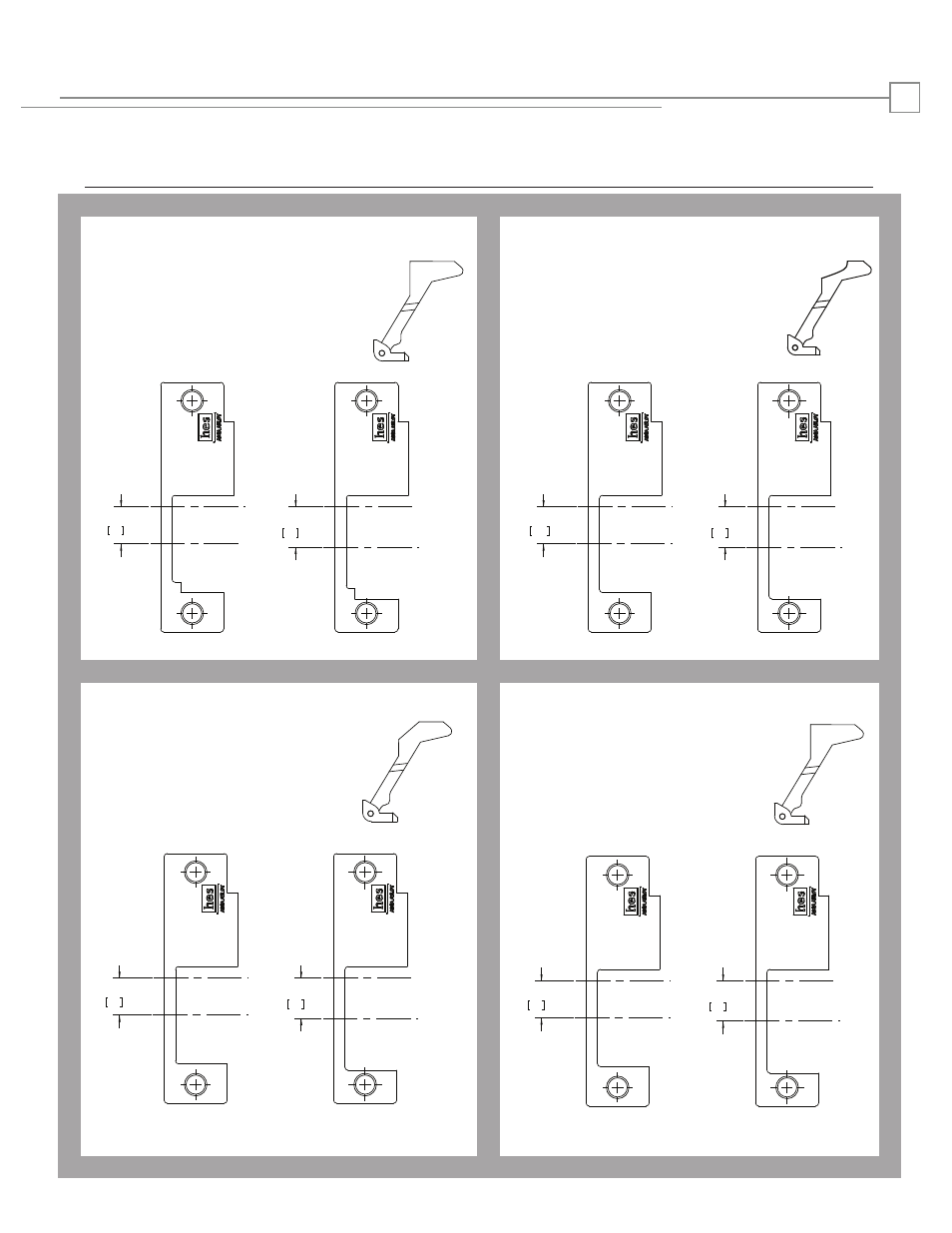

CL = centerline of faceplate
2nd line = centerline of faceplate opening
23/32"
18.2
CL
25/32"
19.8
CL
25/32"
19.8
CL
23/32"
18.2
CL
25/32"
19.8
CL
23/32"
18.2
CL
25/32"
19.8
CL
23/32"
18.2
CL
* Manufactured after 2005.
Contact HES Customer Support for more information.
