Installation 13
Note
DXU RQY\ \_S[c _b ZQS[cSbUgc Qd dXU U^Tc _V dXU C3C9 SQR\U ]ecd RU cUSebU\i
VQcdU^UT d_ Y^cebU S_]]e^YSQdY_^c RUdgUU^ dXU 4C) CUbYUc Q^T dXU X_cd
S_]`edUb
Make sure that the SCSI cable between the host adapter and the DS9000 Series is secure and the
connections are fastened correctly.
Connecting More than One DS9000 Series Unit
If connecting to more than one DS9000 Series unit on the same SCSI channel, connect each unit to the previous unit
with an interface cable. The connection sequence between the units is not critical. Refer to Figure 6 to see a
configuration set-up.
Note
4_^µd V_bWUd d_ Y^cdQ\\ dXU C3C9 dUb]Y^Qd_b _^ dXU \Qcd TUfYSU Y^ dXU SXQY^
SCSI ID 3
SCSI ID 2
SCSI ID 1
SCSI ID 0
SCSI
Interface Cables
Host Com puter
4 D S9X 00 U nits
D aisy C hained
Term inator

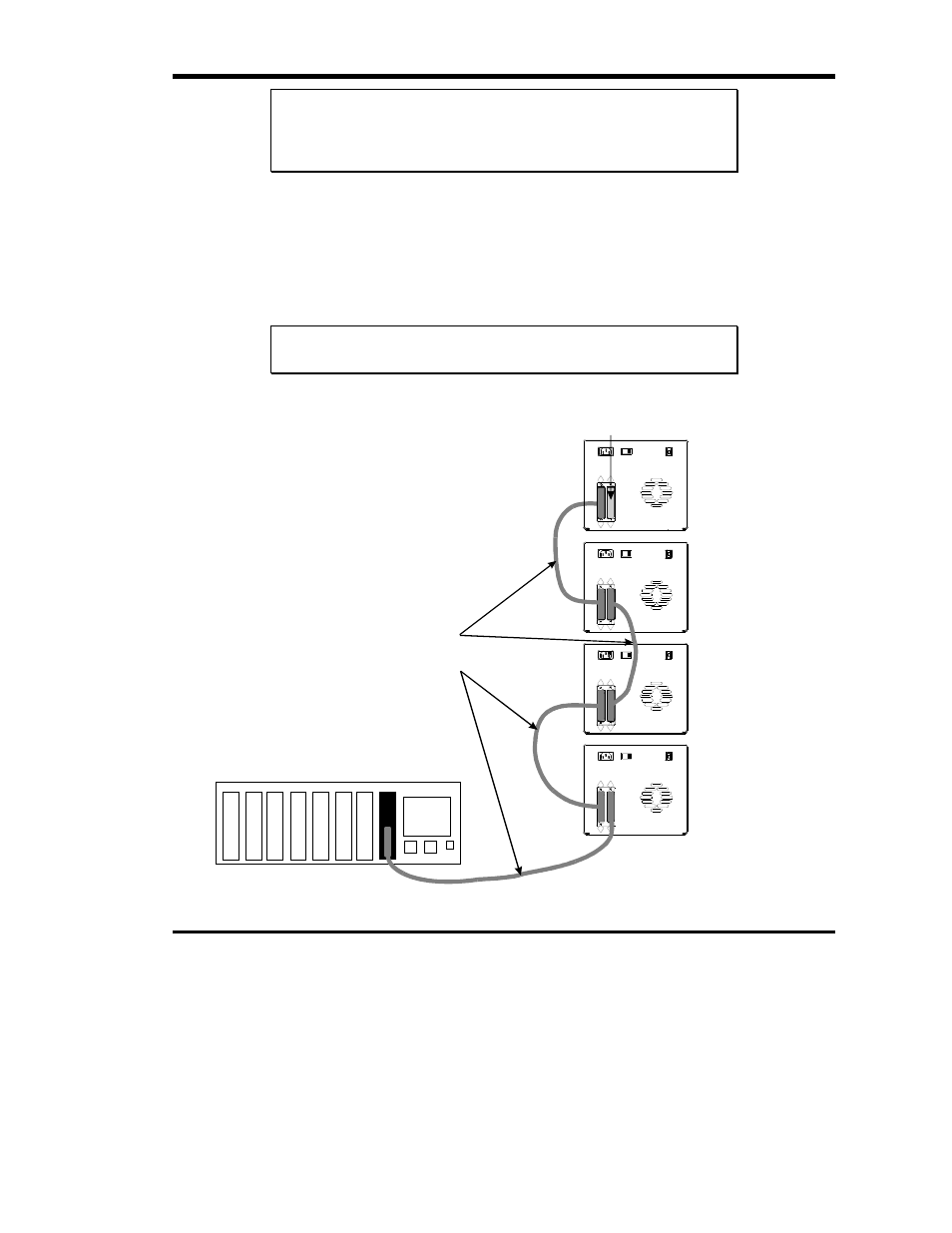

Figure 6. Cable Diagram for 4 DS9000 Series Units
