Parts
Air Motor Parts List (Matrix Column 2)
Digit
Ref.
No.
Part No.
Description
Qty
3
1
HOUSING, center;
polypropylene;
see page 28
1
2
{
COVER, air valve;
polypropylene
1
3
{
SPRING, compression;
sst
1
4
{
STOP, link;
1
5
{
CUP, valve;
1
6
{
SPRING, compression;
sst
1
7
{
COLLAR, detent; sst
1
8
{
BALL, detent; carbide
1
9
{
BEARING, link;
see page 28
1
10
SCREW, thread-forming;
1/4–20; 0.375 in. (9.5
mm) long; see page 28
2
11
MUFFLER; see page 28
1
12
SEAL, plate, valve;
buna-N; see page 28
1
13
PLATE, valve; sst;
see page 28
1
14
{
SADDLE, shift;
1
15
{
SCREW, thread-forming;
10–14 size; 0.75 in.
(19 mm) long; see below
and page 28
7
Digit
Ref.
No.
Part No.
Description
Qty
16
{
LINK, actuator; sst
1
17
{
SPACER, link;
1
18
{
WASHER, plain; sst
1
19
{
O-RING; buna-N
1
20
{
O-RING; buna-N
1
21
{
SHAFT, reset; sst
1
22
{
LINK, detent; sst
1
23
}
SHAFT, diaphragm; sst;
see page 28
1
26
{
GREASE, general pur-
pose; 0.375 oz. (10.5 g);
not shown
1
27
NUT, hex; 10–24;
see page 28
1
28
SCREW; 10–24;
0.75 in. (19 mm) long;
see page 28
1
29
LOCKWASHER, int.
tooth; no. 10; see page
28
1
30
}
PACKING, u-cup; Viton
R
2
31
}
BEARING;
2
{
These parts are included in Air Valve Kit 239952, which
may be purchased separately. The kit includes only one
screw (15), shown below, and a tube of grease (26).
}
These parts are included in Diaphragm Shaft Kit 239014,
which may be purchased separately.

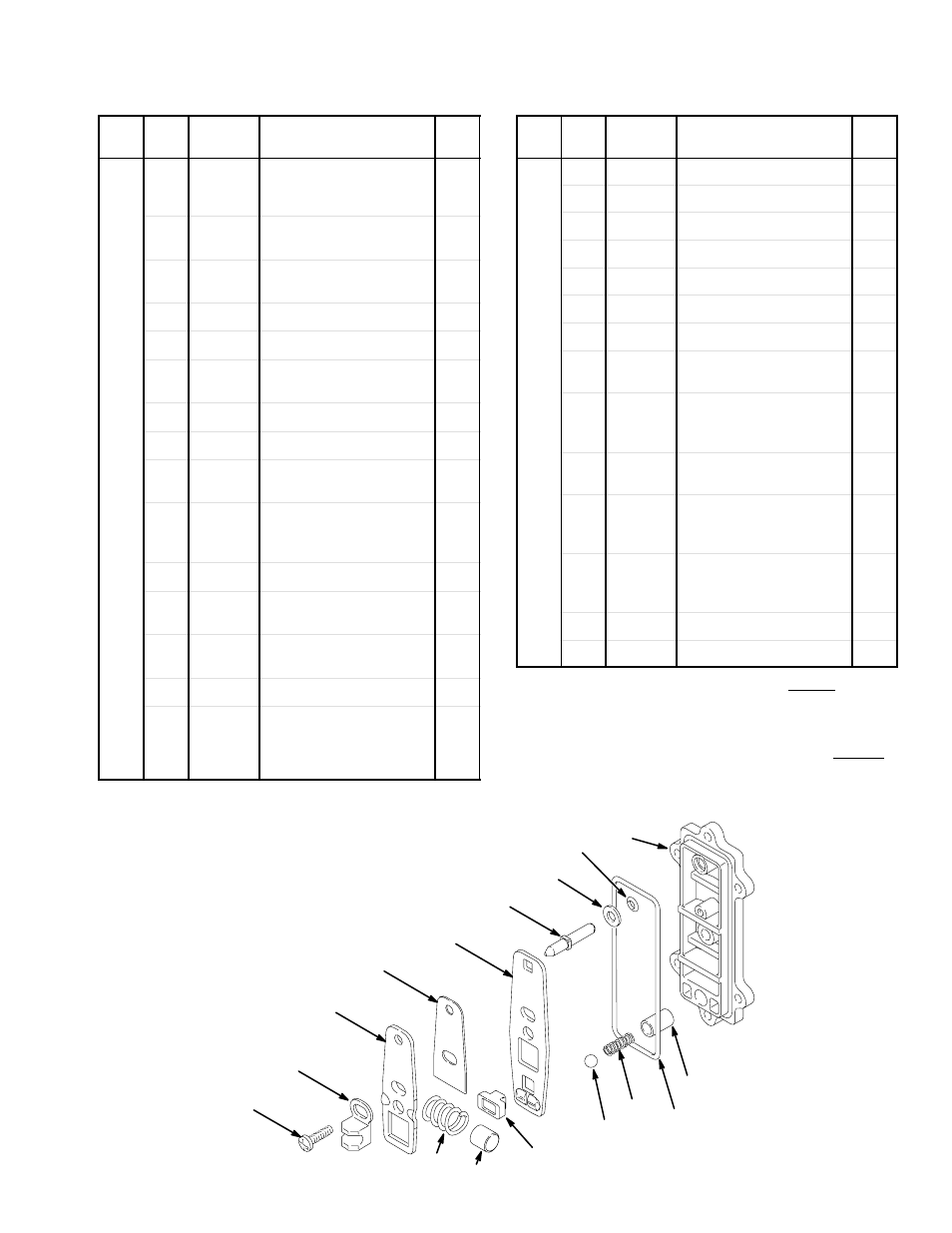

01431A
{
