Dock Edge + Stationary Dock - Manual (Page 2)

Quantity Required (4’ x 8’ or 8’ x 8’ sections)
Description Product # 4 x 8 Dock 8 x 8 Dock 4 x 16 Dock 8 x 16 Dock
Joist Corner 95-122-F 24 24 56 56
Washer Plate 99-006-F 4 4 4 4
Corner Leg Holder 86-100-F 4 4 8 8
Side Leg Holder (optional) 86-101-F 4 4 8 8
Corner Leg Brace Holder 87-107-F 4 4 8 8
Side Leg Brace Holder 93-105-F 4 4 8 8
Adjustable Leg Brace Set 89-101-F 6 6 12 12
Leg Pipe 6’8” 93-168-F 4 4 8 8
Bottom Pad 94-102-F 4 4 8 8
Base Plate 86-102-F May be used in combination with or in place of Bottom Pad 94-102-F
Pipe cap 91-111-F 4 4 8 8
Chain Retainer 99-013-F 2 (Use at outer most end of dock structure up to 16’ & every 16’ thereafter)
Backer Plate 87-122-F 8 8 16 16
Hardware Fastener Kit 85-150-F 5 6 10 12
Connector Hinge* 86-103-F 2 2 2 2
Corner Plate** 86-104-F 2 2 2 4
* Connector Hinges used for between-dock and shore-to-dock or ramp connections and not required for individual dock sections
** Corner plate hardware to be used at dock-to-shore connection of dock where leg support is not required
Hardware Requirements for other dock sizes
D Doocckk A Acccceessssoorriieess
Spot Protection
Bumper Profile
Solar Lighting
Ladder
Corner Bumper
Cleats
Dock Bumper Wheels
86-100-F
Corner Leg Holder.
Mounts on inside corner of frame-
work.
86-101-F
Side Leg Holder. Can
be mounted inside or outside of the
dock frame.
86-103-F Connector Hinge. Used
to join dock sections or a fixed ramp
to the dock at varying angles.
Includes hinge pin.
86-104-F Corner Plate. Used on
inside corners for increased strength
and where a leg pipe is not installed/
necessary.
87-107-F Corner Leg Brace
Holder. Use when attaching an
89-101-F Leg brace from corner to
side legs for stability.
87-122-F
Backer Plate. Prevents
pipe from deforming wood causing
bolt loosening and dock shifting.
89-101-F
Leg Brace Set. Extends
up to 72”. Use with Leg Brace
Holders to connect legs for stability.
91-111-F
Leg Cap. Use to cover
raw leg pipe edges. Gives dock the
finishing touch.
93-105-F Leg Brace Holder. Use
with Leg Brace Set to connect leg
pipes for stability.
94-102-F
Bottom Pad. Use for
soft bottom applications. Allows leg
pipe to extend through to lake bed for
lateral support. Pointed corners.
95-122-F
Joist Corner. Used to
reinforce stringer joints.
5 1/4 ”
2 1/4 ”
5 1/4 ”
5 1/2 ”
5”
5 7/8 ”
5 1/4 ”
5 7/8 ”
5 7/8 ”
5 1/4 ”
4 3/4 ”
5 1/4 ”
5 1/4 ”
2”
2 1/2 ”
2 1/2 ”
5 1/4 ”
2 1/4 ”i.d.
2 1/2 ”
1 1/8 ”
11”
25”
1”
1 1/4 ”
4 3/4 ”
1 1/4 ”
86-102-F
Base Plate. Used as a
footing. May be bolted to a 2” x 6”
piece of lumber and joined to an
adjacent base plate for stability.
2 1/4 ” i.d.
2 3/8 ”
5 1/4 ”
Carriage Bolts
Deck Screws
Lock Washers
87-122-F
Backer Plate
87-122-F
Backer Plate 86-104-F
Corner Plate
86-100-F
Corner Leg
Holder
89-101-F
Leg Brace Set
87-107-F
Leg Brace Holder
93-168-F
Galvalume Leg Pipe
Attaching rolling wheels for dock insertion & removal
11
87-122-F
Backer Plate
PVC Bushing 91-111-F
Plastic Leg
Cap
86-101-F
Side Leg Holder
86-101-F
Side Leg Holder
Dock Wheel
PVC Bushing
Cotter Pin
22

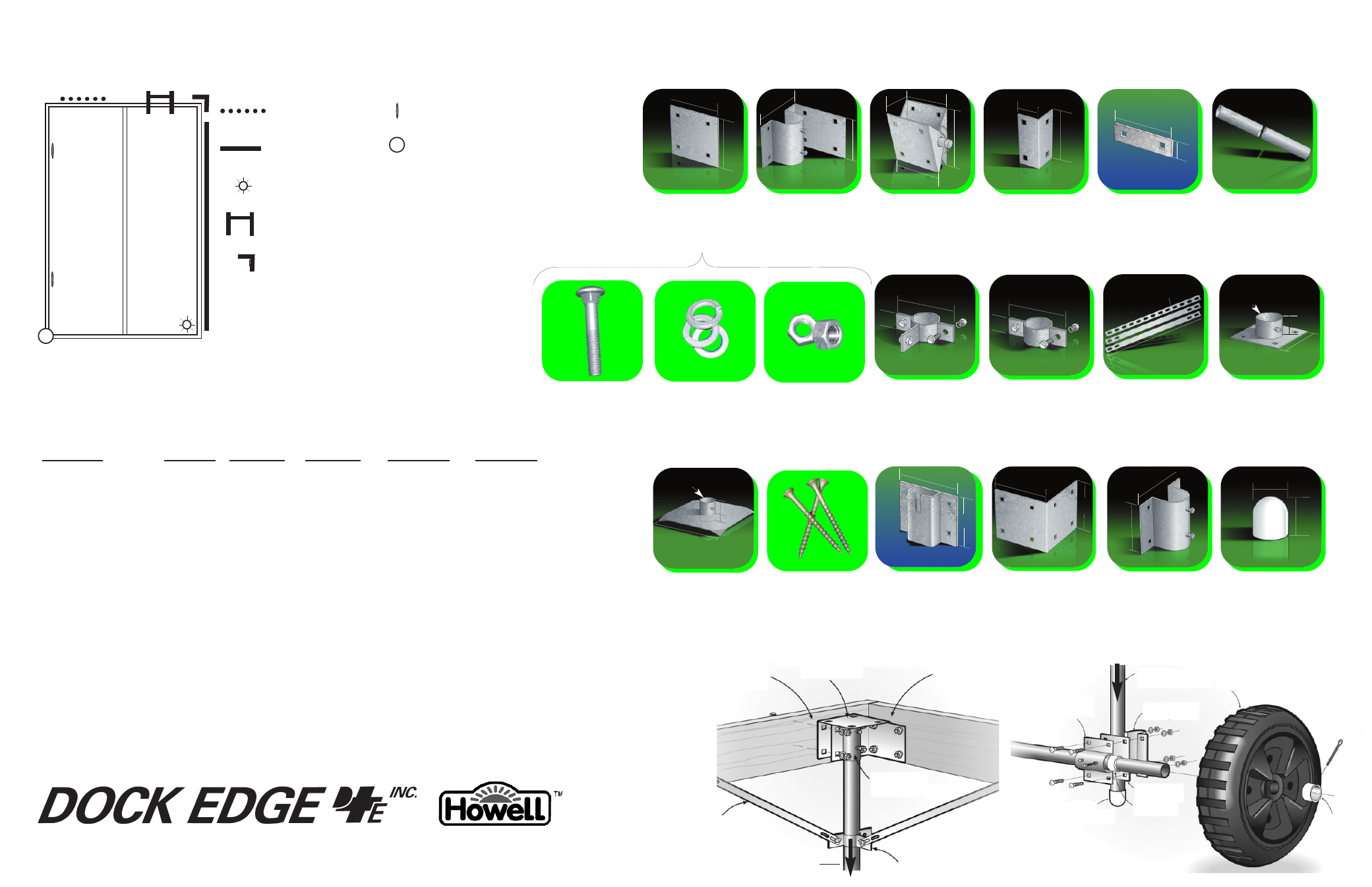

Dock Hardware and Fasteners you will need (referenced by item letter)
Optional Hardware
E
P
D
O
F
N
Q
M J
L K
R
G
Nuts
99-006-F Washer Plate.
5 1/4 ”
1 1/2 ”
A ALLSSO O A AV VA AIILLABLE
Mooring Whips
Life Ring Buoys
Portable Cleats
93-168-F (6’ 8”)
Galvalume Leg Pipe.
99-013-F Chain retainer. Mount on
outer dock face for easy access and
adjustment of anchorage.
5 1/4 ”
6”
H I
S
8 pieces each included in Fastener Kit 85-150-F
®
THE FINEST QUALITY DOCK HARDWARE AND MARINE ACCESSORIES www.dockedge.com
93-168-F
Galvalume Leg Pipe
