Aqua Bath IS3336SH - Manual

Accessible Series
Submittal Data
IS3336SH

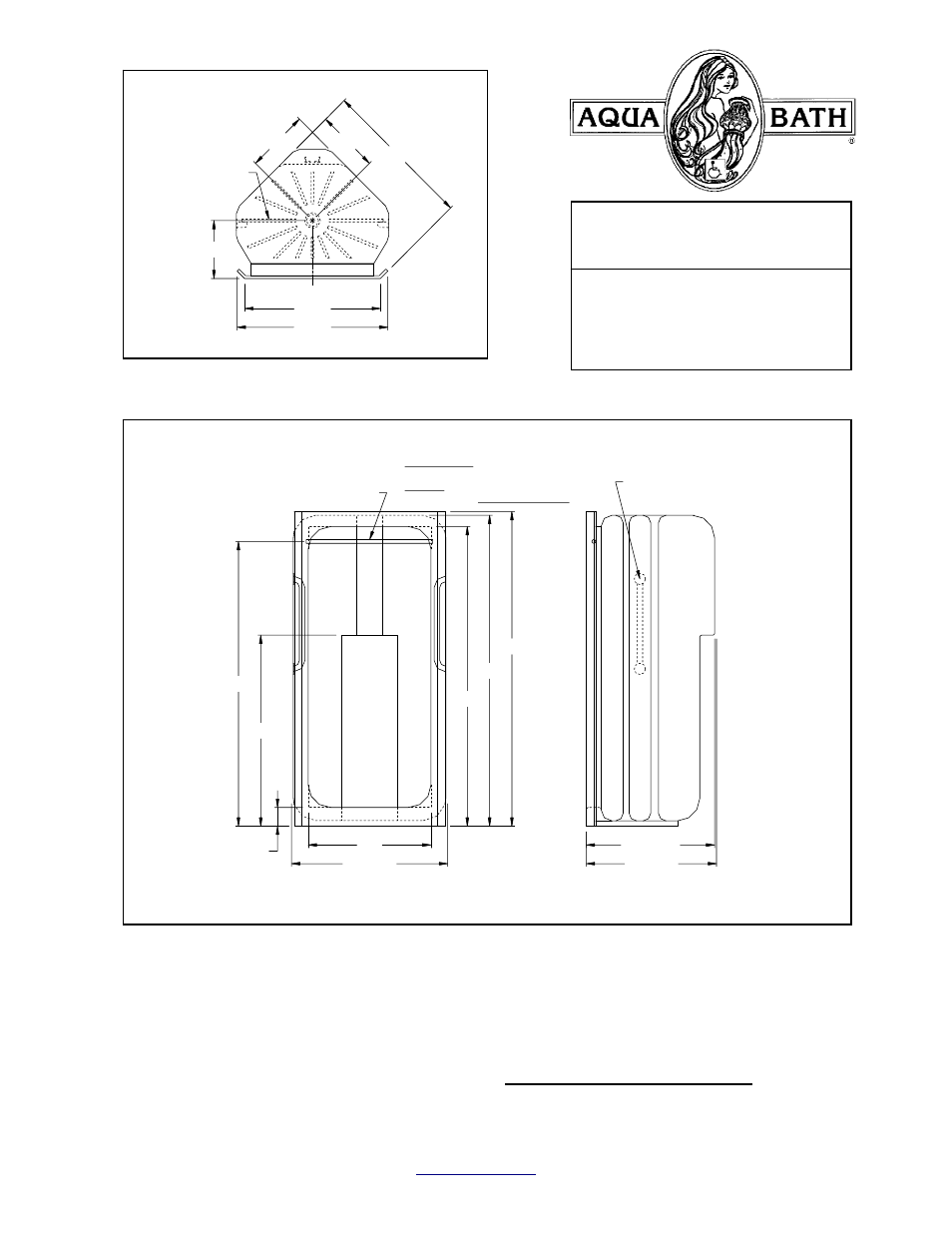

Top View - Left Hand Shown
For additional information, call the
Aqua Bath Customer Service
Department At 1-800-232-2284
36½"
40½"
C
L
16½"± 16½"±
15½"±
Ribbed Bottom For
Slip Resistance
33"
42" O.D.
76"
5" Threshold
80"
83"
84"
35" O.D.
34½" I.D.
24" Vertical Grab Bar
(2 Required)
51"
1" Dia. S.S. Curtain Rod
Important Note:
Aqua Bath Recommends The Use Of A
Slide Bar As An Accessory In The Unit Rather
Than The Use Of A Glide Bar / Glide Rail.
40½"
Front View and Right Side View
Note: Manufacturing Tolerance Of (±1/4”) Due To The Nature Of The Materials Used
Installation: Detailed installation instructions are contained in this catalog, and provided with each unit shipped.
The field installation instructions must be followed as directed or may void manufacturers warranty.
Reference installation instructions for IS3336SH.
Page IS-20
12/08
