Aqua Bath C6536BF-FUS 3/4 - Manual (Page 2)

1" Dia. S.S. Curtain Rod
Important Note:
Aqua Bath Recommends The Use Of A
Slide Bar As An Accessory In The Unit Rather
Than The Use Of A Glide Bar / Glide Rail.
31¾" x 35"
Grab Bar
10" ADA Control Area
27"
¾" Threshold
34¾"
74¾"
¾" Threshold
24¾"
18¾"
36¾"
78¾"
81¾"
82¾"
60" I.D. 36" I.D.
37" O.D. 65" O.D.
34" L-Shaped Fold-Up Seat
30"
60" I.D.
36"
I.D.
Ribbed Bottom For Slip Resistance
18"
For additional information, call the
Aqua Bath Customer Service
Department At 1-800-232-2284

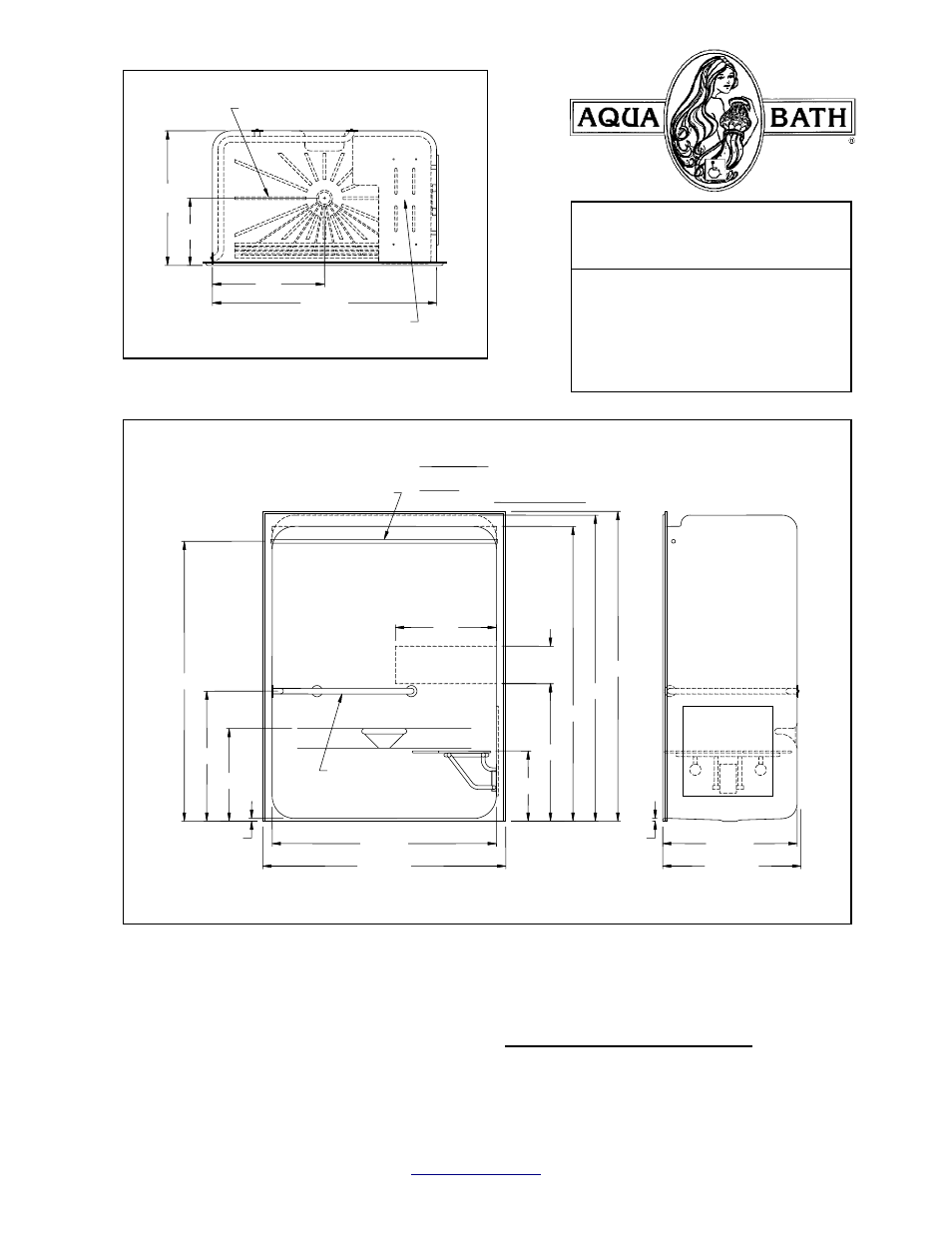

Top View - Right Hand Shown
Care Series
ADA Compliant
Submittal Data
C6536BF-FUS 3/4"
Front View and Right Side View
Note: Manufacturing Tolerance Of (±1/4”) Due To The Nature Of The Materials Used
Installation: Detailed installation instructions are contained in this catalog, and provided with each unit shipped.
The field installation instructions must be followed as directed or may void manufacturers warranty.
Reference installation instructions for C6536BF 3/4".
ADA states that the threshold must be flush with the finished floor. Because of the threshold height,
the unit can either be installed in a pit or the finished floor can be floated to comply with ADA.
Page C-8
10/08
