Aqua Bath C6536BF-FUS-RS 2 User Manual

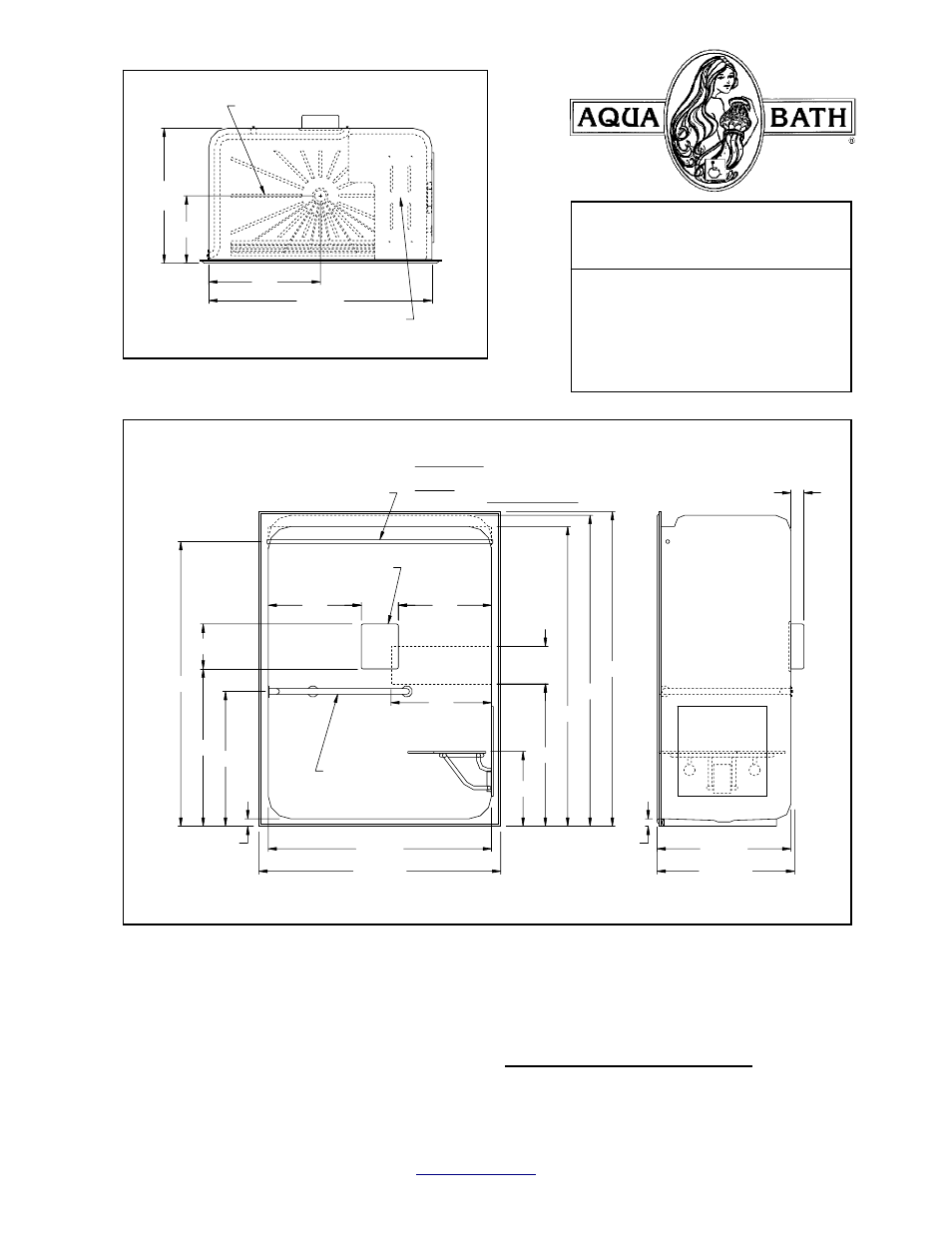

Submittal data, Care series, Top view - right hand shown

Care Series
ADA Compliant
Submittal Data
C6536BF-FUS-RS 2"
Top View - Right Hand Shown
For additional information, call the
Aqua Bath Customer Service
Department At 1-800-232-2284
60" I.D.
36"
I.D.
Ribbed Bottom For Slip Resistance
30"
18"
34" L-Shaped Fold-Up Seat
42"
76"
2" Threshold
20"
38"
80"
83"
84"
60" I.D.
65" O.D.
31¾" x 35"
Grab Bar
36" I.D.
1" Dia. S.S. Curtain Rod
Important Note:
Aqua Bath Recommends The Use Of A
Slide Bar As An Accessory In The Unit Rather
Than The Use Of A Glide Bar / Glide Rail.
2" Threshold
10"
ADA Control Area
27"
25"
10"
Acrylic Soap
Dish Insert
25"
12"
3½" I.D.
4" O.D.
36"
37" O.D.
Front View and Right Side View
Note: Manufacturing Tolerance Of (±1/4”) Due To The Nature Of The Materials Used
Installation: Detailed installation instructions are contained in this catalog, and provided with each unit shipped.
The field installation instructions must be followed as directed or may void manufacturers warranty.
Reference installation instructions for C6536BF 2".
ADA states that the threshold must be flush with the finished floor. Because of the threshold height,
the unit must be installed in a pit to comply with ADA.
