Aqua Bath C6530TD 2 - Manual

Care Series
ADA Compliant
Submittal Data

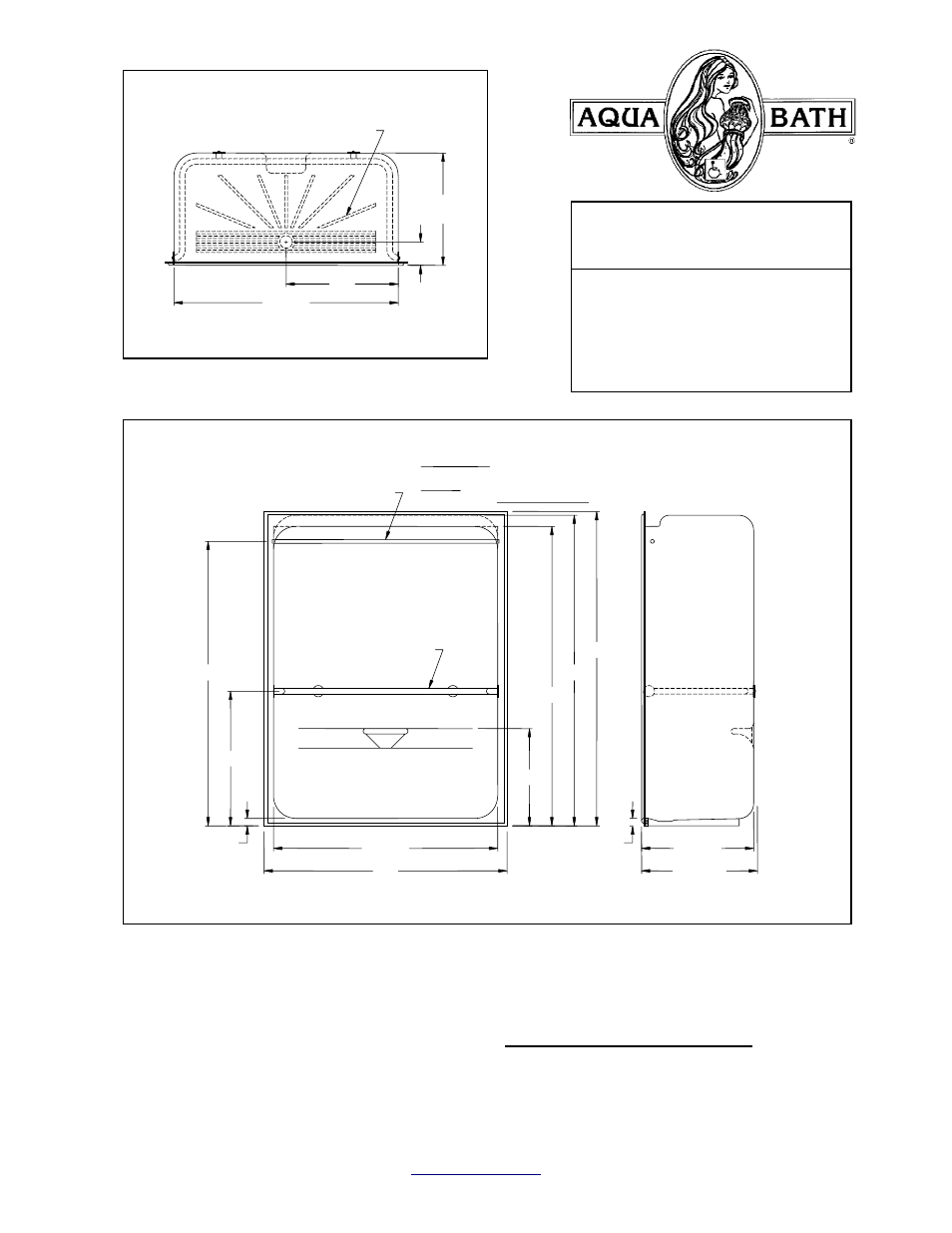

C6530TD 2"
Top View - Right Hand Shown
For additional information, call the
Aqua Bath Customer Service
Department At 1-800-232-2284
30"
I.D.
60" I.D.
Ribbed Bottom For Slip Resistance
30"
6¼"
60" I.D.
65"
36"
76"
26"
80"
83"
84"
31" O.D.
30" I.D.
25¾" x 55½" x 25¾"
Grab Bar
1" Dia. S.S. Curtain Rod
Important Note:
Aqua Bath Recommends The Use Of A
Slide Bar As An Accessory In The Unit Rather
Than The Use Of A Glide Bar / Glide Rail.
2" Threshold 2" Threshold
Front View and Right Side View
Note: Manufacturing Tolerance Of (±1/4”) Due To The Nature Of The Materials Used
Installation: Detailed installation instructions are contained in this catalog, and provided with each unit shipped.
The field installation instructions must be followed as directed or may void manufacturers warranty.
Reference installation instructions for C6530BF 2".
ADA states that the threshold must be flush with the finished floor. Because of the threshold height,
the unit must be installed in a pit to comply with ADA.
