Aqua Bath C4136BF-FUS 3/4 - Manual (Page 2)

1" Dia. S.S. Curtain Rod
Important Note:
Aqua Bath Recommends The Use Of A
Slide Bar As An Accessory In The Unit Rather
Than The Use Of A Glide Bar / Glide Rail.
36" I.D.
41" O.D.
18¾"
40¾"
74¾"
¾" Threshold
78¾"
28¾"
34¾"
6"
18"
82¾"
81¾"
C
L
18" Grab Bar
31¾" x 15¾"
36¾"
¾" Threshold
4"
18"
37" O.D.
36" I.D.
ADA Control Area
46¾"
Grab Bar
36" I.D.
18"
36"
I.D.
18"
34" L-Shaped
Fold-Up Seat
Ribbed Bottom For
Slip Resistance
For additional information, call the
Aqua Bath Customer Service
Department At 1-800-232-2284

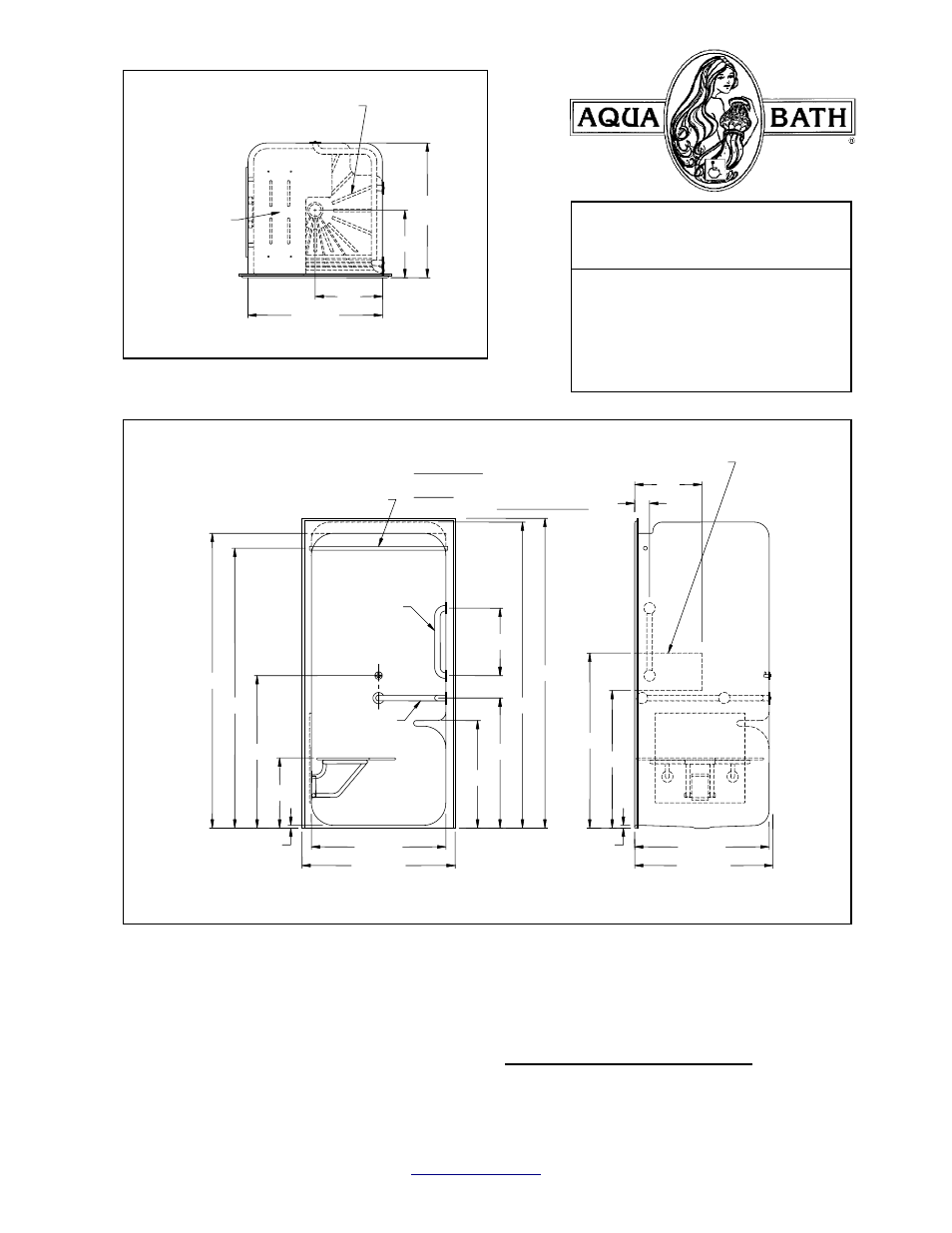

Top View - Right Hand Shown
Care Series
ADA Compliant
Submittal Data
C4136BF-FUS 3/4"
Front View and Right Side View
Note: Manufacturing Tolerance Of (±1/4”) Due To The Nature Of The Materials Used
Installation: Detailed installation instructions are contained in this catalog, and provided with each unit shipped.
The field installation instructions must be followed as directed or may void manufacturers warranty.
Reference installation instructions for C4136BF-FUS 3/4".
To be ADA compliant, top of threshold can not exceed 1/2" above the finished floor material.
Page C-2
10/08
