FIGURES & TABLES

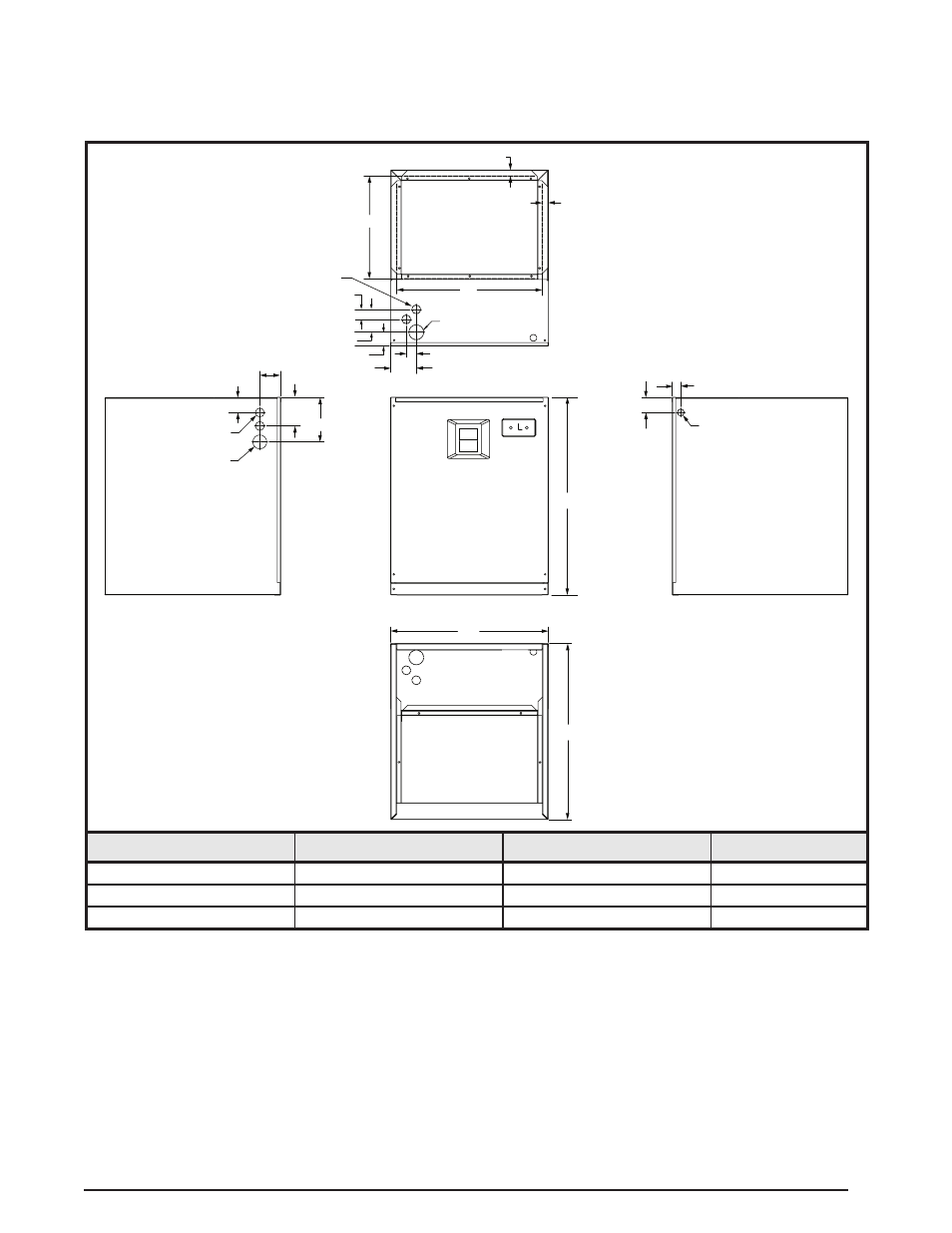

Figure 8. Physical Dimensions
(HMB**A*1E, HMB**X*1E, & HMB**V*1E Series Air Handlers)
Furnace Size (BTUH) Dimension A Dimension B Dimension C
24K & 30K 12-3/4 24-3/4 14-1/4
36K & 42K 12-3/4 24-3/4 17-1/2
48K & 60K 18-1/4 27-1/2 21
"B"
"A"
12 7/8
3/4 TYP.
1 3/4
Ø 1 7/8 K.O.
3 1/4
1 1/4
"C"
22”
1”
1 7/8
3 1/2
5 1/2
2 5/8
Ø1 1/8” K.O.
(TYP.) 1 1/4
2 7/8
TOP
VIEW
Ø 7/8 K.O.
1 7/8
Ø1 1/8” K.O.
Ø1 3/4” K.O.
3/4 TYP.
FRONT
VIEW LEFT SIDE RIGHT SIDE
BOTTOM
VIEW
