APG Cash Drawer Flip-Top - Manual (Page 2)

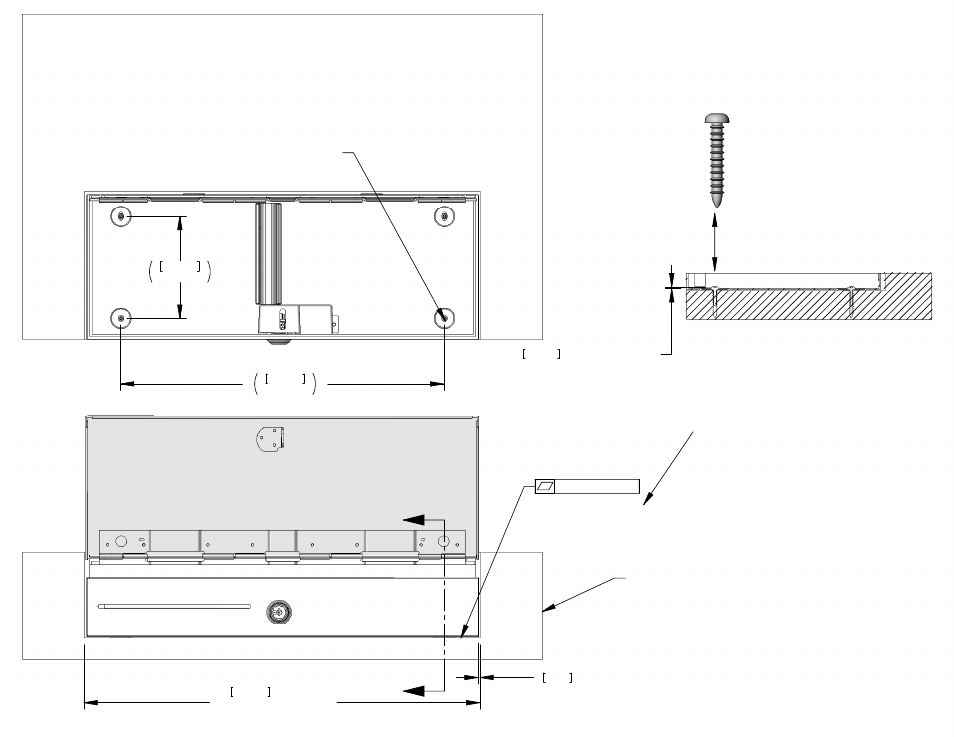

14.92in
379mm
4.72in
120mm
RECOMMENDED SCREW
ST 3.5 PHILLIPS PAN HEAD
SELF TAPPING SCREW
4 REQUIRED
4X MOUNTING SCREWS
.078in MINIMUM
CLEARANCE REQUIRED
2mm
18.27in MINIMUM
CHECKSTAND OPENING
464mm
A
A
MOUNTING SURFACE
MUST BE FLAT
CHECKSTAND
.060 IN (1.52 mm)
.054in MAXIMUM HEIGTH
OF SCREW HEAD ABOVE
INSIDE BOTTOM OF CASE
1.4mm
SECTION A-A
Figure 4
M-23G-096-01 Rev F
NOTES:
ADJUST MOUNTING SURFACE TO ENSURE 1.
CASH DRAWER IS MOUNTED AS FLAT AND
LEVEL AS POSSIBLE.
ENSURE .078 IN [2 mm] MINIMUM CLEARANCE AT 2.
SIDES OF CASH DRAWER FOR PROPER
LID OPERATION.
THE EMBOSSES ON THE REAR OF THE CASH 3.
DRAWER ARE PROVIDED TO ENSURE
CLEARANCE AT REAR OF CASH DRAWER FOR
PROPER LID OPERATION.
