Australian Monitor Zone Mix 3 - Manual (Page 7)

INSTALLATION SERIES
Australian Monitor
7

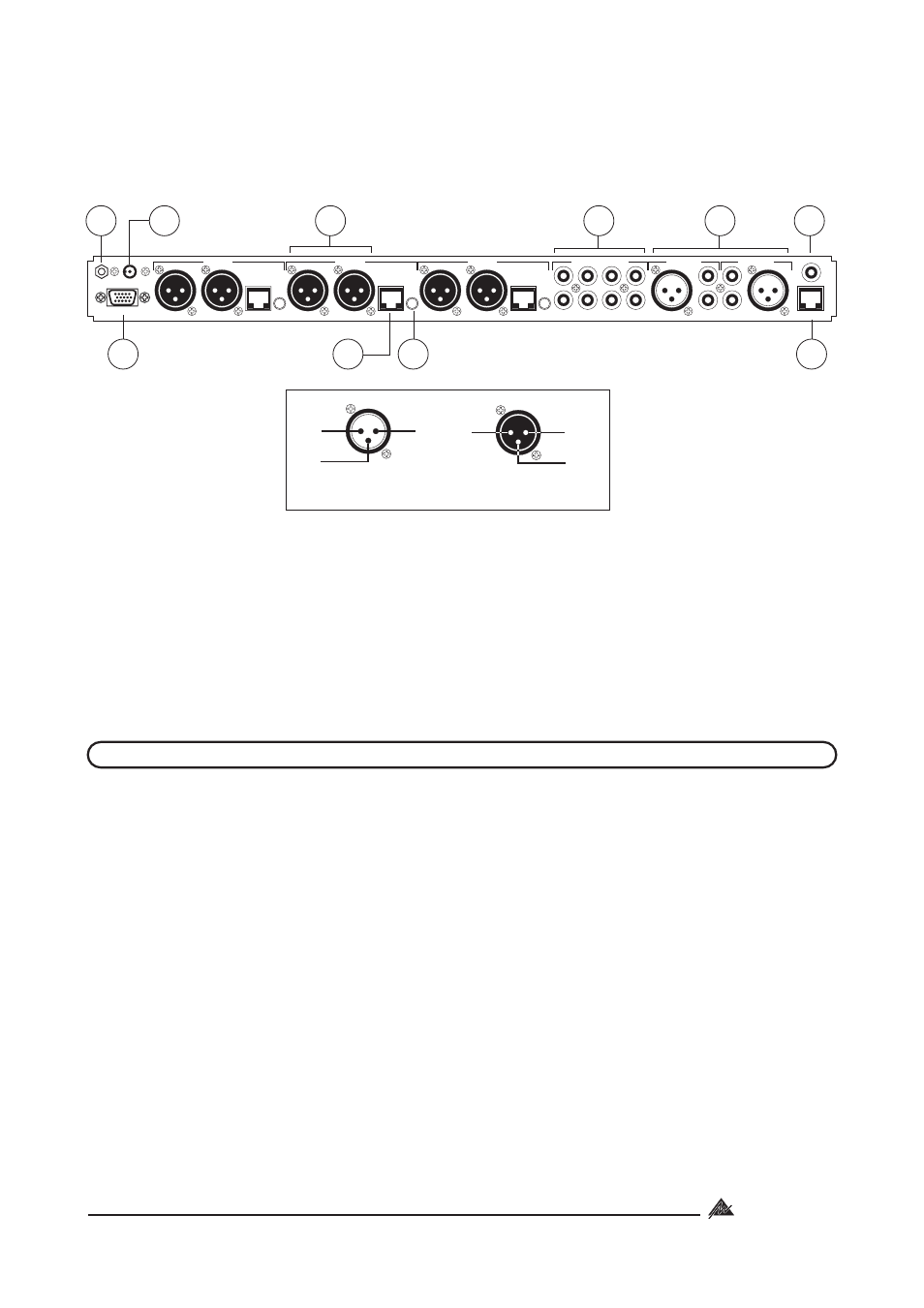

3. BACK PANEL
1. SUM INPUT
2. PAGE INPUT
3. MIC/LINE INPUTS
4. PROG INPUTS
5. ZONE OUTPUTS
This RCA line level input is an all zone priority input. See Functional Notes on page 9. The
volume control is preset internally and can be adjusted. See Internal Adjustments on page
10. It can be used to receive an emergency evacuation tone or similar signal.
This RJ45 connector accepts a CAT5 cable from the optional ZM3M Paging Station. See
Paging Station on page 16 for more details.
There are two MIC/LINE inputs. The balanced XLR inputs accepts mic level signals. The
dual RCA inputs accept line level inputs and are summed to mono internally. Gain and EQ
are controlled from the front panel.
These inputs supply 15V phantom power, unless internally disabled. See Internal
Adjustments on page 10.
These inputs may have priority over program inputs, if this feature is enabled. See Internal
Adjustments on page 10 and Functional Notes on page 9.
There are four program inputs. These are stereo RCA line level inputs. Trim is controlled from
the front panel. LINE4 is a priority input, if this feature is enabled. See Internal Adjustments
on page 10 and Functional Notes on page 9
The zone outputs are configured as stereo left and right as default but can be internally
changed to mono.
1
2
3
PIN 2
HOT
+
PIN 3
COLD
-
PIN 1
GND
PIN 2
HOT
+
PIN 3
COLD
-
PIN 1
GND
FEMALE XLR MALE XLR
4
LEFT RIGHT
REMOTE
ENABLE
ZONE 3
LINE 3 LINE 2 LINE 1
PROGRAM SOURCE
PAGE MIC
MIC/LINE 2
LINE 4
SUM IN
LINE2 LINE1 MIC2 MIC1
MIC/LINE 1
ACPOWER EARTH
LINK
LEFT RIGHT
REMOTE
ENABLE
ZONE 2
LEFT RIGHT
REMOTE
ENABLE
ZONE 1
5
6 7 8
10 9
NOTE: These are Ethernet connections. NOT
