INSTALLATION SERIES

Australian Monitor

SECTION D

SECTION E

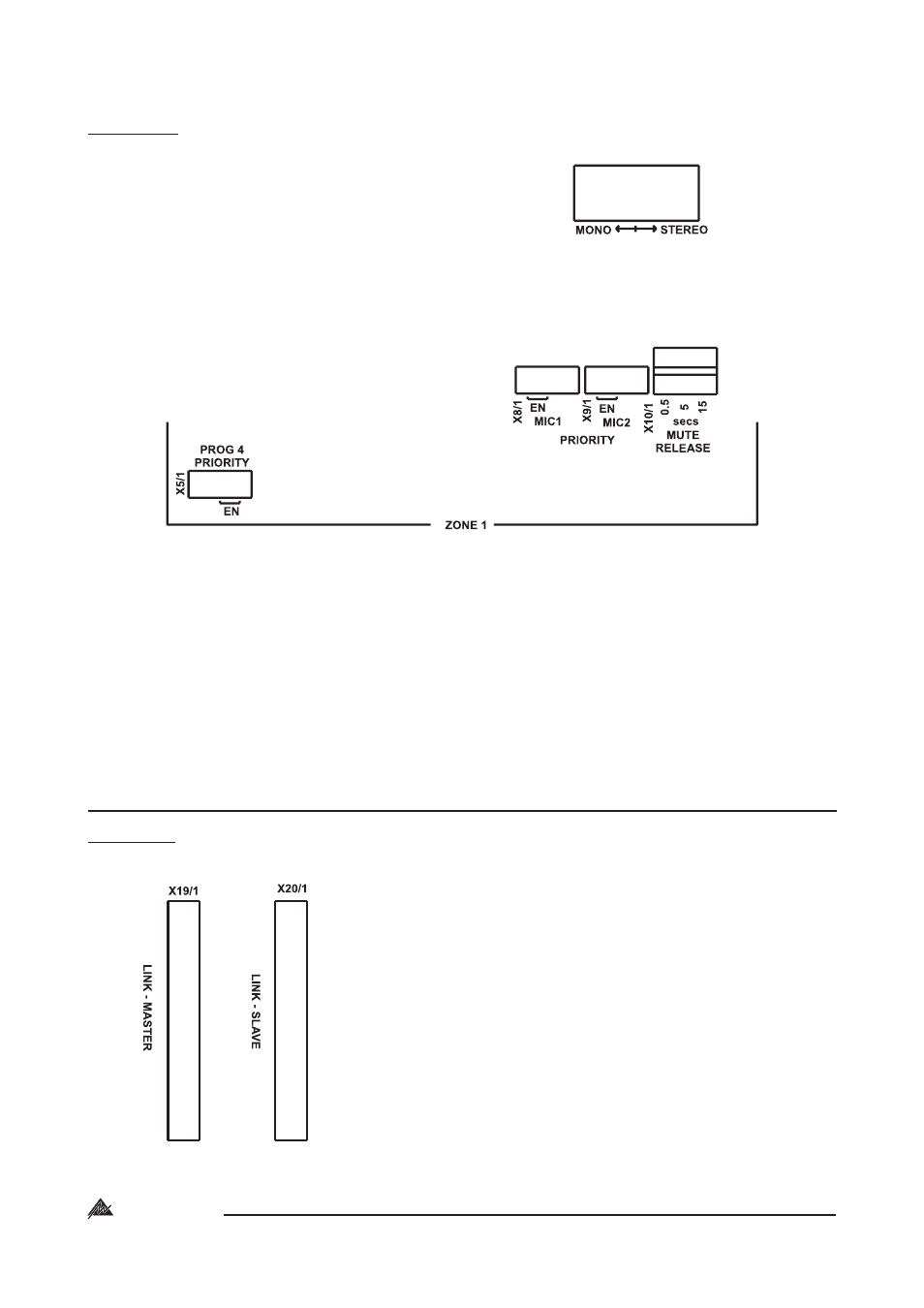

This section is repeated 3 times (one per zone).

MIC1 refers to MIC/LINE1 input, and MIC2 refers to MIC/LINE2 input.

Default is EN (enabled).

Priority Release Time jumper socket - 0.5,5,15 sec. Default is 5sec.

Program 4 Priority jumper socket - Default is EN (enabled).

Output Mode switch - Mono/Stereo. Default is Stereo.

See Functional Notes on page 9 for explanation of priority functions.
PRIORITY
MIC1, 2

MUTE RELEASE

PROG 4 PRIORITY

MONO-STEREO

These two sockets are used when linking two
ZoneMix3 units.
See Functional Notes on page 9 for explanation of
linking.
All input sources are connected to the Master unit. In
this unit the linking header should be plugged into
the connector labelled LINK-MASTER.
In the other (Slave) unit, the linking header should be
moved to the connector labelled LINK-SLAVE.
By default, all units ship as Masters.
