PAGE 8 AMPRO PM12 & PM16 INSTALLATION & OPERATION MANUAL

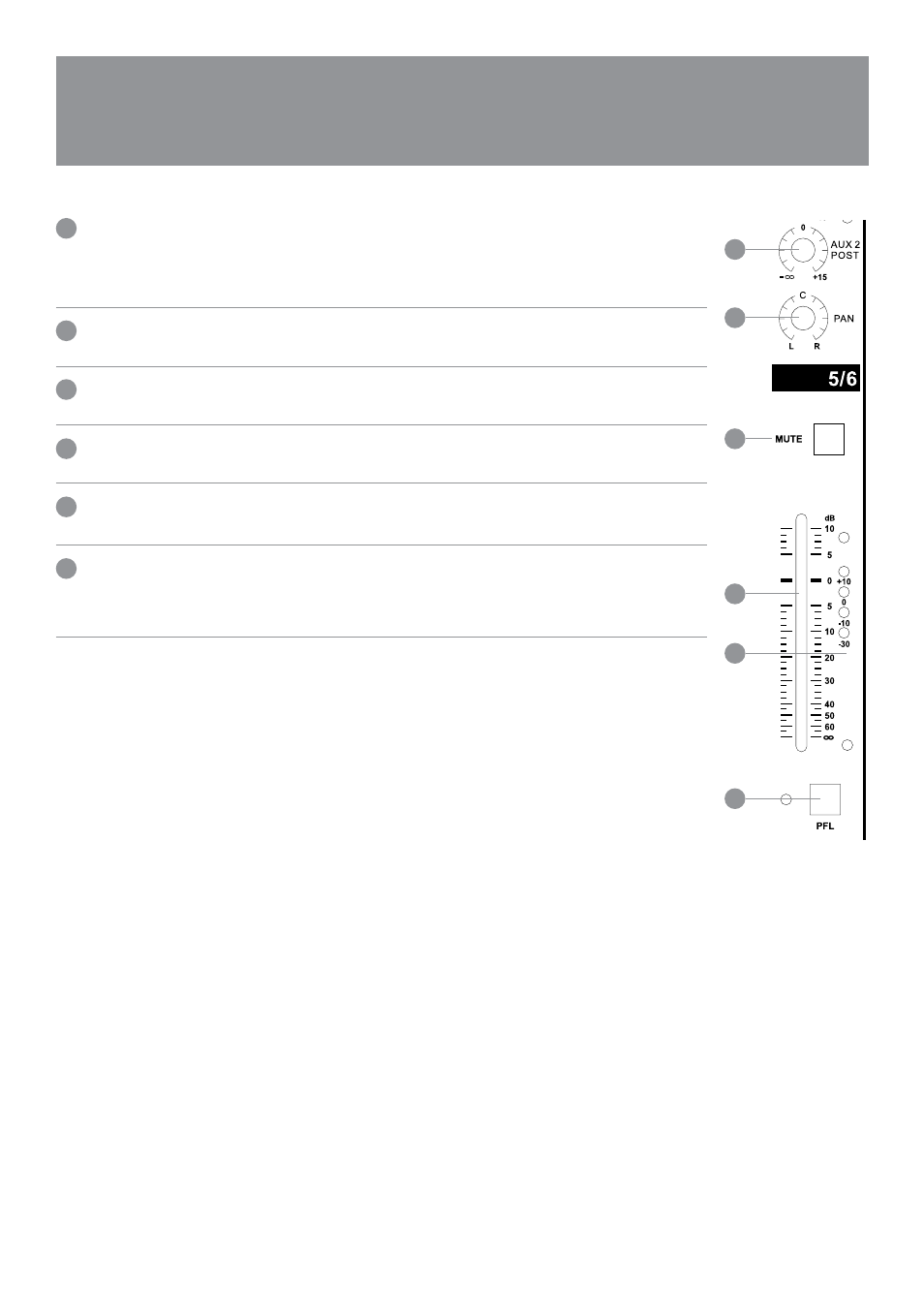

STEREO CHANNEL SECTION
AUX 2
This is derived after the EQ and channel fader (POST FADER, POST EQ), and follows any changers in fader level. Normally used to
drive effects processing units which are fed back into the mixer and which must track the channel fader. The AUX feed is a mono
sum of both left and right audio signals.
PAN
Post fader and routes signal proportionally to the left and right outputs.
MUTE
Press to mute the channel.
CHANNEL FADER
Adjusts the level of the signal for the main left/right mix. Normal operating position is at the “O” mark.
SIGNAL PRESENCE METER
4 LEDs indicate a signal level at the insert return point, pre-fader.
PFL
Monitor the channel with the PFL button. When the PFL switch is depressed, the adjacent LED will illuminate indicating PFL is active. The
signal is routed to both the main signal presence meters and the headphone output, allowing both visual and audible monitoring of the
signal.
