PAGE 10

AMPRO PM12 & PM16 INSTALLATION & OPERATION MANUAL

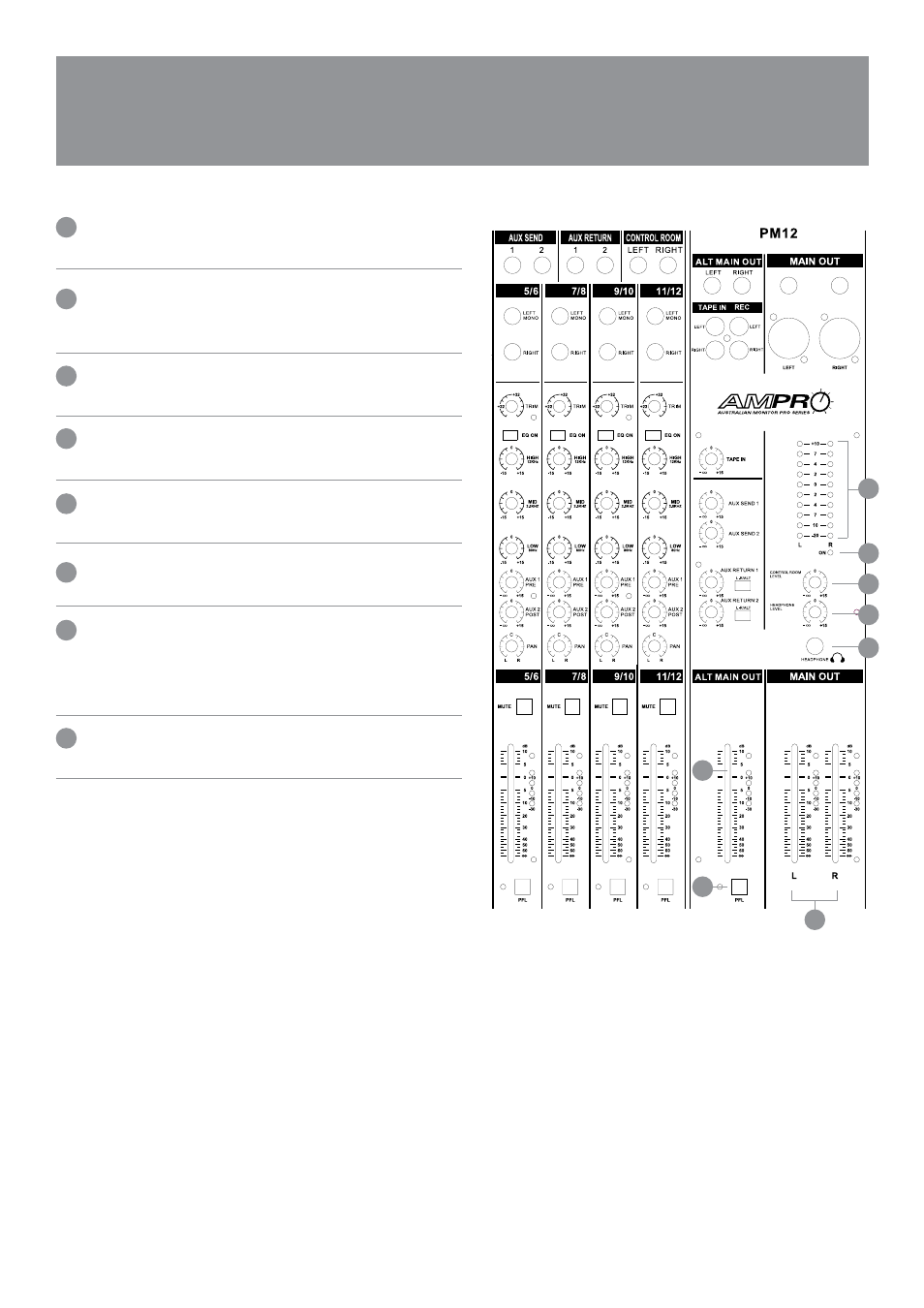

MASTER SECTION

MAIN LEVEL INDICATOR

Displays the output levels of the left and right mix.


POWER LED

The POWER LED is illuminated when AC power is available and the mixer is
turned on.

CONTROL ROOM LEVEL

Controls the level to the CONTROL ROOM monitors.

HEADPHONE LEVEL

Controls the level of the headphone output.

PHONE JACK

Stereo jack for monitoring each channel via PFL or L/R busses signal.

ALT MAIN OUT FADER

Adjusts the ALT MAIN output level.

PFL

Monitor the channel with the PFL button. When the PFL switch is depressed, the adja-
cent LED will illuminate indicating PFL is active. The signal is routed to both the main
signal presence meters and the headphone output, allowing both visual and audible
monitoring of the signal.

MAIN FADER (LEFT/RIGHT)

Adjustment of the main left/right output levels.
