Australian Monitor EQ302 - Manual (Page 7)

1 IEC Mains power socket and fuse.
2 Voltage Select
Voltage selection switch set at either 115 V or 230 V. Please ensure that your
local voltage has been selected before applying power to the unit. Refer to
Power Requirements section.
3 Input Channel A
A high impedance (10 k Ω ) input is provided via either, XLR, 6.35 mm TRS
jack or Phoenix screw terminals. All the inputs are electronically balanced and
parallel connected.
4 Output Channel A
A low impedance output is provided via either, XLR, 6.35 mm TRS jack and
Phoenix screw terminals. All the outputs are electronically balanced and parallel
connected.
5 Input Channel B
A high impedance (10 k Ω ) input is provided via either, XLR, 6.35 mm TRS
jack or Phoenix screw terminals. All the inputs are electronically balanced and
parallel connected.
6 Output Channel B
A low impedance output is provided via either, XLR, 6.35 mm TRS jack and
Phoenix screw terminals. All the outputs are electronically balanced and parallel
connected.
1 2 6 5 4 3
PAGE 7 EQ302 INSTALLATION AND OPERATION MANUAL

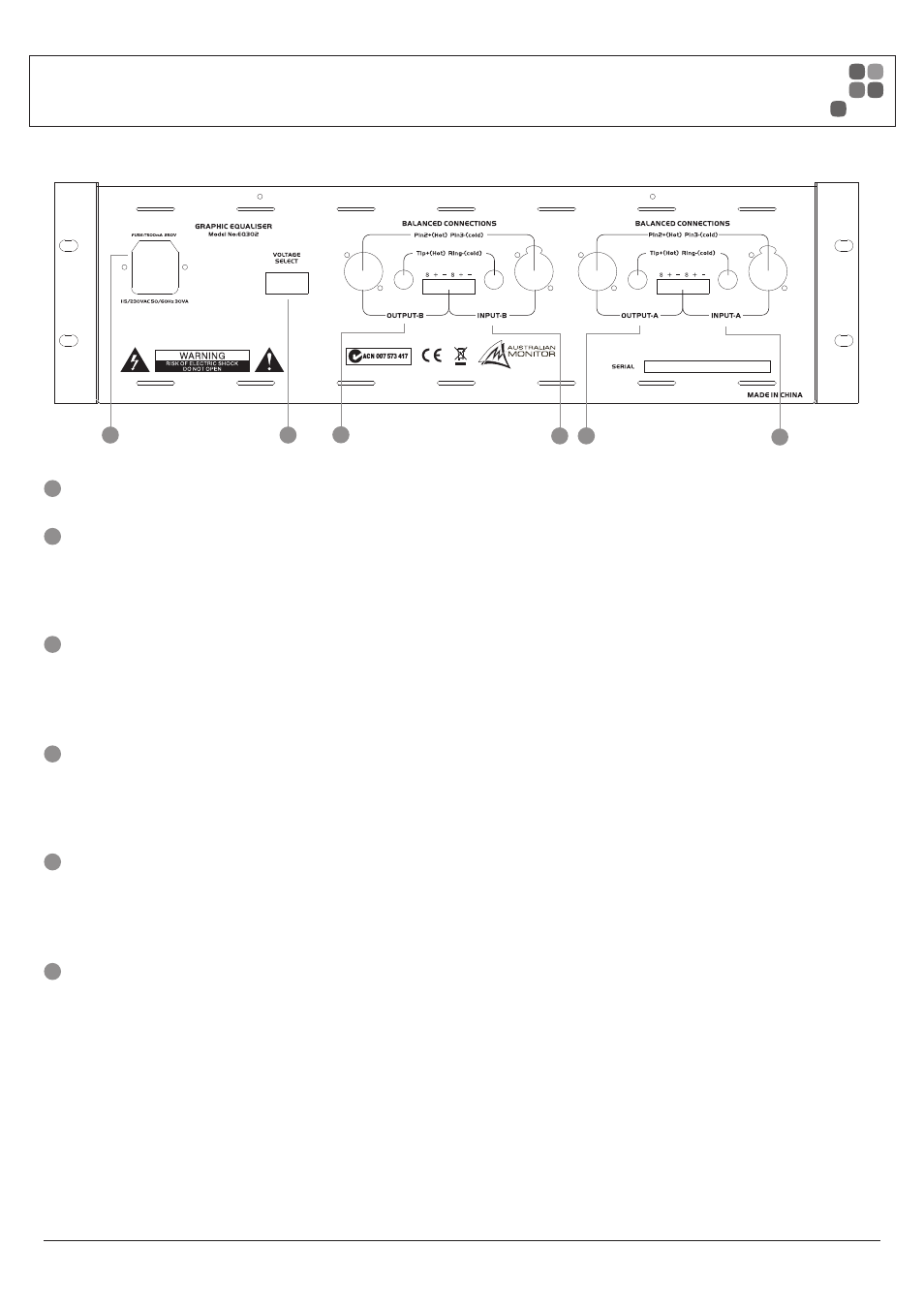

REAR PANEL
