Mittler Bros Machine & Tool 201-125-WBS 1/8” - Manual (Page 2)

\\Mbserver01\Engineering\Product\Product Documentation\201 Rolls\1-8 Wire Bead Instructionsl.doc Rev. 6.00 4/8/05 JEP
2
STEP #2
Install J-Channel Roll Set #201-081-J
(Male roll on top)

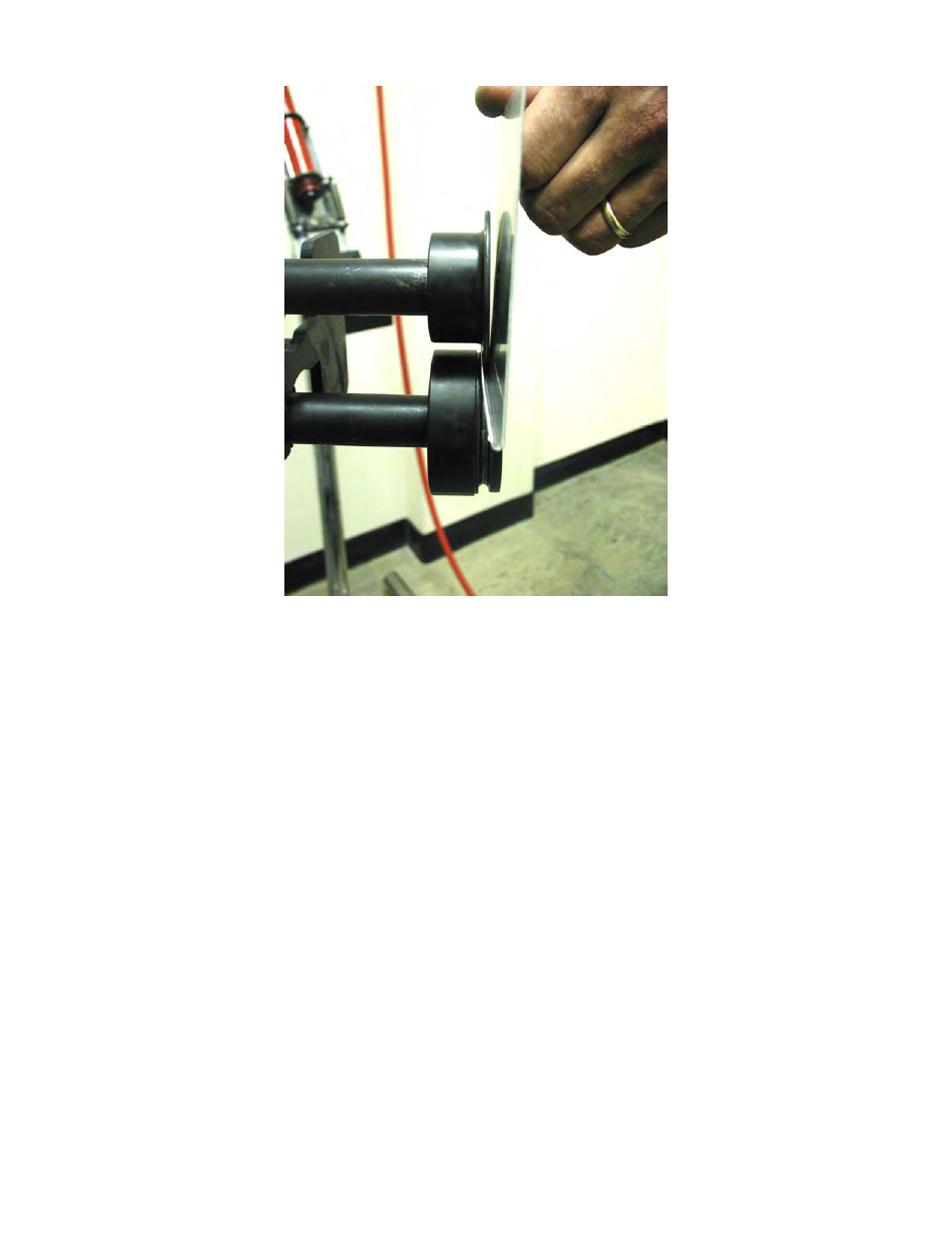

Hold metal as vertical as possible to upper male roll (see above)
Push edge of 90-degree flange against edge-guide stop in female roll
as metal travels through roll pinch point to form J-Channel
but leave flat outside surface
A second pass through the J-Channel rolls may help to create
the good shape required
