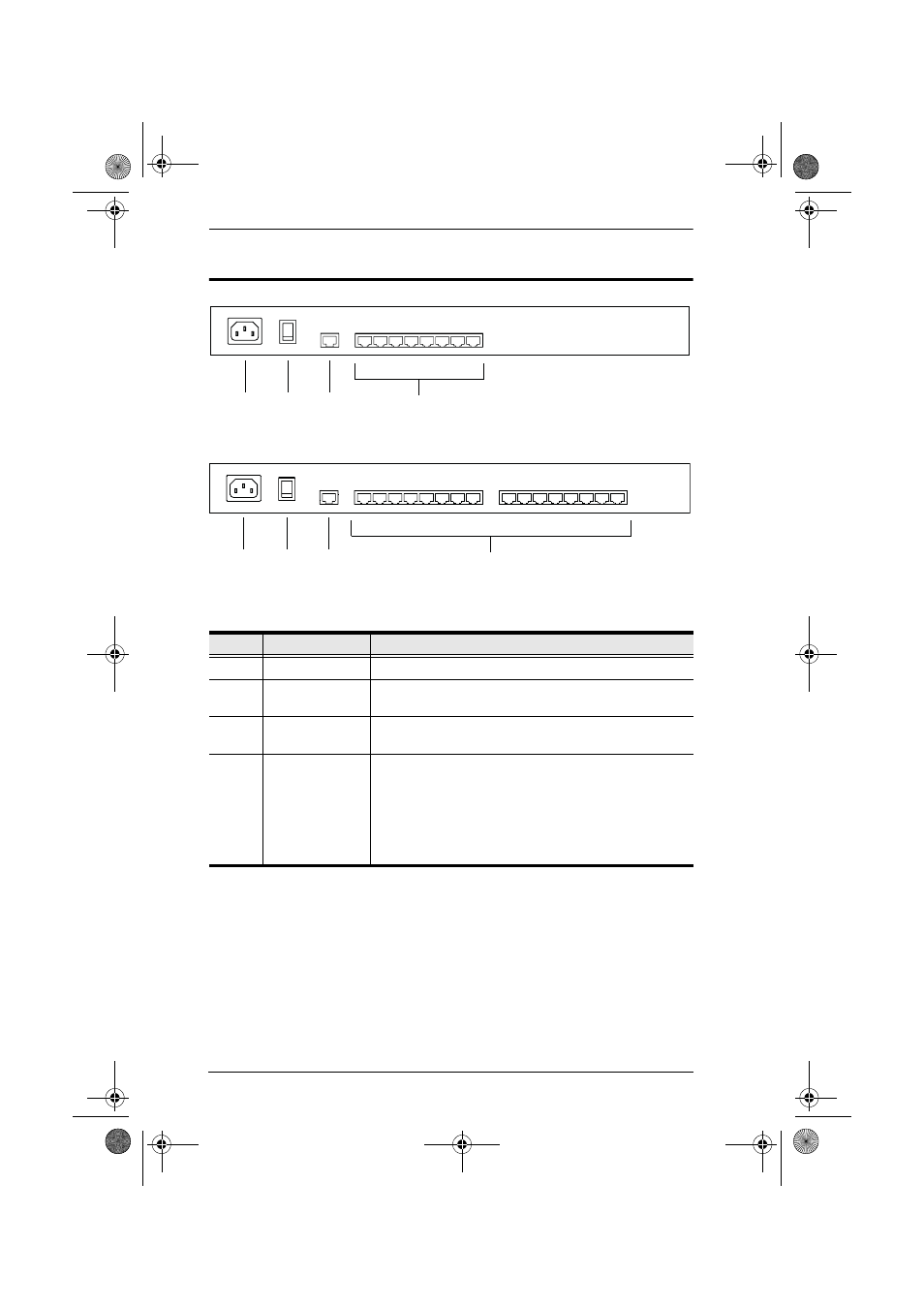

SN0108 / SN0116 Rear Panel (AC Power)
No.
Component
Description
1
Power Socket
The power cable from your AC source plugs in here.
2
Power Switch
This is a standard rocker switch that powers the SN0108
/ SN0116 on and off.
3
LAN Port
The Ethernet cable that connects the SN0108 / SN0116
to the Internet plugs in here.
4
Serial Ports
The Cat 5 cables that connect to the RJ45 to Serial
adapters plug in here. (See SN0108D / SN0116D PC
Installation Diagram:, page 14, and RJ-45 to Serial
Adapters, page 92.)
Note: RJ-45 to Serial adapters require a separate
purchase. To purchase RJ-45 to Serial adapters, contact
your dealer.
