11

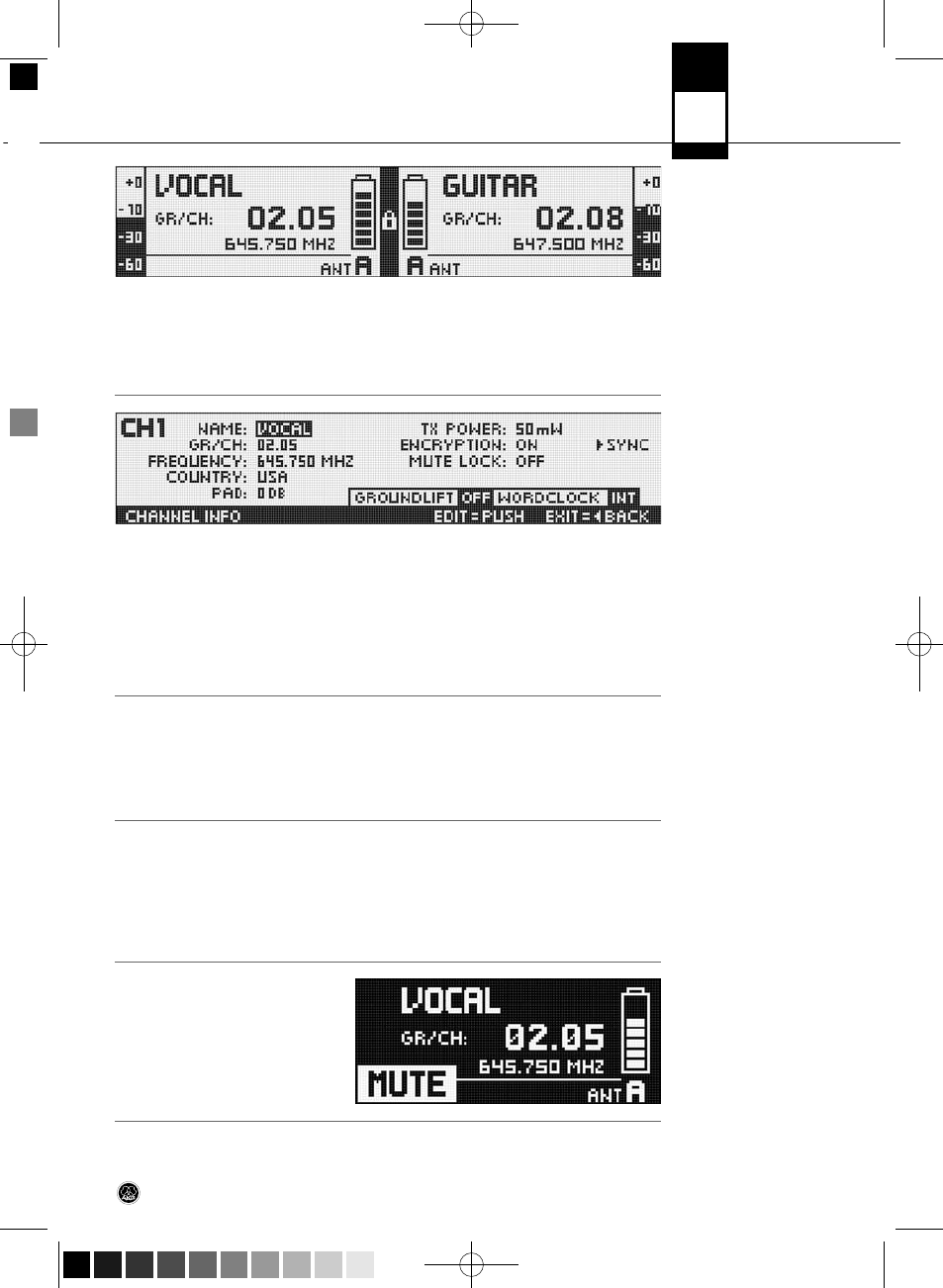

6 Display
Main Window
Channel Information
Window
Battery Status
Indication
Audio Meter (E)
MUTE Indication (F)
The general window shows all necessary parameters for operation. In addition to a freely-selectable
name, the current frequency, the current group and channel, you can check the audio level, the ac-
tive antenna, and the remaining use time of the transmitter battery. In case of a critical fault condi-
tion (audio mute, low battery, audio clip) you will see a warning message.
The Channel Information window provides a quick overview of the tuning parameters (group/chan-
nel, frequency, name, country, attenuation pad, transmission power, encryption, and mute lock). All
these parameters can be set and synchronized. The GROUNDLIFT and WORDCLOCK fields inidcate
the related current status.
• To call up the channel information window, simply push the CH1 or CH2 button from the gen-
eral window.
The battery symbols on the transmitter (C) and receiver (C) let you check the transmitter’s remain-
ing battery capacity at a glance. Each segment equals approximately 1 hour of remaining battery life.
If no battery voltage is detected or the information is invalid, no information is shown on the display.
Approximately 1 hour before the battery will be dead the “LOW BATT” warning appears and the LED
ring turns red.
The audio meter (E) indicates the audio output level of the receiver.
• To match the receiver’s output level to the connected mixer, you can adjust the level using the
GAIN parameter in the AUDIO menu.
The output level is not properly adjusted if the audio meter goes off-scale or the input on the con-
nected device is overloaded.
The audio output is muted. The status LED
ring (11) is lit red. Since power and the RF
section remain ON, no unwanted noise will
become audible from the sound system
when you mute the audio signal.
